210*210mm 0.5mm 10m3/H Sawdust Pellet Machine

210*210mm 0.5mm 10m3/H Sawdust Pellet Machine

  • High Light

    0.5mm sawdust pellet machine

    ,

    10m3/H sawdust pellet machine

    ,

    10m3/H tree shredder

  • Name
    Wood Sawdust Machine
  • Other Names
    Wood Grinder, Sawdust Machine
  • Type
    Double Shaft Shredder
  • Condition
    New
  • Warranty
    1 YEAR
  • Certification
    CE
  • Key Selling Points
    High Productivity
  • Roller Shaft Size
    420*420mm
  • Feed Port Size
    210*210mm
  • Weight
    3.5t
  • Place of Origin
    CHINA
  • Brand Name
    YaMei
  • Certification
    CE
  • Model Number
    YM-210
  • Minimum Order Quantity
    1 Set
  • Price
    $27,000.00 - $35,000.00 / Set
  • Packaging Details
    wood pallet
  • Delivery Time
    7-30 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    60 Sets per month

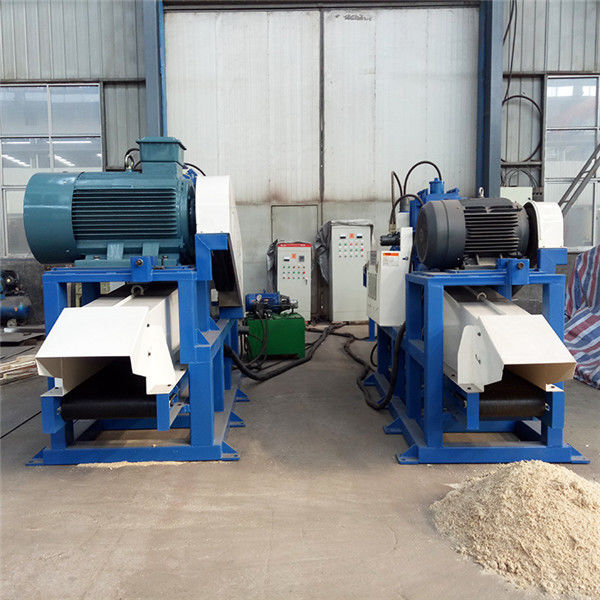

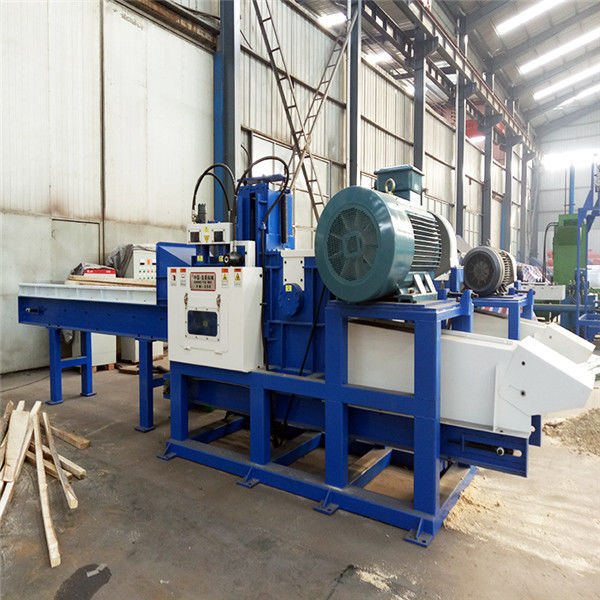

210*210mm 0.5mm 10m3/H Sawdust Pellet Machine

Double Shaft Wood Sawdust Machine Crushing Wood Paper Tube Rigid Plastics

Introduce:

Wood sawdust machine is also called wood grinder, sawdust machine, which can process all kinds of hardwood, waste wood, wood scraps, branches and forks, board edge materials, bark, bamboo, compression plate, building shell board, waste bamboo fence, construction waste wood, as well as hard plastic, large and small paper tubes, raw wood and so on. Compared with the previous sawdust machine, this machine has stable performance and high output It is safe, easy to operate, powerful and durable.



High efficiency new type wood sawdust machine is a large-scale sawdust crusher developed with imported equipment. It has the following characteristics, high output, dry, wet, hard and miscellaneous wood can be crushed. The new sawdust machine is strong and durable, easy to maintain, without screen, and can be crushed into 2-0.5mm sawdust at one time.



High efficiency new type wood sawdust machine is a new type of high-efficiency wood crushing equipment, which has introduced high-end technology at home and abroad, adopted the crushing mode of gear roller hydraulic force feeding, completely changed the problems of crushing wood, log, hardwood and difficult to crush with low output. The technology was introduced from Germany and improved on the basis of the original equipment, with large output, high quality, no screen and no pollution The full utilization of waste wood is also a solution to the problem of comminution and supply of wood particle raw materials.



Advantage:

1. Low energy consumption, high output, equipped with brand electrical appliances to ensure the production of equipment without worry.
2. The technology is mature, which solves the problem that large logs cannot be crushed.
3. There are four types of wood crushers: YM-210, YM-2150, YM-350 and YM-3550.
4. Stable performance, output of 3-10 tons of sawdust; (different models, different yields)
5. The whole equipment is easy to maintain and operate without wearing parts!
6. Before the machine leaves the factory, the installation and debugging are completed, and the customer can be electrified to produce and use it at ease.



Technical Data:

Model YM-210
Total power(KW) 55+4.5
Knife Qty(pieces) 168
Capacity(m³/h) 10m³/h
Feeding inlet size(mm) 210x210
Voltage 380v/50HZ
Dimension (mm) 7000*1200*1800
Weight(kg) 3500





Product effects:

The machine to crush wood into sawdust is the specially designed and highly efficient wood processing equipment

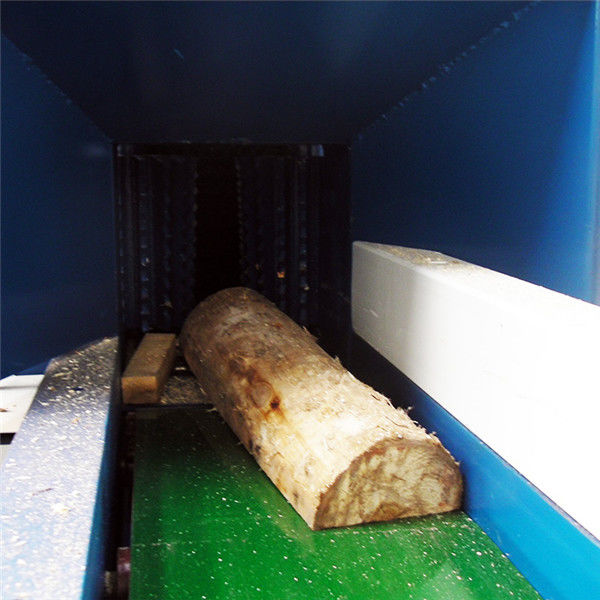

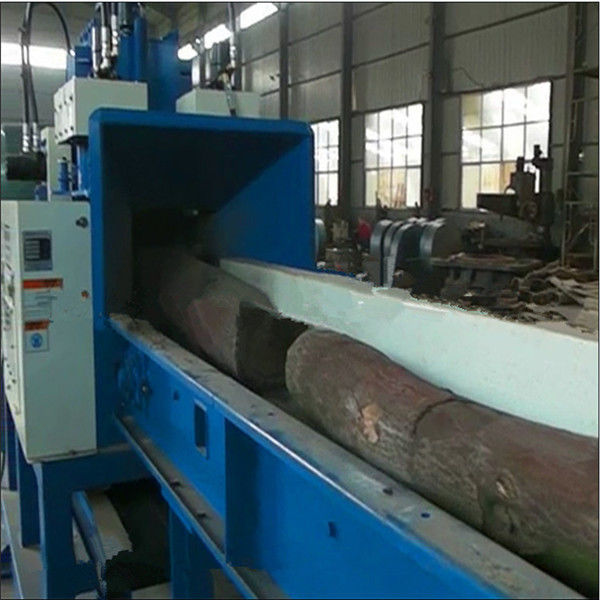

1.It can process logs, wood sticks, tree branches and waste wood material into sawdust one time.

2.The size of sawdust can be adjusted in range 1-10mm by changing screen.

3.The machine to crush wood into sawdust is the necessary wood processing equipment for small and medium-sized enterprises and individual household.
