Bamboo Roots 140kw 12t/H Wood Sawdust Machine

Bamboo Roots 140kw 12t/H Wood Sawdust Machine

  • High Light

    140kw Wood Sawdust Machine

    ,

    12t/H Wood Sawdust Machine

    ,

    12t/H wood dust making machine

  • Name
    Wood Shredder
  • Other Names
    Wood Grinder
  • Type
    YM-350
  • Condition
    New
  • Warranty
    1 YEAR
  • Certification
    CE
  • Key Selling Points
    High Productivity
  • Roller Shaft Size(mm)
    450*400mm
  • Feed Port Size(mm)
    350*350mm
  • Weight
    5t
  • Place of Origin
    CHINA
  • Brand Name
    YaMei
  • Certification
    CE
  • Model Number
    YM-350
  • Minimum Order Quantity
    1 Set
  • Price
    $27,000.00 - $35,000.00 / Set
  • Packaging Details
    wood pallet
  • Delivery Time
    7-30 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    60 Sets per month

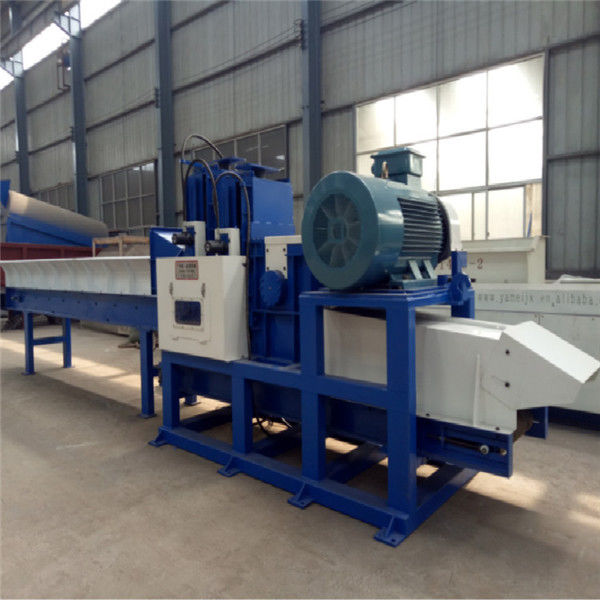

Bamboo Roots 140kw 12t/H Wood Sawdust Machine

YM-350 Type Double Shaft Wood Shredder Crushing Bamboo Roots Branches

Introduce:

Wood crusher is also called sawdust special crusher, which can process all kinds of trees, branches, branches, board edge materials, bark, hardwood, bamboo, bamboo skin, compression plate, building shell board, waste bamboo fence, construction waste wood, large and small paper tubes, furniture factory leftovers and so on into 2-0.5mm sawdust at one time. This machine belongs to Asia American design and development! Compared with the previous wood mills, it has the characteristics of stable performance, high output, safe and easy operation, powerful function, high degree of automation and wide application range.



The principle of large-scale sawdust machine uses hydraulic device to clamp and force feeding materials. The bearing is equipped with high-speed rotating cutter to bite and squeeze materials to achieve the purpose of crushing. It can produce about 3-10 tons of sawdust and 2-0.5mm sawdust per hour. The equipment is imported from Germany, and its performance is very stable. It is specially designed for logs, wood scraps, branches and veneers And so on one time molding, does not need the second pulverizer, belongs to the company's fist product.



Advantage:

1. Low energy consumption, high production capacity, good quality and 41-140kw main power make the comminution of wood particles and charcoal raw materials solved.
2. The technology is mature. This equipment is researched and developed by the company in many aspects, such as the original old equipment and imported equipment, and is improved to solve the problem that the log can not be crushed.
3. Using the advanced foreign wood pulverizer technology for reference, it is the original low production capacity, high energy consumption wood crushing equipment to achieve good results!
4. Stable performance, customer feedback on the wood crusher output is ideal, and one person can work, no need for civil engineering, saving investment and cost return time.
5. The whole equipment is easy to maintain and operate without wearing parts! (note): tool life rate, within one year, no need to replace!

6. Before the machine leaves the factory, the installation and debugging is completed, the label of the connecting line is clear at a glance, and the customer can produce the machine after power connection, thus saving the waiting time for the installation personnel to arrive at the factory.



Technical Data:

Modei YM-350
Total power(kw) 132+7.5
Knife qty(pieces) 364
Feeding port size(mm) 350*350
Capacity(t/h) 10-12(t/h)
Valtage 380V/50HZ
Overall dimension(mm) 7000*1400*2200
Weight(kg) 5000

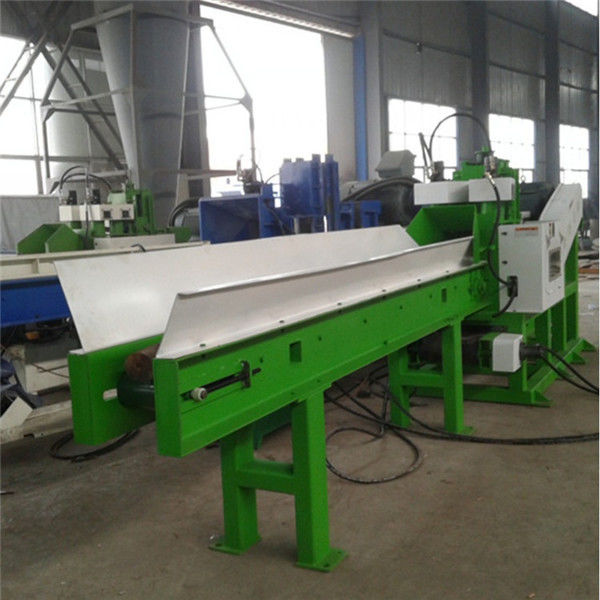

Bamboo Roots 140kw 12t/H Wood Sawdust Machine 0


Product usage:

Product Uses of the machine to crush wood into sawdust.

1.The machine to crush wood into sawdust can crush the raw material into small pieces.

2.The size of sawdust can be adjusted in range 1-30mm by changing screen.

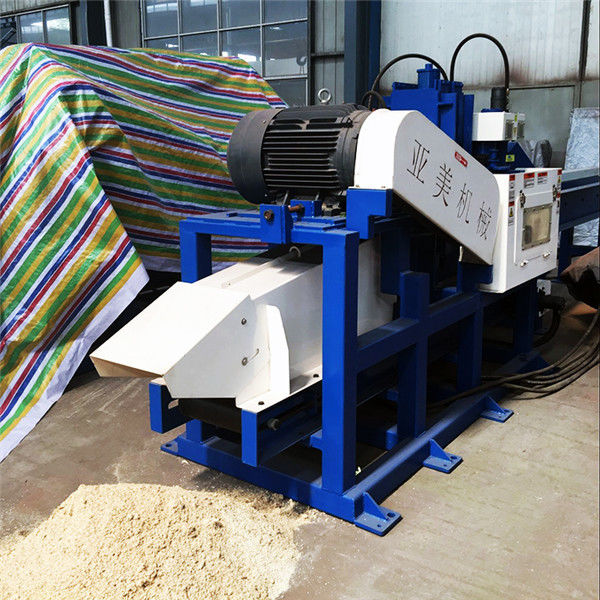

Bamboo Roots 140kw 12t/H Wood Sawdust Machine 1



Product effects:

The machine to crush wood into sawdust is the specially designed and highly efficient wood processing equipment

1.It can process logs, wood sticks, tree branches and waste wood material into sawdust one time.

2.The size of sawdust can be adjusted in range 1-10mm by changing screen.

3.The machine to crush wood into sawdust is the necessary wood processing equipment for small and medium-sized enterprises and individual household.

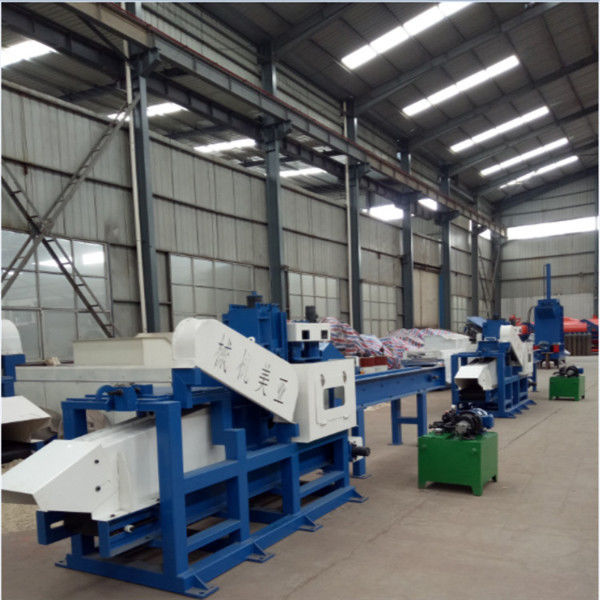

Bamboo Roots 140kw 12t/H Wood Sawdust Machine 2
