380*155*135cm 1500kg/H 140cm Wood Shaving Mill

380*155*135cm 1500kg/H 140cm Wood Shaving Mill

  • High Light

    1500kg/H Wood Shaving Mill


    140cm Wood Shaving Mill


    1500kg/H shavings machine

  • Name
    Wood Shaving Mill
  • Type
  • Input Length
  • Input Width
  • Power
  • Capacity
  • Dimensions
  • Weight
  • Place of Origin
    Henan, China
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 SET
  • Price
    $18,000.00 - $20,000.00 / Set
  • Packaging Details
    plastic film for wood shaving making machine
  • Delivery Time
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    60 Set/Sets per Month

380*155*135cm 1500kg/H 140cm Wood Shaving Mill

Wood Shaving Mill Can Produce Small Volume And Light Wood Shavings

Introduction of Wood Shaving Machine

This machine is an automatic machine for pulverizing wood into shavings. After the raw materials are entered by the feed inlet, they are first cut into the crushing chamber by the blade, which is crushed by the impact of a high-speed rotating hammer and the selection of a shear cutter. The size of shavings is determined by adjusting the length of the blade and the size of the screen aperture to suit various needs.


Wood shavings as animal bedding, dehumidification, deodorization, odor elimination.Shavings of different sizes and thickness are used to breed different animals.


Technical Parameters of Wood Shaving Machine
Name Wood Shaving Machine
Model 1460-4
Cutter shaft(piece) 4
Length of blade 60cm
Number of blades 7*4=28
Power supply 380v-50hz-3p
Total power 25kw
Cutter head speed 3800rpm
Cutter head diameter 158 mm
Shaving depth 0.5-2mm
Max. Log input length 140cm
Max.log input width 60cm
Working distance 1700mm
Capacity 1200-1500kg/h
Machine dimensions 380*155*135cm
Weight 3000kg

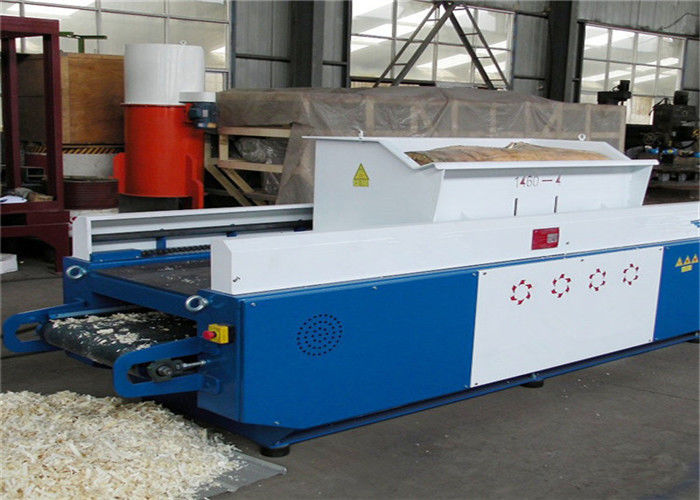

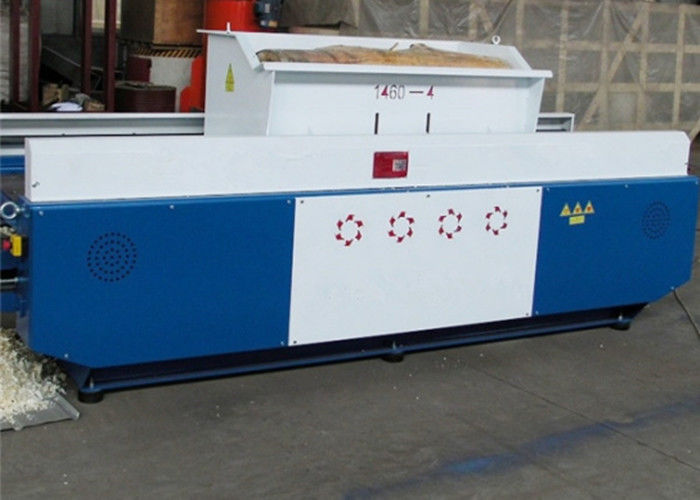

Pictures of Wood Shaving Machine

380*155*135cm 1500kg/H 140cm Wood Shaving Mill 0380*155*135cm 1500kg/H 140cm Wood Shaving Mill 1


Advantages of Wood Shaving Machine

1. Automatic running from start to ending, continuo running, preventive system for wood jamming.


2. There is no need for Civil Engineering (it can be produced on the flat ground without civil engineering to reduce the cost).


3. Schneider original packaging is used for electrical control.

4. The thickness of particleboard can be adjusted at will (to meet different market demands).

5. There are no vulnerable parts except for cutting tools (supporting grinder equipment and cutting tools can be used for many times).


6. The overall structure is made by laser cutting and numerical control processing (to ensure the interchangeability of machine parts).

7. High degree of automation, equipped with automatic feeding system, realize continuous feeding and greatly reduce labor cost.


Final product display

380*155*135cm 1500kg/H 140cm Wood Shaving Mill 2


Working Principle of Wood Shaving Machine

1.log into the feed port. When starting the machine, turn back and forth, hydraulic pressure, down to the planer plane, after the blade is awesome, blow out the box under the air blow.

2.The wood shaving machine is mainly composed of shell, knife roller, motor, power distribution cabinet, hydraulic system, etc. Its frame is welded with high strength steel plate, which is the support foundation of the whole wood shaving machine.

3.The blade installed on the cutter roller is fixed on the cutter roller by the blade bolt made by the professional manufacturer through the pressure block, which can be adjusted up and down within a certain range according to the thickness of the shaving.

4.Cutter roller(shift) of wood shaving machine: stop the machine, open the cover and replace the blade.


Photos From Workshop

380*155*135cm 1500kg/H 140cm Wood Shaving Mill 3


380*155*135cm 1500kg/H 140cm Wood Shaving Mill 4


Packing & Delivery

380*155*135cm 1500kg/H 140cm Wood Shaving Mill 5



After Sales Service

1. One year for machinery warranty.


2. We have the cheap spare parts supply.


3. We can sent engineer to install and maintain on site.



1)Are you a factory or trade company?

We have our own factory as an international supplier, a professional manufacturer and a general international trader.


2) How can I trust your company?

1.Henan Wheat Import And Export Company Limited, established in 2005, located in Zhengzhou City--Capital of Henan Province, the center of China mainland.

2.We have special QC department, testing every single equipment, from voltage to appearance, our workers will inspect strictly in order to supply the best and most stable machine for our customers.

3.Our equipment are strictly designed and produced according to CE standard, we care for every details and the quality.


3) How long is your delivery time?

Generally it is 30 days after received your deposit.


4) Is your price competitive?

We can provide the highest quality machines at the best price.
