800kg/H Wood Shaving Mill

800kg/H Wood Shaving Mill

  • High Light

    800kg/H Wood Shaving Mill


    14kw Wood Shaving Mill

  • Name
    Wood Shaving Mill
  • Other Names
    Wood Shaving Machine
  • Certification
  • Color
  • Power
  • Capacity
  • Weight
  • Warranty
    1 YEAR
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 Set
  • Price
    $18,000.00 - $20,000.00 / Set
  • Packaging Details
    Plastic Film
  • Delivery Time
    7-30 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    60 Sets per Month

800kg/H Wood Shaving Mill

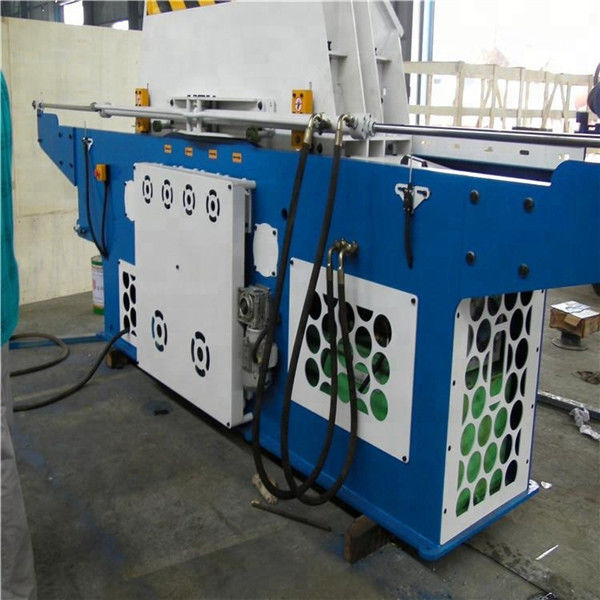

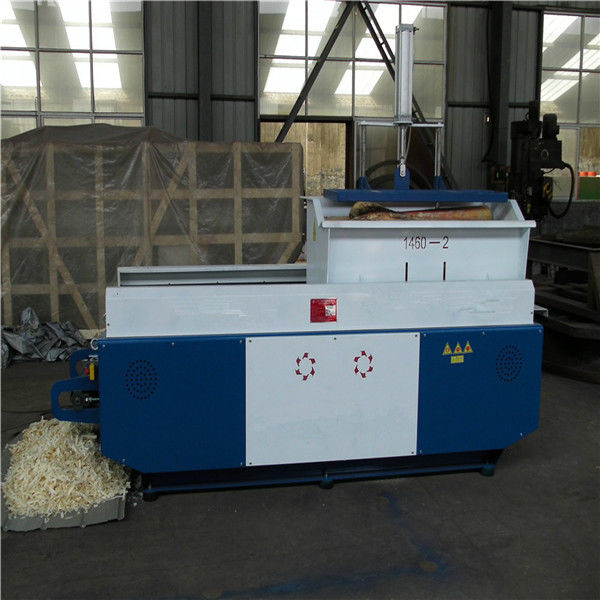

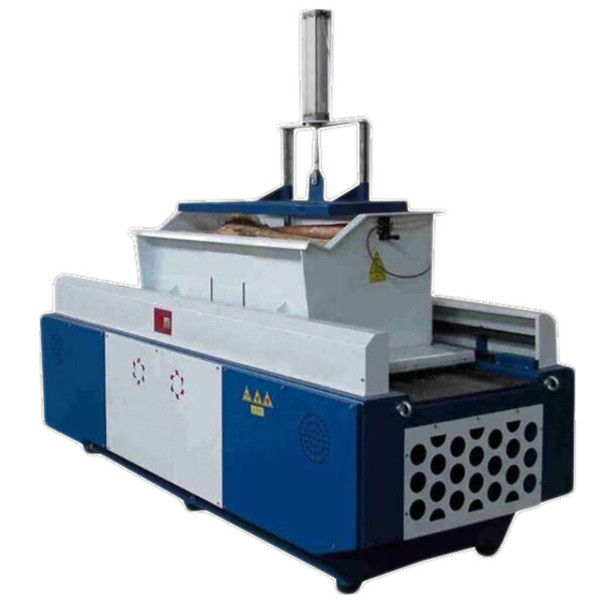

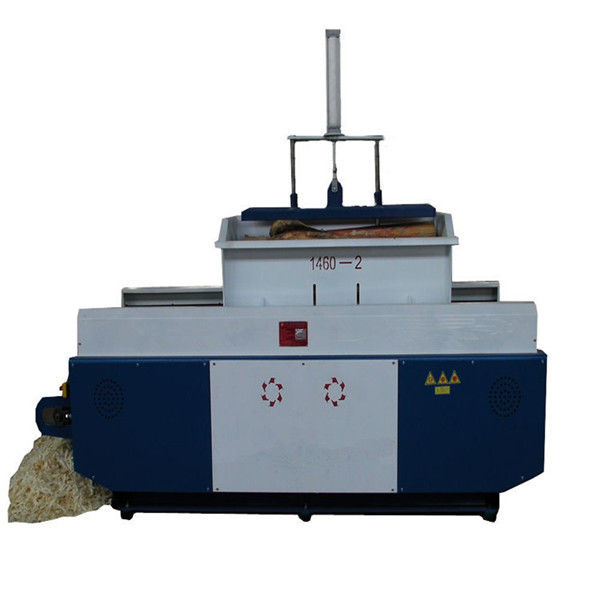

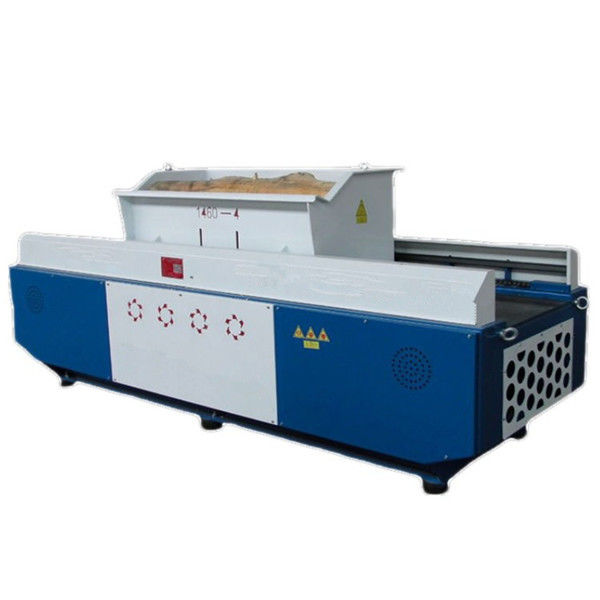

YM-1460 Type Wood Shaving Mill Making Wood Shavings Used For Pet Bedding, Mouse Experiment, Large-Scale Farm, Stable


Wood shaving machine is referred to as wood shaving machine, also known as particle crusher, sawdust shaving machine and so on. The wood shaving machine produced by our company adopts Turkish processing technology, and then improves according to the current demand of wood shaving and the current situation of wood in China. The wood shaving machine can transfer various kinds of wood (such as: sticks, branches, branches, logs, furniture, etc.) It can be processed into high-quality shavings.

This product has advanced structure, high quality of shaving products, suitable for all kinds of trees, simple and convenient operation and maintenance. The shavings produced are widely used, even if the weather is very bad, the output of the equipment will not be affected. Turkey process technology was introduced to improve its design. Under the condition of stable welding connection, accurate stamping and embedding methods were adopted to avoid the looseness of the machine during operation.


This machine is mainly used for batch production of flake with uniform thickness. It is an automatic wood shaving machine. There is no difference in the thickness of the wood chips on the machine frame, which are placed on the machine frame and the wood cutting tool, which are fixed on the machine frame. The material can be used for plywood factory and poultry breeding, and can also be used for fuel.
The improved new-type particle crusher can process wood sticks, branches, branches and other logs as well as the wood chips produced by the shaving machine and the shavings produced by the furniture factory are the same. The machine adopts automatic feeding device, which is much simpler than the traditional operation. At the same time, it also increases the speed of shaving production and saves manpower and time.


The wood shaving machine can process all kinds of wood (such as sticks, branches, branches, logs, leftovers) into high-quality wood shaving products. This product is of high quality and is suitable for all kinds of trees. It is easy to operate and maintain. The shavings produced are widely used, even if the weather is harsh, the output of the machine will not be affected.



1. Preventative System for Wood Jamming

2. Adjust the size of shavings by yourself

3. Easy replace the blades

4. Conveyor feeding shavings out

5. Safety Protection

6. Powerful working system


Model 1460-2 1460-4
Number of cutter heads 2 4
Length of blade 60cm 60cm
Power supply 380v-50hz-3p 380v-50hz-3p
Total power 14kw 25kw
Cutter head speed 3800rpm 3800rpm
Cutter head diameter 158mm 158 mm
Shaving depth 0.5-2mm 0.5-2mm
Max. Log input length 140cm 140cm
Max.log input width 60cm 60cm
Working distance 1400mm 1700mm
Machine dimensions 330*155*135cm 380*155*135mm
Weight 2400kg 3000kg
Capacity 600-800 kg/h 1200-1500kg/h
