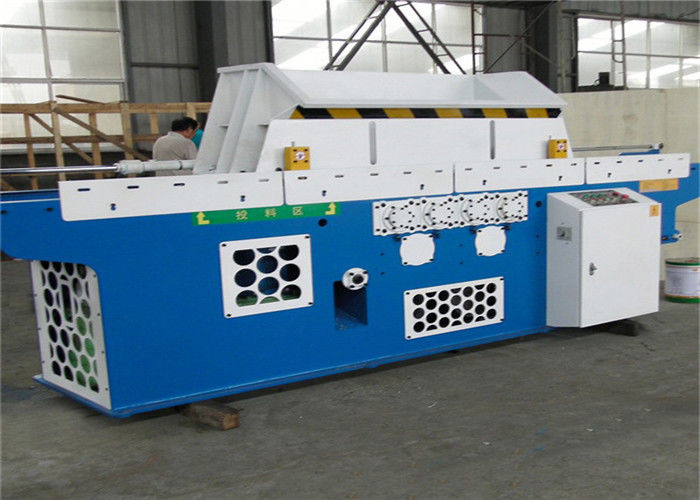

Introduction of Wood Shaving Machine
Wood Shaving Machine, also known as wood shaving machine, wood shaving machine, particle grinder, sawdust shaving machine and so on. Our shaving machine adopts Turkish processing technology. According to international conditions, the new chain type shaving machine is improved on the original machine. It can be widely used in the shaving processing of all kinds of wood chips, small sticks, waste wood, leftovers of furniture factories, etc. the shavings produced are uniform in shape, high in yield and complete in specifications.
Technical Parameters of Wood Shaving Machine
Hopper length(cm) | 145 |
Input material Dia.(cm) | 45 |
Cutting head(set) | 4 |
Blade(set) | 6 |
RPM(r/min) | 4500 |
Input material length (cm) | 142 |
Power(kw) | 18.5+18.5+0.37+5.5=42.87kw |
Shaving depth(mm) | 1-5 |
Hopper route(mm) | 2200 |
Feeding speed (hydraulic)(m/min) | 6-15 |
Dimensions(L*W*H)(cm) | 515*115*180 |
weight(kg) | 2850 |
YT-145 | DOC(depth of cut) | |||||
1mm | 2mm | 3mm | 4mm | 5mm | ||
Speed |
0.10 m/sec | 427kg | 654kg | 880kg | 1107kg | 1334kg |
0.15 m/sec | 540kg | 880kg | 1221kg | 1561kg | 1901kg | |
0.20 m/sec | 654kg | 1107kg | 1561kg | 2014kg | 2468kg | |
0.25 m/sec | 767kg | 1334kg | 1901kg | 2468kg | 3035kg |
Final product display
Advantages of Wood Shaving Machine
1. Introduce Turkish technology.
2. No installation is required (the product can be produced after the customer wiring is completed before the factory installation and debugging)
3. There is no need for Civil Engineering (it can be produced on the flat ground without civil engineering to reduce the cost) .
4. Schneider original packaging is used for electrical control.
5. 4-axis planing and 2-axis planing (increase the output of wood chips to meet the needs of customers).
6. The thickness of particleboard can be adjusted at will (to meet different market demands).
7. Compression box, which can be compressed for many times and formed at one time.
8. Adjust the times of compression according to the quantity of materials to achieve energy saving and emission reduction.
9. There are no vulnerable parts except for cutting tools (supporting grinder equipment and cutting tools can be used for many times).
10. Mechanical rotation (greatly reduce equipment maintenance rate, adapt to any area with large temperature difference).
11. The overall structure is made by laser cutting and numerical control processing (to ensure the interchangeability of machine parts).
12. High degree of automation, equipped with automatic feeding system, realize continuous feeding and greatly reduce labor cost.
After Sales Service
1. One year for machinery warranty.
2. We have the cheap spare parts supply.
3. We can sent engineer to install and maintain on site.
