Introduce:

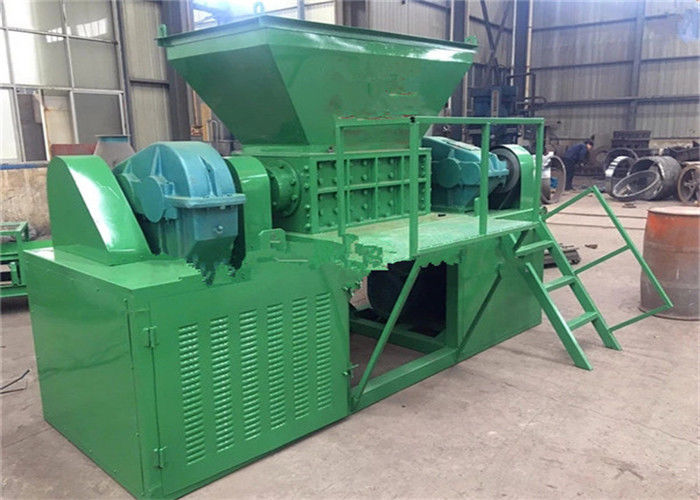

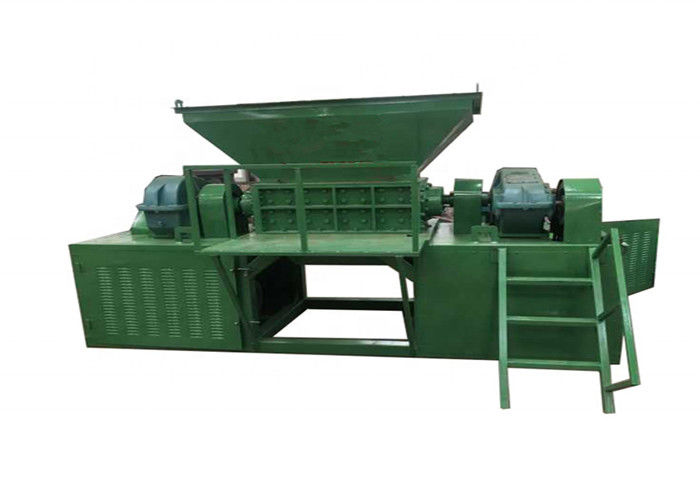

Double shaft shredder is used in crushing plastic,metal,tire,rubber,aluminum,fiber, paper, wood, large-scale hollow material (plastic and other large container), and a variety of mixed waste, especially waste containing metal and so on.
In detail,such as metal drum,freezer,car body,scrap steel;water bottle,PET bottle,oil and gas bottle,any plastic bottle is ok;wood scrap,wood pallet,plastic shell,metal sheel,cylinder head,aluminum panel,cable,metal bucket,wood board,woven bag,nylon net,rag,rope etc.
Shredder is a kind of machine used for fine crushing, which is generally used to process raw materials or scraps to make its size smaller. A typical example is the shredding of plastic or rubber scraps as raw materials for melting and granulation, which can be used to make plastic bottles, tires or garbage cans. The shredder is used in plastic recycling and recycling industry. It is often used to crush large-diameter PE plastic pipes, bundles of plastic films, large piles of plastic sheets and head materials.
The application of shredder generally includes:
1. Tear the unqualified products into small pieces for recycling.
2. Reduce the volume of raw materials without processing so that they can be mixed with other materials.
3. Tear up organic matter to make biofuels.
4. Tear up some textile materials to facilitate fiber reuse, such as carpet crushing.
Advantage:
1. high quality with reasonable price.
2. high efficient,low energy consumption.
3. running stable,long working life.
4. Good seal,environmental friendly.
5. reliable supplier with more than 30 years experience.
Working Principle:

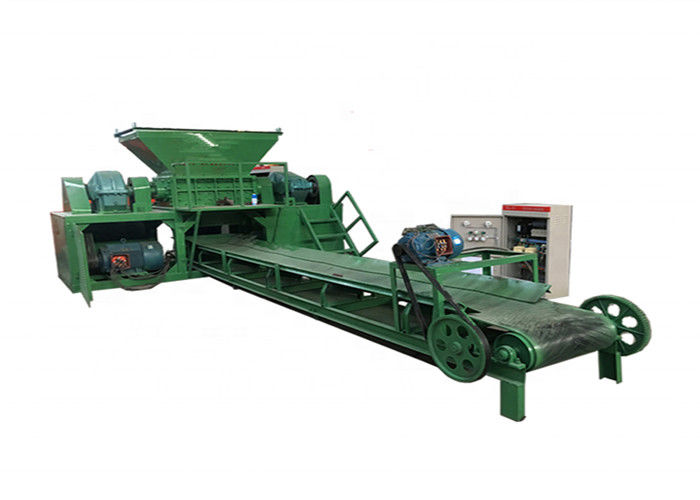

The material will be transferred to the blades assemble box by conveyors,there are many knives in the assemble box,and the material will be tear,extrusion,shear and other integrative action,then the small pieces material will be out from the bottom of the shredder.
Application:
1. A variety of hollow containers: Plastic beverage cans, plastic buckets, iron cans,packing boxes.
2. Waste household appliances: TV, washing machine, refrigerator shell.
3. Pipe: Large pipes, pipe fittings, PE pipe.
4. Waste template: wooden pallets, plastic pallets,truck pallet.
5. Waste tires: car tires, truck tires.
6. scrap metal: car shell,Aluminum die casting scraps, engine shell, gear boxes ,lead as well as the steel plate with less than 5mm thickness.
Technical Data:
| Model | Knives size | Power(kw) | Capacity(t/h) | Qty | Reducer | Size(m) | Weight(t) |
| SG-600 | Φ300*20 | 15*2 | 0.4-1 | 30 | ZJQ350*2 | 2.6*1.1*2.1 | 2.2 |
| Φ300*20 | 15*2 | 0.8-1.2 | 40 | ZJQ400*2 | 3*1.2*2.2 | 3 | |
| Φ300*30 | 18.5*2 | 1-1.5 | 26 | ZJQ400*2 | 3*1.2*2.2 | 3.5 | |
| Φ300*40 | 22*2 | 1.2-2 | 20 | ZJQ500*2 | 3*1.2*2.2 | 5 | |
| SG-1000 | Φ300*30 | 30*2 | 1-1.2 | 34 | ZJQ400*2 | 3.4*1.25*2.2 | 6 |
| Φ300*40 | 37*2 | 1-1.5 | 26 | ZJQ500*2 | 3.4*1.25*2.2 | 6.3 | |
| Φ400*40 | 37.2 | 1-2 | 26 | ZJQ500*2 | 3.4*1.25*2.2 | 6.5 | |
| Φ400*50 | 45*2 | 1.5-2.5 | 20 | ZJQ650*2 | 3.4*1.25*2.2 | 7 | |
| SG-1200 | Φ300*40 | 45*2 | 2.5-3 | 30 | ZJQ650*2 | 3.8*1.25*2.2 | 8 |
| Φ400*40 | 45*2 | 2.8-3.3 | 30 | ZJQ650*2 | 3.8*1.25*2.2 | 8.5 | |
| Φ500*40 | 55*2 | 3-3.5 | 30 | ZJQ650*2 | 3.8*1.25*2.2 | 9 | |
| SG-1500 | Φ300*30 | 55*2 | 3.8-4.5 | 50 | ZJQ750*2 | 4.4*1.5*2.5 | 11 |
| Φ400*40 | 55*2 | 4-5 | 38 | ZJQ750*2 | 4.4*1.5*2.5 | 12 | |
| Φ500*50 | 75*2 | 4.5*5.5 | 30 | ZJQ750*2 | 4.4*1.5*2.5 | 14 | |
| Φ550*50 | 75*2 | 5-6 | 30 | ZJQ750*2 | 4.4*1.5*2.5 | 16 | |
| SG-1800 | Φ400*40 | 90*2 | 6-7 | 45 | Zsy355*2 | 5.3*2.1*2.8 | 17 |
| Φ550*50 | 90*2 | 7.5-8.5 | 36 | Zsy355*2 | 5.3*2.1*2.8 | 18 | |
| Φ600*60 | 90*2 | 9-10 | 30 | Zsy400*2 | 5.3*2.1*2.8 | 19 | |
| SG-2000 | Φ550*50 | 110*2 | 10-13 | 40 | Zsy400*2 | 6*2.2*3.5 | 22 |
| Φ600*60 | 110*2 | 12-16 | 34 | Zsy450*2 | 6*2.2*3.5 | 23 | |
| Φ650*60 | 110*2 | 15-20 | 34 | Zsy450*2 | 6*2.2*3.5 | 25 |
Our products are sold all over the world, you can rest assured.
