Horse Chicken Farm Wood Shaving Mill 1500kg/H 25kw

Horse Chicken Farm Wood Shaving Mill 1500kg/H 25kw

  • High Light

    1500kg/h Wood Shaving Mill


    25kw Wood Shaving Mill


    Sawdust Wood Shaving Mill

  • Name
    Wood Shaving Mill
  • Model
  • Certification
  • Power
  • Capacity
  • Dimension(l*w*h)(cm)
  • Warranty
    12 Months
  • Weight
  • Place of Origin
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Packaging Details
    Plywood case and film
  • Delivery Time
    7-30 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Sets per Month

Horse Chicken Farm Wood Shaving Mill 1500kg/H 25kw

Wood Shaving Mill For Horse Farm, Chicken Farm

Introduction of Wood Shaving Mill

1. Wood shaving mill (also named wood chipper/cutting machine) is an ideal machine, which for preparing with producing wood shavings.


2. It can make the logs, tree branch, edge processed wood into wood shavings with less investment low energy consumption, high efficient, yield good economic returns.


3. The finished shaving is the same as that produced from the furniture factory. They are mainly used as the bed of the horse, chicken or other animal by farm or horse club, poultry/animal's farms.


4. Also be used as raw materials, which for produce edible mushrooms, shaving board, sawdust board and dense board.


Technical Parameters of Wood Shaving Mill

Model 1460-4
Number of cutter heads 4
Length of blade 60cm
Number of blades 7*4=28
Power supply 380v-50hz-3p
Total power 25kw
Cutter head speed 3800rpm
Cutter head diameter 158 mm
Shaving depth 0.5-2mm
Max. Log input length 140cm
Max.log input width 60cm
Working distance 1700mm
Machine dimensions 380*155*135mm
Weight 3000kg
Capacity 1200-1500kg/h

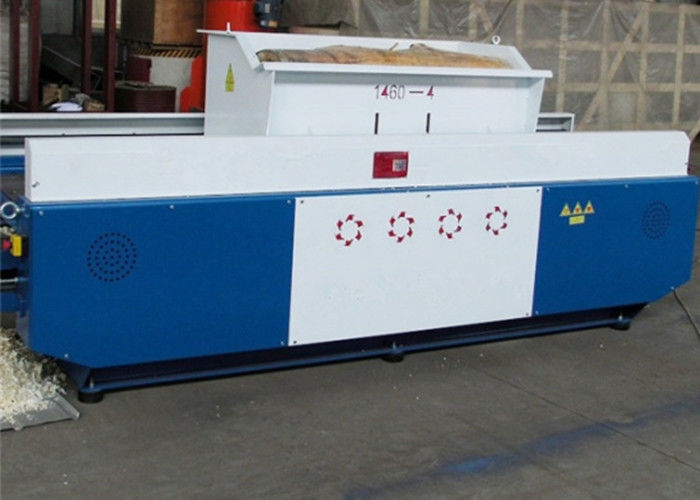

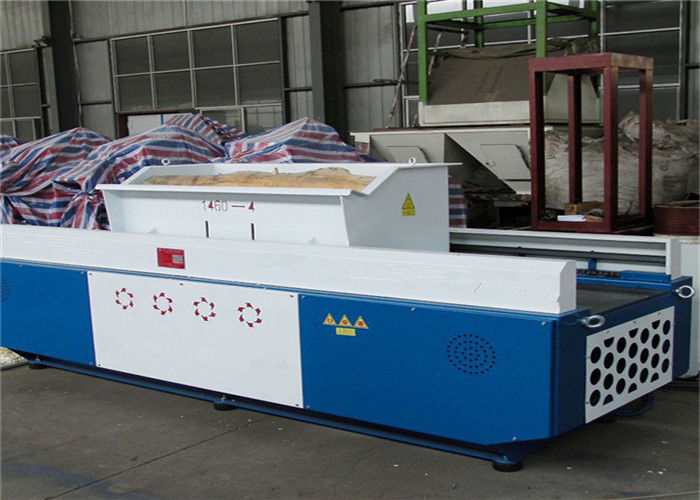

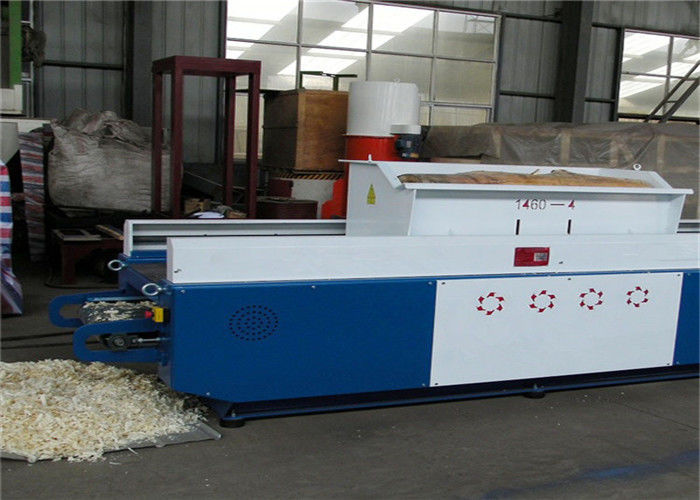

Pictures of Wood Shaving Mill

Horse Chicken Farm Wood Shaving Mill 1500kg/H 25kw 0


Advantages of Wood Shaving Mill

1. Introduce Turkish technology.

2. No installation is required (the product can be produced after the customer wiring is completed before the factory installation and debugging)

3. There is no need for Civil Engineering (it can be produced on the flat ground without civil engineering to reduce the cost).


4. Schneider original packaging is used for electrical control.

5. 4-axis planing and 2-axis planing (increase the output of wood chips to meet the needs of customers).

6. The thickness of particleboard can be adjusted at will (to meet different market demands).

7. Compression box, which can be compressed for many times and formed at one time.

8. Adjust the times of compression according to the quantity of materials to achieve energy saving and emission reduction.

9. There are no vulnerable parts except for cutting tools (supporting grinder equipment and cutting tools can be used for many times).


10. Mechanical rotation (greatly reduce equipment maintenance rate, adapt to any area with large temperature difference).

11. The overall structure is made by laser cutting and numerical control processing (to ensure the interchangeability of machine parts).

12. High degree of automation, equipped with automatic feeding system, realize continuous feeding and greatly reduce labor cost.


Final Product Display

Horse Chicken Farm Wood Shaving Mill 1500kg/H 25kw 1


Working Principle of Wood Shaving Mill

1.log into the feed port. When starting the machine, turn back and forth, hydraulic pressure, down to the planer plane, after the blade is awesome, blow out the box under the air blow.

2.The wood shaving machine is mainly composed of shell, knife roller, motor, power distribution cabinet, hydraulic system, etc. Its frame is welded with high strength steel plate, which is the support foundation of the whole wood shaving mill.

3.The blade installed on the cutter roller is fixed on the cutter roller by the blade bolt made by the professional manufacturer through the pressure block, which can be adjusted up and down within a certain range according to the thickness of the shaving.

4.Cutter roller of wood shaving mill: stop the machine, open the cover and replace the blade.


Wood Shavings Application

Horse Chicken Farm Wood Shaving Mill 1500kg/H 25kw 2


Feature of Wood Shaving Mill

1. Advanced technology, based on the original ground, the combination of various parts of the fuselage has changed the traditional welding mode, and adopted the precise punching and embedded combination, which will not become loose due to the vibration of the machine for a long time.

2.High quality parts and fittings, cutting tools imported from Germany, durable.


3. Transmission mode adopts hydraulic transmission, stable performance, low noise and no dust.


4.Widely used, this machine produces shavings thickness adjustable, used for chipboard, papermaking wood pulp, poultry and livestock bedding, etc.


The main equipment components of wood shaving machine are: crushing chamber, knife roller group, Siemens motor and electrical system, reducer, rack, feed conveyor, discharge conveyor, etc. Blades are imported from German Demas enterprises, and electrical system is imported from Schneider of France. Therefore, the quality is strictly guaranteed in technology and technology.


Photos From Workshop

Horse Chicken Farm Wood Shaving Mill 1500kg/H 25kw 3


Horse Chicken Farm Wood Shaving Mill 1500kg/H 25kw 4


Packing & Delivery

Horse Chicken Farm Wood Shaving Mill 1500kg/H 25kw 5



After Sales Service

1. One year for machinery warranty.


2. We have the cheap spare parts supply.


3. We can sent engineer to install and maintain on site.



1)Are you a factory or trade company?

We have our own factory as an international supplier, a professional manufacturer and a general international trader.


2) How can I trust your company?

1.Henan Wheat Import And Export Company Limited, established in 2005, located in Zhengzhou City--Capital of Henan Province, the center of China mainland.


2.We have special QC department, testing every single equipment, from voltage to appearance, our workers will inspect strictly in order to supply the best and most stable machine for our customers.


3.Our equipment are strictly designed and produced according to CE standard, we care for every details and the quality.


3) How long is your delivery time?

Generally it is 30 days after received your deposit.


4) Is your price competitive?

We can provide the highest quality machines at the best price.
