Introduction of Wood Shaving Mill
Horizontal Hydraulic Wood Shaving Machine is a hydraulic type machine with large processing capacity, it is mainly used to cut the wood into uniform shavings or chips. It can product the even and same thickness shavings or chips, can be used to make plywood, in the paper making factory and fragile filling materials in transporting company, also can be used to make beds for animal, such as chicken, rabbit, horse, cow, sheep, cat and dog, ect. It also can be used as bio-energy. It is automatic feeding device, greatly increasing the production speed, but also saves time and manpower. There are many advantages for shavings to animal. Good water absorption, easy to dry and clean. Bed is softer and more comfortable, which makes for healthier to animals.
This wood shaving mill can process finished wood or waste wood with a length of 45CM to 145CM. The product structure is advanced, the energy consumption is low, the environmental protection is efficient, and you can adjust the shavings to different sizes according to your different uses. The produced shavings have high quality, the blade has high wear resistance and long service life. The hydraulic power unit imported from Germany is used to ensure the continuous work and stability of the hydraulic tie rod.
Technical Parameters of Hydraulic Wood Shaving Mill
| Name | Wood Shaving Mill |
| Model | 145 |
| Hopper length(cm) | 140 |
| Hopper width(cm) | 50 |
| Cutter shaft(piece) | 4 |
| Blade(set) | 6*4=24 |
| RPM(r/min) | 4500 |
| Input material length (cm) | 140 |
| Power(kw) | 18.5+18.5+0.37+5.5=42.87KW |
| Shaving depth(mm) | 1-5 |
| Hopper route(mm) | 2200 |
| Feeding speed (hydraulic) | 6-15(m/min) |
| Dimensions(L*W*H)(cm) | 515*115*180 |
| Weight(kg) | 2850 |

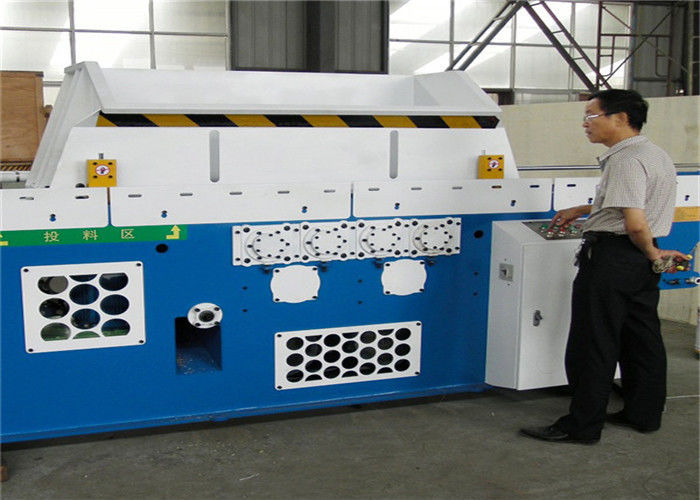

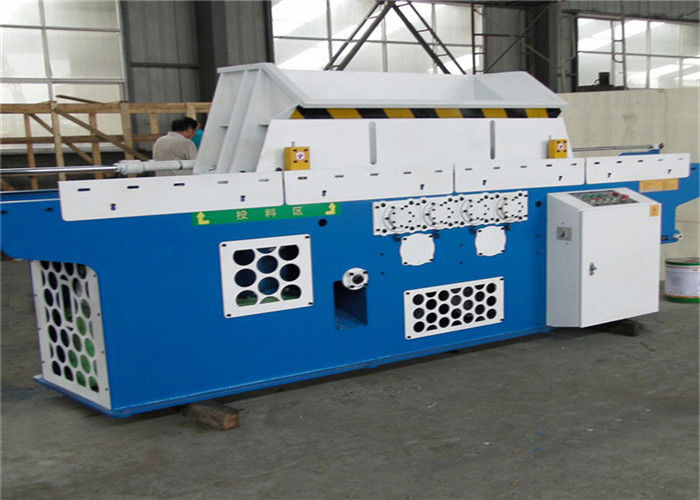

Picture of Hydraulic Wood Shaving Mill
Wood Shavings Display
Advantages of Hydraulic Wood Shaving Mill
1. No need for civil engineering.
2. Electrical control systems are imported from Europe.
3. Four-axis planing (increasing shavings yield).
4. The size and thickness of the shavings can be adjusted arbitrarily (to meet the needs of different markets).
5. Adjust the number of compressions according to the number of materials to achieve energy saving and emission reduction.
6. No other wearing parts except knives (supporting sharpener equipment, knives can be used for many times).
7. The transmission part adopts hydraulic technology to ensure the stability of the equipment operation and avoid crashes.
8. The overall structure is made by laser cutting and CNC machining center to ensure the interchangeability of machine parts.
9. The high degree of automation, equipped with an automatic feeding system, to achieve uninterrupted feeding, greatly reducing labor costs.
Wood Shavings Application
Working Principle of Hydraulic Wood Shaving Mill
1. Put the log into the feeding port. When the machine is started, rotate it back and forth, and press it down to the plane of the machine planer. After cutting with the knife and stick, blow out the cabinet under the airflow.
2. The wood shaving mill body is mainly composed of the casing, knife roll, motor, power distribution cabinet, hydraulic system, and other parts. Its base is welded with high-strength steel plates, which is the supporting foundation of the whole wood shaving mill.
3. The blade mounted on the knife roller is a professionally manufactured blade bolt. The blade is fixed on the knife roller by a pressure block; it can be adjusted up and down within a certain range according to the thickness of the shavings.
4. Wood shaver knife roller: Stop the machine, open the cover, and replace the blade.
Photos From Workshop
Packing & Delivery
After Sales Service
1. One year for machinery warranty.
2. We have the cheap spare parts supply.
3. We can sent engineer to install and maintain on site.
