Introduction of Wood Shaving Mill
Wood shaving mill is referred to as wood shaving machine, also known as shaving machine and so on. The wood shaving machine produced by our company adopts Turkish processing technology, and then improves according to the current demand of wood shaving and the current situation of wood in China. The wood shaving machine can transfer various kinds of wood (such as: sticks, branches, branches, logs, furniture, etc.) It can be processed into high-quality shavings.
Wood shaving mill can be widely used in various wood composite board, density board, furniture factory, raw material of wood pulp paper, bedding material of family pet, bedding material of horse racing field, incubation and keeping warm in winter of breeding farm, transporting fragile filling material (to prevent extrusion and collision), etc. in addition, it can also be used as ignition fuel of bioenergy, fermentation raw material of fungus culture, etc.
| Name | Wood Shaving Machine |
| Model | 145 |
| Hopper length(cm) | 140 |
| Hopper width(cm) | 50 |
| Cutter shaft(piece) | 4 |
| Blade(set) | 6*4=24 |
| RPM(r/min) | 4500 |
| Input material length (cm) | 140 |
| Power(kw) | 18.5+18.5+0.37+5.5=42.87KW |
| Shaving depth(mm) | 1-5 |
| Hopper route(mm) | 2200 |
| Feeding speed (hydraulic) | 6-15(m/min) |
| Dimensions(L*W*H)(cm) | 515*115*180 |
| Weight(kg) | 2850 |

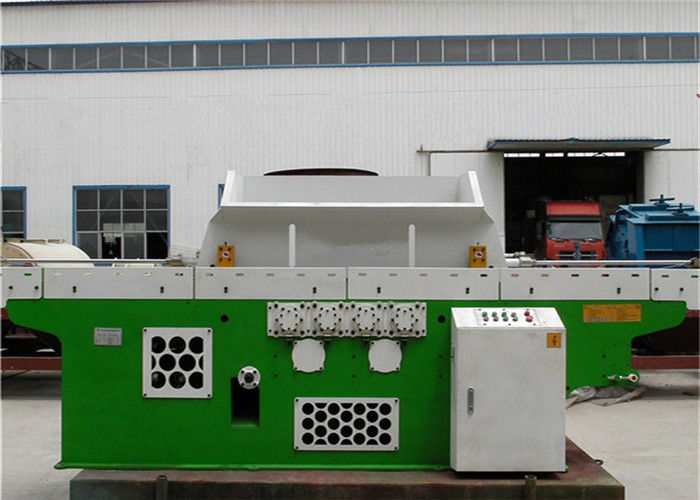

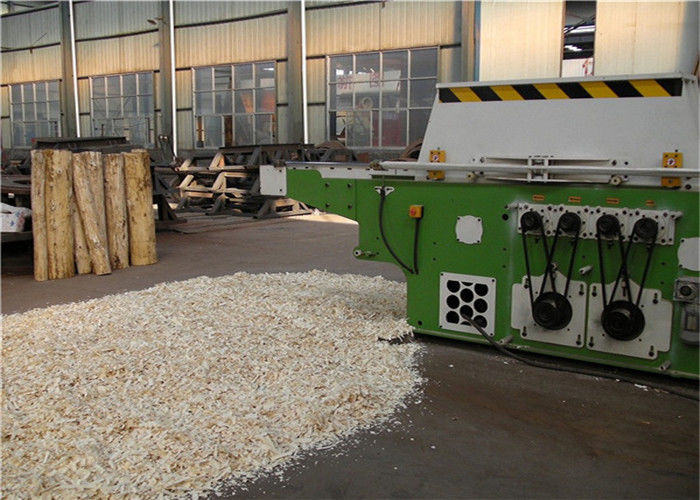

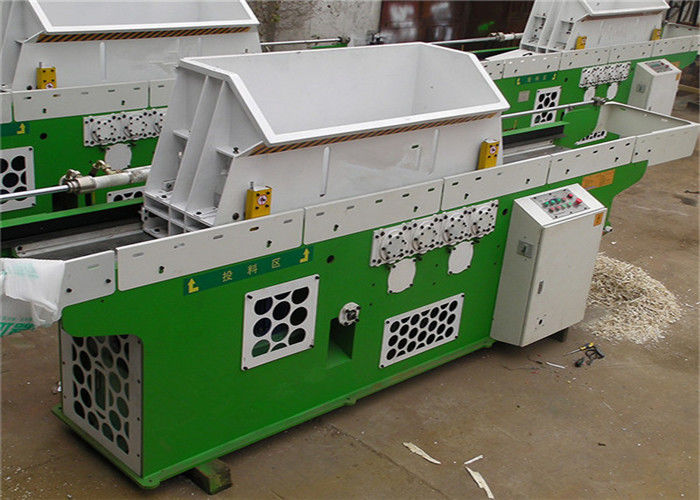

Picture of Wood Shaving Machine
Advantages of Wood Shaving Mill
1. Automatic feeding equipment, greatly improve the production speed, it also saves time and manpower.
2. Simple operation, high productivity; compact structure, convenient maintenance.
3. Preventative System for Wood Jamming, conveyor feeding shavings out.
4. Energy-saving, small investment, good economic benefits.
5. Powerful working system, safety Protection, high quality blade, long service life, cost saving.
6. Shaving wood size can be adjusting by yourself, meet customer different requirements, high efficiency and high quality.
7. Energy can be alternative of electric and diesel, meet the needs of customers of different countries and regions.
8. Machine can work continuously and shorten work time, improve work efficiency and create more business value.
9. Widely application, can processing logs, branches, edge into shavings, high speed, low loss rate.
Final Product Display
Working Principle of Wood Shaving Mill
1. log into the feed port. When starting the machine, turn back and forth, hydraulic pressure, down to the planer plane, after the blade is awesome, blow out the box under the air blow.
2. The wood shaving mill is mainly composed of shell, knife roller, motor, power distribution cabinet, hydraulic system, etc. Its frame is welded with high strength steel plate, which is the support foundation of the whole wood shaving machine.
3. The blade installed on the cutter roller is fixed on the knife roller by the blade bolt made by the professional manufacturer through the pressure block; it can be adjusted up and down within a certain range according to the thickness of the shaving.
4. Cutter roller of wood shaving machine: stop the machine, open the cover and replace the blade.
Photos From Workshop
Packing & Delivery
After Sales Service
1. One year for machinery warranty.
2. We have the cheap spare parts supply.
3. We can sent engineer to install and maintain on site.
FAQ
1)Are you a factory or trade company?
We have our own factory as an international supplier, a professional manufacturer and a general international trader.
2) How can I trust your company?
1.Henan Wheat Import And Export Company Limited, established in 2005, located in Zhengzhou City--Capital of Henan Province, the center of China mainland.
2.We have special QC department, testing every single equipment, from voltage to appearance, our workers will inspect strictly in order to supply the best and most stable machine for our customers.
3.Our equipment are strictly designed and produced according to CE standard, we care for every details and the quality.
3) How long is your delivery time?
Generally it is 30 days after received your deposit.
4) Is your price competitive?
We can provide the highest quality machines at the best price.
Our products are sold all over the world, you can rest assured.
