25kw Horse Farm Wood Shaving Mill 1200kg/H 3800rpm

25kw Horse Farm Wood Shaving Mill 1200kg/H 3800rpm

  • High Light

    25kw Horse Farm Wood Shaving Mill


    Wood Shaving Mill 1200kg/H


    3800rpm Farm Wood Shaving Mill

  • Name
    Wood Shaving Machine
  • Certification
  • Condition
  • Power
  • Capacity
  • Dimension(l*w*h)(cm)
  • Warranty
    1 YEAR
  • Weight
  • Place of Origin
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Packaging Details
    Plywood case and film
  • Delivery Time
    7-30 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Sets per Month

25kw Horse Farm Wood Shaving Mill 1200kg/H 3800rpm

Wood Shaving Mill Capacity 1200-1500kg/h Produce Shavings for Horse Farm, Chicken Farm, And Pet Bedding

Introduction of Wood Shaving Mill

Wood Shaving Mill is designed to produce wood shavings in desired and suitable size applicable for to animal bedding for chicken farming and horse breeding sectors. Raw materials can be logs, tree branches, boards, and old pallet etc.


Wood Shavings Mill process scrap existing welding technology using the old embedded technology is the equipment for more fine, firm, durable and high quality parts and components equipped, cutting tools imported from Germany, durable transmission mode using hydraulic transmission, stable performance, low noise.Using full automation, easy to operate, safe and reliable is an essential mechanical equipment for particleboard pet bedding.It is a large, medium and small horse farm, chicken farm, pet mice, flower breeding and other applicable equipment and advanced technology is the advantage of shader thickness uniformity can be arbitrarily adjusted without dust pollution.


Technical Parameters of Wood Shaving Mill
Name Wood Shaving Mill
Model 1460-4
Number of cutter heads 4
Length of blade 60cm
Number of blades 7*4=28
Power supply 380v-50hz-3p
Total power 25kw
Cutter head speed 3800rpm
Cutter head diameter 158 mm
Shaving depth 0.5-2mm
Max. Log input length 140cm
Max.log input width 60cm
Working distance 1700mm
Machine dimensions 380*155*135cm
Weight 3000kg
Capacity 1200-1500kg/h

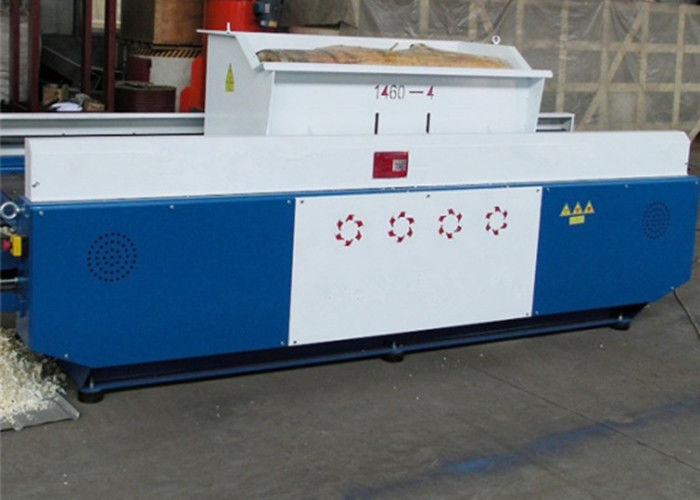

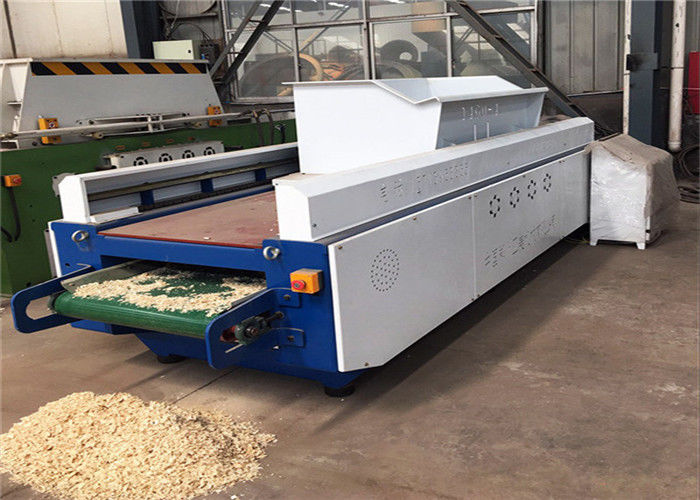

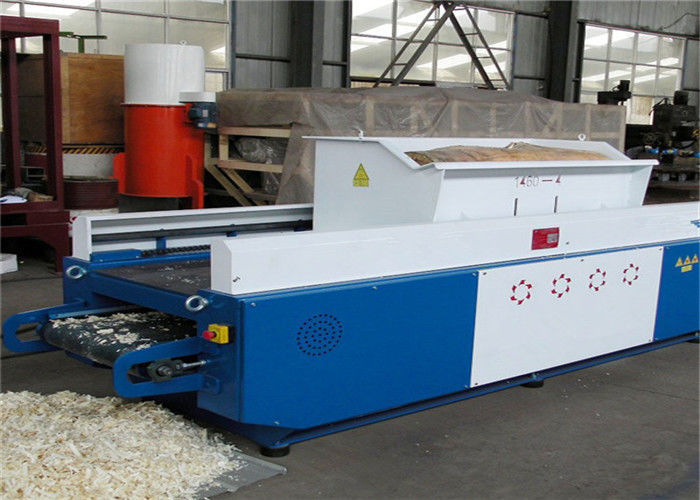

Picture of Wood Shaving Mill

25kw Horse Farm Wood Shaving Mill 1200kg/H 3800rpm 0


25kw Horse Farm Wood Shaving Mill 1200kg/H 3800rpm 1


Advantages of Hydrauilc Wood Shaving Mill

1.Advance technology, base on Turkey process technology, do some improvement on its design, in steady of welding connection, we use punching and embed method which avoid loosing with the machine when its running.

2. High quality spare part, for the blade is HSS, and the bearing, which can be use a long time and quite durable.

3. Hydraulic Transmission, stable performance and low noise.

4. Widely use, our machine can produce small volume and light wood shavings which can be used in paper mill, transportation filler and animal bedding etc.


Final Product Display

25kw Horse Farm Wood Shaving Mill 1200kg/H 3800rpm 2


Working Principle of Wood Shaving Mill

1.log into the feed port. When starting the machine, turn back and forth, hydraulic pressure, down to the planer plane, after the blade is awesome, blow out the box under the air blow.

2.The wood shaving machine is mainly composed of shell, knife roller, motor, power distribution cabinet, hydraulic system, etc. Its frame is welded with high strength steel plate, which is the support foundation of the whole wood shaving machine.

3.The blade installed on the cutter roller is fixed on the cutter roller by the blade bolt made by the professional manufacturer through the pressure block, which can be adjusted up and down within a certain range according to the thickness of the shaving.

4.Cutter roller of wood shaving machine: stop the machine, open the cover and replace the blade.


Photos From Workshop

25kw Horse Farm Wood Shaving Mill 1200kg/H 3800rpm 3

25kw Horse Farm Wood Shaving Mill 1200kg/H 3800rpm 4


Packing & Delivery

25kw Horse Farm Wood Shaving Mill 1200kg/H 3800rpm 5




After Sales Service

1. One year for machinery warranty.


2. We have the cheap spare parts supply.


3. We can sent engineer to install and maintain on site.



1)Are you a factory or trade company?

We have our own factory as an international supplier, a professional manufacturer and a general international trader.


2) How can I trust your company?

1.Henan Wheat Import And Export Company Limited, established in 2005, located in Zhengzhou City--Capital of Henan Province, the center of China mainland.

2.We have special QC department, testing every single equipment, from voltage to appearance, our workers will inspect strictly in order to supply the best and most stable machine for our customers.

3.Our equipment are strictly designed and produced according to CE standard, we care for every details and the quality.


3) How long is your delivery time?

Generally it is 30 days after received your deposit.


4) Is your price competitive?

We can provide the highest quality machines at the best price.
