Introduction of Wood Shaving Machine
A wood shaving machine, also known as a wood shaver or wood chipper, is a mechanical device designed to convert wood logs, timber, or waste wood into thin shavings or chips. It plays a crucial role in various industries such as animal bedding production, poultry farming, horse stables, and biomass energy production.
The primary function of a wood shaving machine is to process wood material into uniform shavings or chips. The machine typically consists of a feeding mechanism, a cutting mechanism, and an outlet for the discharged shavings. The cutting mechanism can be powered by an electric motor, a diesel engine, or other power sources, depending on the specific machine.
The operation of a wood shaving machine involves feeding the wood material into a hopper or chute. The machine's cutting mechanism, which usually consists of sharp blades or knives, rotates at high speed. As the wood material passes through the blades, it is cut into thin shavings or chips, which are then discharged through the outlet.
Wood shaving machines are versatile and can handle various types of wood, including softwood and hardwood, as well as different sizes and shapes of logs or timber. They can be adjusted to produce shavings of different thicknesses and sizes, depending on the intended application.
The applications of wood shaving machines are diverse and widespread. Some of the common applications include:
Animal Bedding: Wood shavings are widely used as bedding material for livestock, such as horses, poultry, and small animals. The soft and absorbent nature of wood shavings provides a comfortable and hygienic environment for animals, promoting their health and well-being.
Poultry Farming: Wood shavings are used as bedding material in poultry farms to provide a clean and comfortable surface for the birds. They help to absorb moisture and control odors, maintaining a healthy and sanitized environment.
Horse Stables and Equestrian Facilities: Wood shavings are commonly used as bedding material in horse stables. They provide cushioning, insulation, and moisture absorption, creating a comfortable and clean surface for the horses.
Biomass Energy Production: Wood shavings can be utilized as a biomass fuel source in biomass power plants or heating systems. They can be compacted into pellets or briquettes for efficient combustion, contributing to renewable energy generation.
Packaging and Transportation: Wood shavings are used as cushioning and protective material in packaging fragile items or for filling voids in shipping containers. They help to prevent damage during transportation.
Horticulture and Gardening: Wood shavings can be used as mulch in gardening and landscaping projects. They help to conserve moisture, control weed growth, and insulate plant roots.
Techncal Parameters of Wood Shaving Machine
Name | Wood Shaving Machine |
Model | 145 |
Total Power | 42kw |
Hopper Size | 140*50cm |
Capacity | 1500-2000kg/h |
Voltage | 380V/50HZ/Or customized |
Weight | 4000kg |
Dimensions | 515*115*180cm |

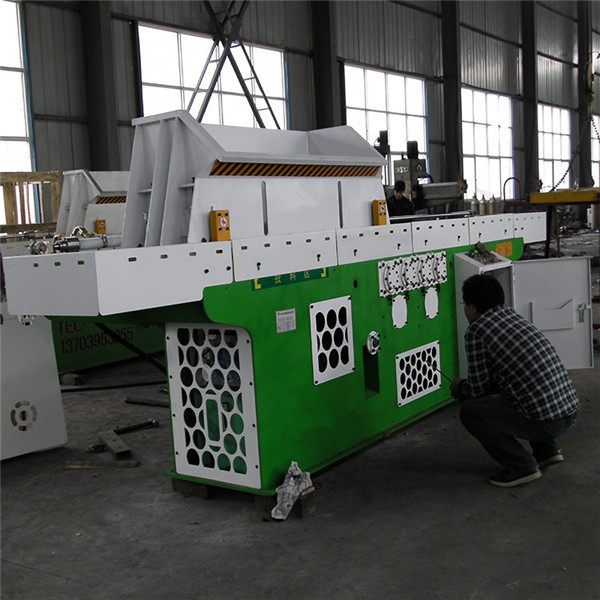

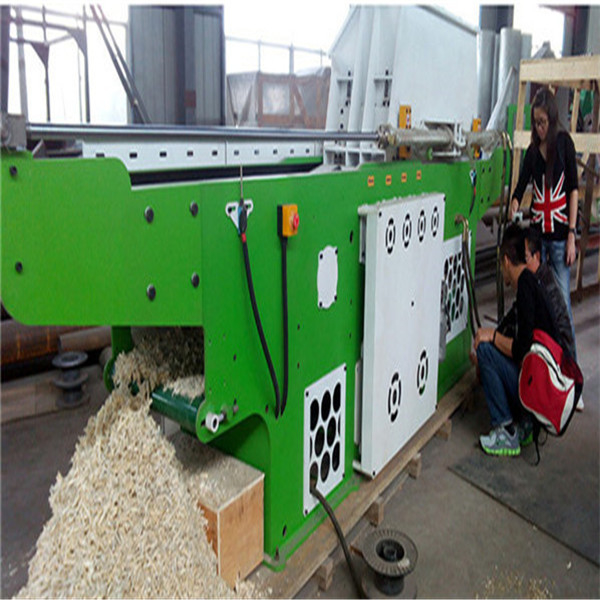

Pictures of Wood Shaving Machine
Display of Finished Shavings
1. log into the feed port. When starting the machine, turn back and forth, hydraulic pressure, down to the planer plane, after the blade is awesome, blow out the box under the air blow.
2. The wood shaving machine is mainly composed of shell, knife roller, motor, power distribution cabinet, hydraulic system, etc. Its frame is welded with high strength steel plate, which is the support foundation of the whole wood shaving machine.
3. The blade installed on the cutter roller is fixed on the knife roller by the blade bolt made by the professional manufacturer through the pressure block; it can be adjusted up and down within a certain range according to the thickness of the shaving.
4. Cutter roller(shift) of wood shaving machine: stop the machine, open the cover and replace the blade.
Photos From Workshop
Packing & Delivery
After Sales Service
1. One year for machinery warranty.
2. We have the cheap spare parts supply.
3. We can sent engineer to install and maintain on site.
FAQ
1)Are you a factory or trade company?
We have our own factory As an international supplier, a professional manufacturer and a general international trader.
2) How can I trust your company?
1.Henan Wheat Import And Export Company Limited, established in 2005, located in Zhengzhou City--Capital of Henan Province, the center of China mainland.
2.We have special QC department, testing every single equipment, from voltage to appearance, our workers will inspect strictly in order to supply the best and most stable machine for our customers.
3.Our equipment are strictly designed and produced according to CE standard, we care for every details and the quality.
3) How long is your delivery time?
Generally it is 30 days after received your deposit.
4) Is your price competitive?
We can provide the highest quality machines at the best price.
