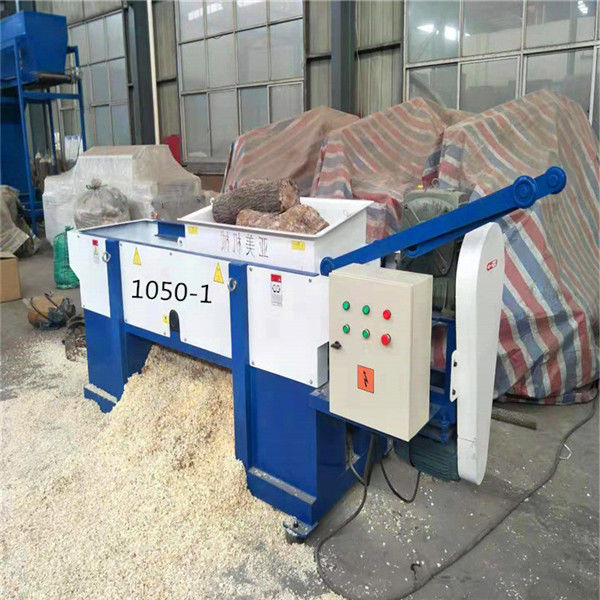

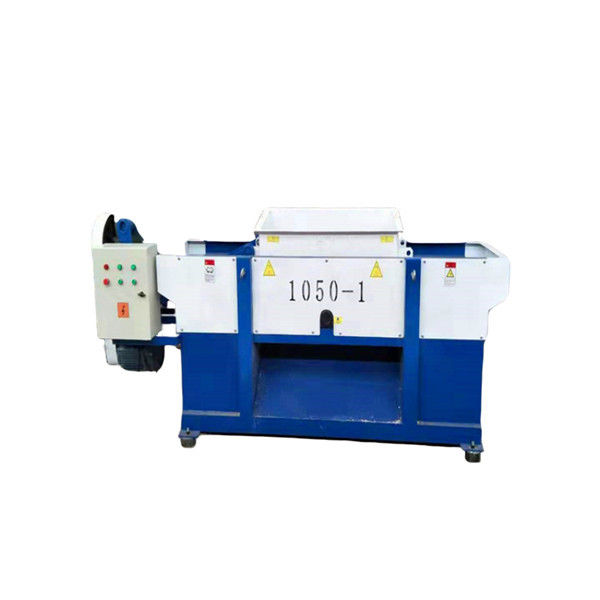

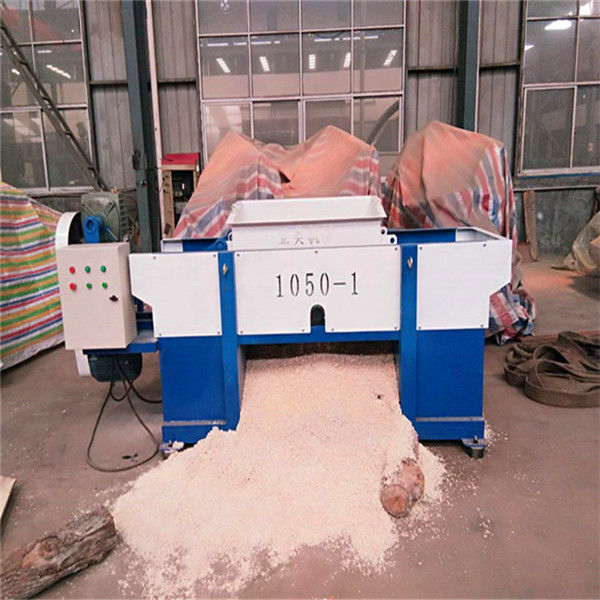

300kg/H Wood Shaving Machine

Y-1050 Capacity 300kg/h wood shaving making machine Shaft the made in china

Wood shavings machine, also known as shavings mill, shavings machine, wood shavings machine, wood shavings processing equipment, shavings mill.Wood shavings machine is a kind of automatic wood shavings machine, which is mainly used for mass production of thin flake shavings with uniform thickness.It consists of a frame, a platform placed on the frame, and a tool holder fixed on the platform. Wood enters the machine through the feeding port, and after cutting the blade inside the machine, wood shavings are made. The shavings that come out are uniform in size and thickness, no different from the shavings hand-made by the wood factory.

Working principle of wood shavings machine:

1. Put the log in the feed port, turn it back and forth when starting the machine, give hydraulic power, press it down to the plane of the machine planer, and then after cutting through the knife and stick, blow out the box under the airflow.

2. The wood shavings mainly consist of casing, cutter roller, motor, power distribution cabinet, hydraulic system and other parts.Its frame is welded with high strength steel plates, which is the supporting foundation of the whole wood shavings machine.

3. The blade mounted on the knife roller is fixed on the knife roller with a specially manufactured blade bolt through a pressure block;According to shavings thickness requirements in a certain range can be adjusted up and down.

Performance characteristics of wood shavings:

1. Introduce advanced European technology and technology without installation

2. Hydraulic transmission (hydraulic technology is adopted in the transmission part to ensure the stability of equipment operation)

3. Four-axis planing (improve shavings)

4. Use Schneider components for electrical control

5. The whole structure is made by laser cutting and CNC machining center (to ensure the interchangeability of machine parts)

6. The size and thickness of shavings can be adjusted at will (adapt to different market demands)

7. High degree of automation equipped with automatic feeding system, greatly reducing labor costs.

It is an extended mechanical wood shavings machine with the advantages of low cost, unchanged working property, adjustable thickness and all kinds of wood.
