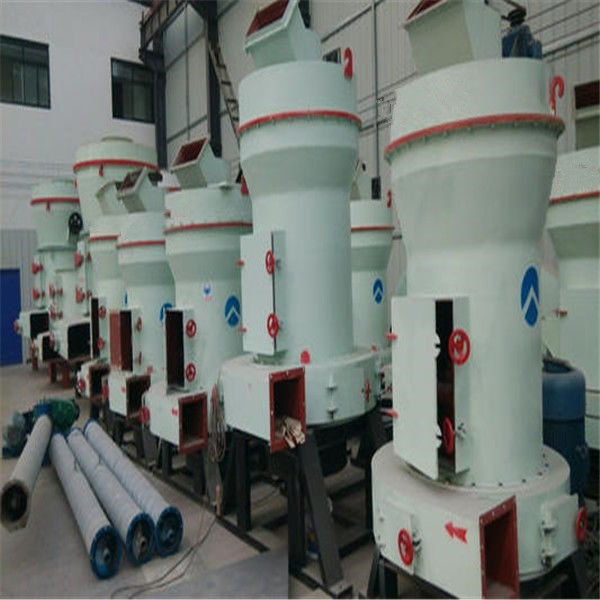

Introduction:
5R series cyan color gypsum raymond mill is suitable for building materials, chemical industry, metallurgy, pharmaceutical, abrasives, mining and other industries. It is suitable for more than 100 kinds of materials, such as barite, limestone, marble, calcite, quartz stone, talc powder, gypsum powder, kaolin, bentonite, borosilicate, quartz sand, manganese ore, chrome ore, corundum, gold powder, Changbai stone, coal gangue, bauxite, silicon carbide, red mud powder, miscellaneous bone, etc .
Materials are crushedne one time feeding powder, fineness can be adjusted between 60-500 mesh. The output and fineness of the equipment are determined according to the characteristics of the materials, excluding the materials with special economy and toughness. The hardness of the material should not be greater than 7.5 and the moisture content should be less than 8%.
Working principle:

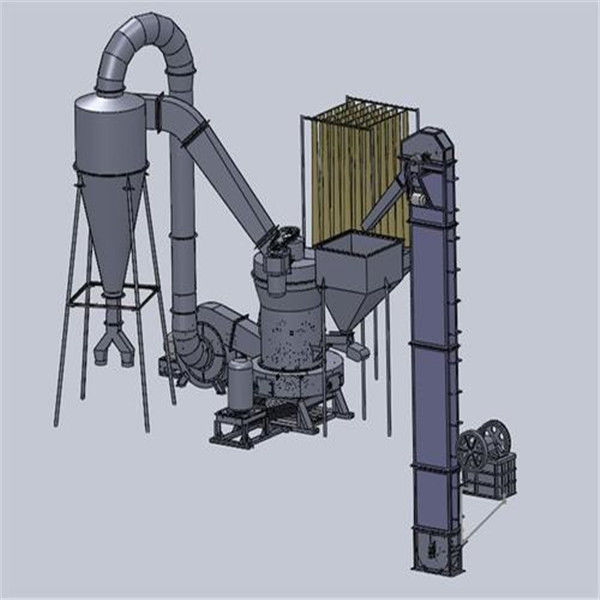

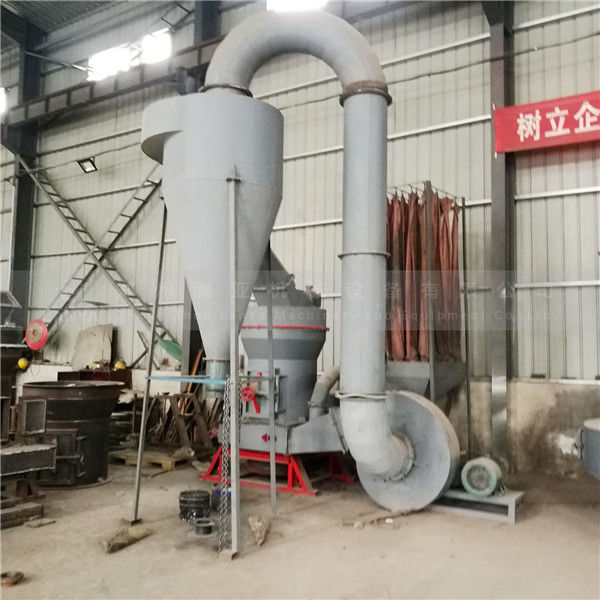

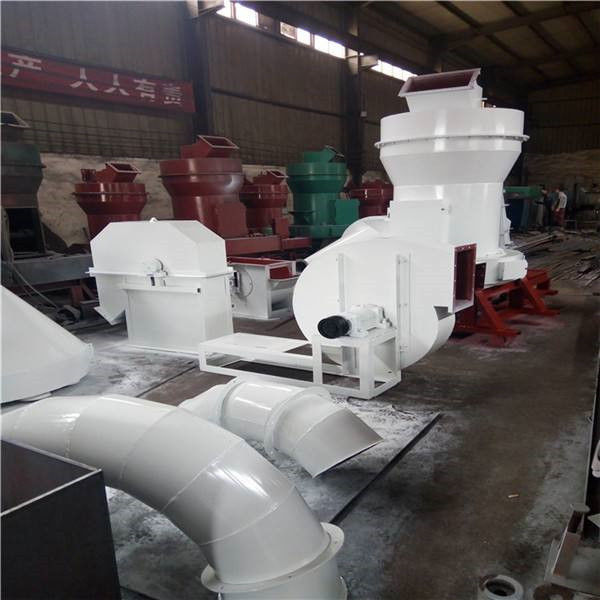

The structure of 5R raymond mill is composed of main engine, analyzer, pipeline device, blower, jaw crusher, bucket elevator, electromagnetic vibration feeder and electric motor.
After the bulk material is crushed to the required size by jaw crusher, the material is sent to the storage bin by the elevator, and then evenly and quantitatively sent to the grinding room of the main machine for grinding by the vibration feeder. The powder after grinding is carried away by the air flow of the fan, and then graded by the analyzer. The powder with the fineness enters into the cyclone collector with the gas flow through the pipeline for separation and collection, and then the powder is discharged The finished powder is discharged from the tube. The airflow enters the blower from the upper return duct of the cyclone collector. The whole air flow system of this machine is closed circulation and circulates under positive and negative pressure.
Advantage:
1. The product has a wide range of particle size, the coarsest particle size is 0.613 mm (30 mesh), the particle size is generally up to 0.033 mm (425 mesh), and the fineness of a few materials can reach 0.013 mm (1000 mesh).
Technical Parameters:
Model | 5R4119 | 5R4121 |
Grinding roller number | 55 | |
Grinding roller diameter*height(mm) | Φ410*190 | |
Grinding ring inner diameter*height(mm) | Φ1280*210 | |
Host speed(r/min) | 130 | |
Maximum feed size(mm) | 30 | |
Finished particle size(mm) | 0.613-0.044 Finish reach 0.013 | |
Capacity(t/h) | 5-15 | |
Dimensions(mm) | 7850*8000*9700 or 9200*7250*9700 | |
Weight(t) | 26.1 |
