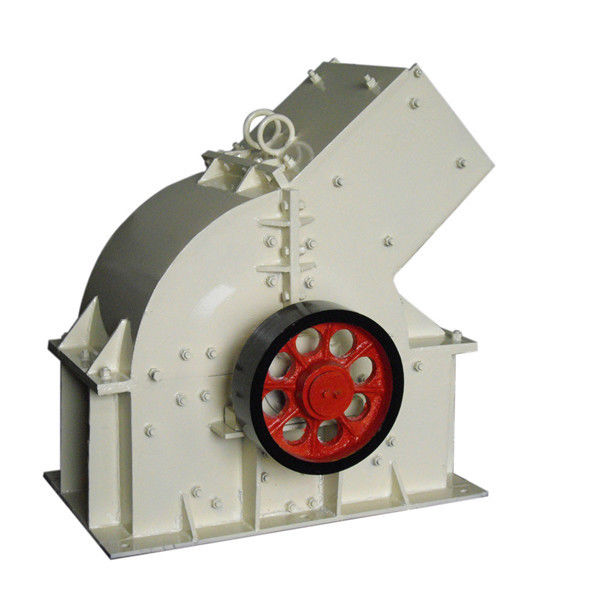

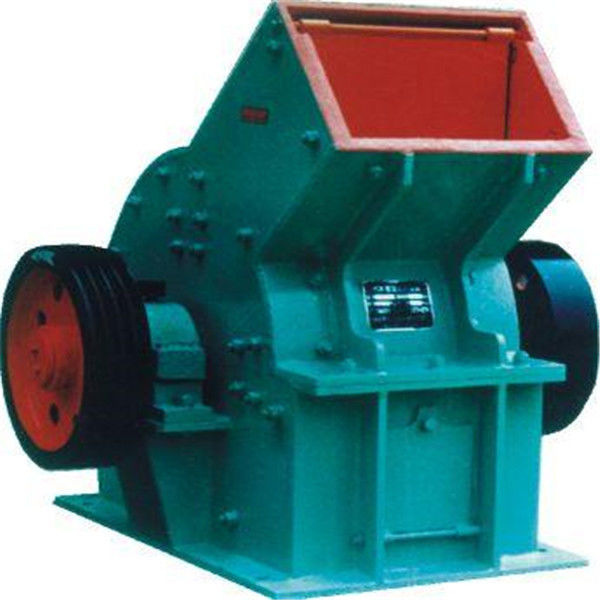

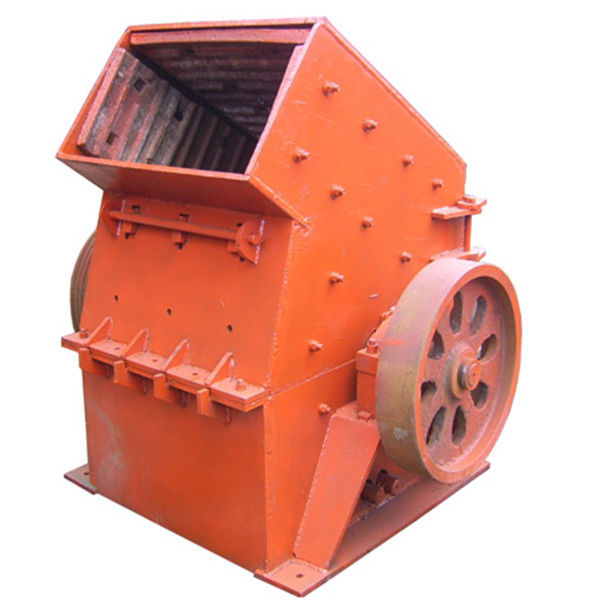

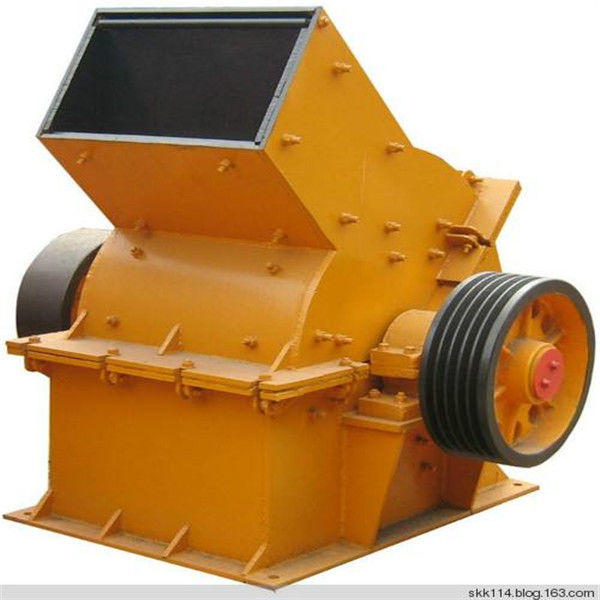

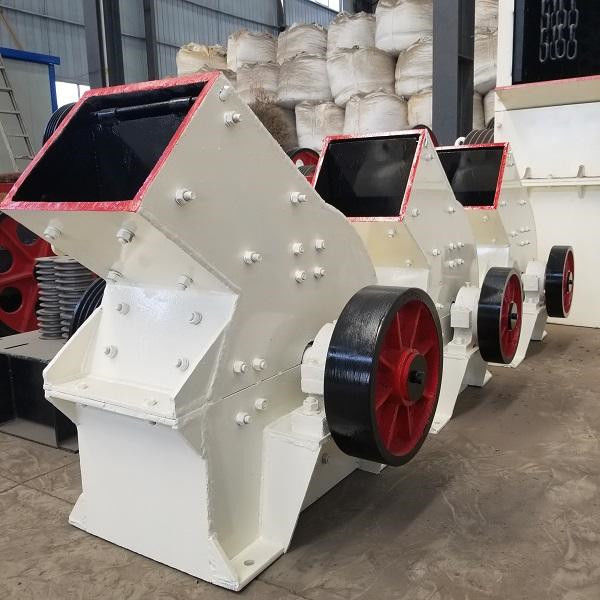

Heavy Hammer 10t/H 40mm Stone Crusher Machine

PC Series Green Color Heavy Hammer Crusher Used In Crushing Wet Materials Coal Salt Ore Stone

Introduction:

The hammer crusher (hammer mill) crushes by the collisions between high-speed hammer and materials, and the hammer crusher(hammer mill) features are its simple structure, high reduction ratio, high efficiency, etc. The PC series hammer crusher were developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building and petroleum & chemical industries. The material discharge size can be adjusted by change the gap of the grid screen, to meet the different needs of different needs of different users. Heavy hammer crusher can be directly used for material crushing without initial crushing.

Hammer crusher also known as hammer crusher, referred to as hammer crusher. It is composed of box, rotor, hammer, impact lining plate, sieve plate, etc. The material is broken mainly by impact. The material enters the hammer crusher through the feeding device. The high-speed rotating hammer head and the falling material collide to crush the material. The structure is simple and the crushing ratio is large. It can be broken in dry and wet forms.

Working pricile:

Hammer crusher mainly depends on impact energy to complete the crushing operation. When the hammer crusher is working, the motor drives the rotor to rotate at a high speed, and the materials enter the crusher chamber evenly. The high-speed rotating hammer head impacts, cuts and tears the material, which causes the material to be broken. At the same time, the gravity of the material itself makes the material rush from the high-speed rotating hammer head to the baffle plate and screen bar in the frame, and the material larger than the screen hole size will stay on the sieve plate and continue to be hit by the hammer Grind until it is crushed to the required discharge size, and finally discharged out of the machine through the sieve plate.

When the materials get into the working area of hammers, the rotating hammers with high rotation speed will crush them, and the products which are crushed to meet the required size can be discharged by the outlet and become the final products, then the large size products are brought back to the crushing area by the hammers for being crushed until they reach the required size.

Advantage:

1. Large feed size and high crushing chamber are suitable to crush hard and big materials.
2. Space between impact plates and hammers can be adjusted conveniently, so the shape and size of final product can be controlled.
3.High crushing ratio. The crushing ratio ranges from 10mm to 25 mm or even higher to 50mm.
4.The military high strength artillery steel spindle is designed with vacuum duplex which increases the strength by 3-4 times.

Techncal parameters:
