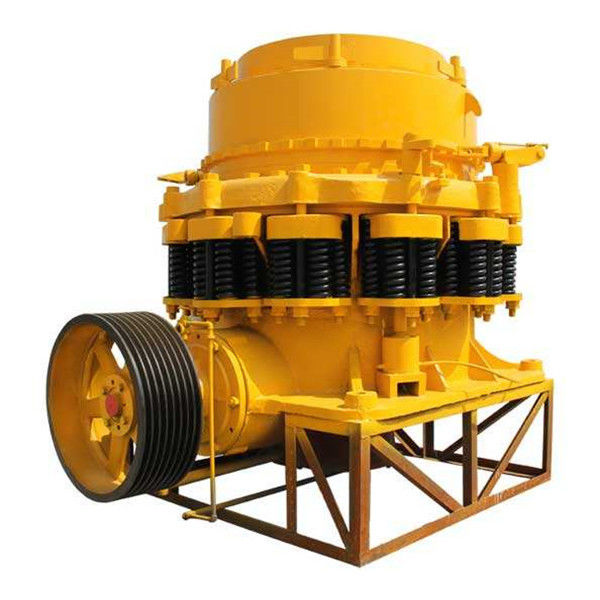

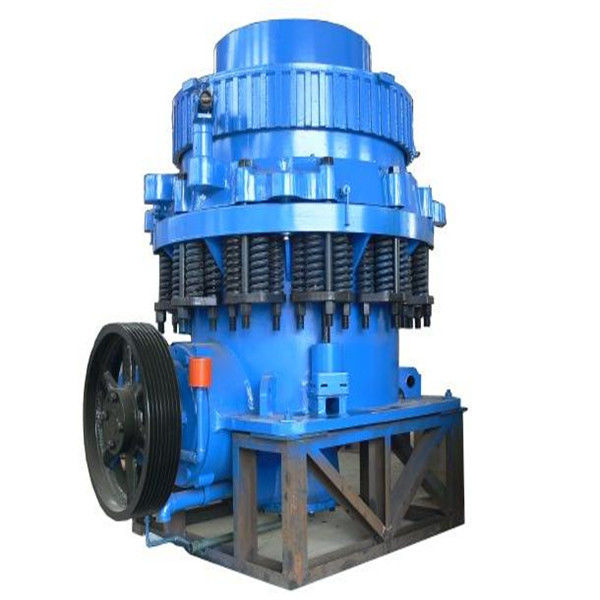

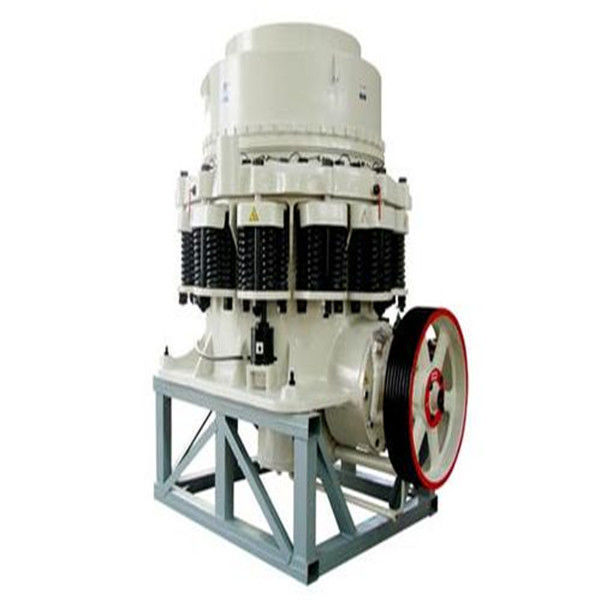

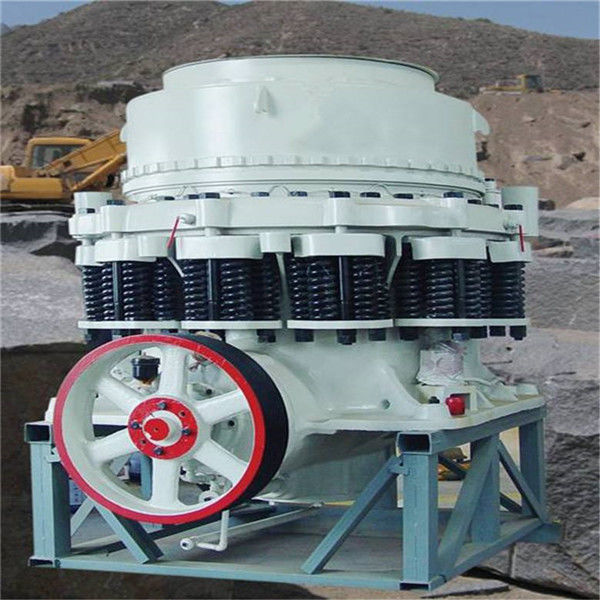

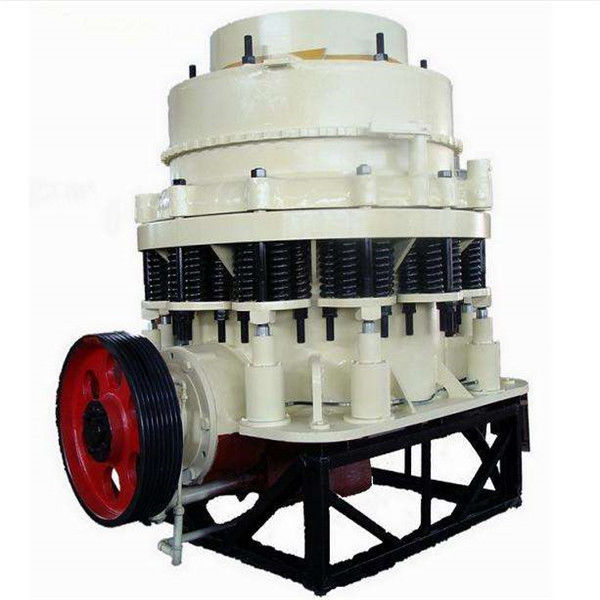

Spring Cone 435r/Min 4732mm Height Stone Crusher Machine

Spring Cone 435r/Min 4732mm Height Stone Crusher Machine

  • High Light

    4732mm Height Stone Crusher Machine

    ,

    435r/Min Stone Crusher Machine

    ,

    435r/Min marble crusher machine

  • Name
    CS-Series Spring Cone Crusher
  • Type
    Cone Crusher
  • Application
    Mining,Quarry,highway
  • Certification
    CE
  • Product Name
    Spring Cone Crusher
  • Power(kw)
    75-315
  • Color
    Blue
  • Warranty
    12 Months
  • Place of Origin
    CHINA
  • Brand Name
    ShuGuang
  • Certification
    CE
  • Model Number
    CS-Series Spring Cone Crusher
  • Minimum Order Quantity
    1 Set
  • Price
    $2,000.00-$20,000.00/Set
  • Packaging Details
    Standard export containers, bare main machine, motors and small parts are packed in wooden cases
  • Delivery Time
    7-30 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    80 sets per month

Spring Cone 435r/Min 4732mm Height Stone Crusher Machine

CS-Series Spring Cone Crusher Crushing Non-Ferrous Metal Ore Granite Basalt Pebble Quartzite Sandstone

Introduction:

Based on the introduction of foreigh technologies,multi-laminated broken crushing and less milling and according to customers' needs the CS-series spring cone crusher which combines the high-frequency,optimized cavity and reasonable strokes together.Practices have proved that CS-series spring cone crusher wins the worldwide customers' trust by its excellent performance,reliable quality and cost-effective ratio.



CS-series spring cone crusher is widely used in metals and non-metallic minerals.cement,construcation,metallurgy,transport,sand and gravel production and especially for iron ore,gold ore.non-ferrous metal ore,granite,basalt,pebble,quartzite,sandstone,limestone and other hardness and medium hardness ore and rock.



CS-series spring cone crusher is applied in gravel construction and artificial sand processing especially in crushing hard material such as basalt. it is not only of high efficiency and low production costs but also of excellent shape ans high-quality sand and gravel aggregate.



CS-series spring cone crusher is used in black and non-ferrous metal ore-dressing process. It can reduce the partical size of the ore effectively entering the mill and realizes the more crushing and less milling.This not only improves the capacity of the mill,but also saves electric and steel to improve the economic benefits of selected plants.



Working pricile:

When the spring cone crusher works, the rotation of the motor will rotate around the fixed point around a circle under the forced action of the eccentric sleeve through the pulley or coupling, the drive shaft of the crusher and the cone part of the crusher. As a result, the crushing wall of the crushing cone sometimes gets close to and sometimes leaves the surface of the mortar wall fixed on the adjusting sleeve, so that the ore is continuously impacted, squeezed and bent in the crushing chamber to realize the ore crushing.



Advantage:

1. Cost saving: CS series spring cone crusher covers a very small area. How expensive the land is today, it can also save a lot of land costs. In addition, it is small in size, light in weight and easy to move, which attracts many investors.
2. Intelligent safety: full automatic control system and touch screen control mode are adopted. The operator can sit in the monitoring room for real-time monitoring. The operation is simple and convenient. The higher the safety factor of the equipment is, a new generation of protection circuit is installed to ensure the safety.

3. High output: the main shaft adopts wear-resistant steel and cast steel technology to improve the wear resistance of the equipment and reduce the failure rate of the equipment. The laminated crushing principle is adopted to achieve higher production efficiency. At the same time, it avoids the problems of uneven particles and damage when the equipment is crushing materials, and the particle size can be adjusted arbitrarily according to its own needs.
4. Green environmental protection: the overall sealing is strengthened, the dust inside the crusher is reduced and the ash leakage of the machine body is reduced. At the same time, the dust remover and silencing equipment are set up to realize the green environmental protection production, and the work is more energy-saving and lower carbon operation.



Techncal parameters:

Model Dia.mm(mm) Cavity Feed opeing Outlet setting(mm) Shaft speed(r/min) Power(kw) Capacity(t/h) Weight(t) Dimenson(mm)
Closing side(mm) Open side(mm)
CS-75B 900 Fine 83 102 9-22 580 75 45-91 15 2821*1800*2164
Coarse 159 175 13-38 59-163
CS-110B 1200 Fine 127 131 9-31 485 110 63-188 20 2821*1974*2651
Medium 156 156 13-38 100-200
Coarse 178 191 19-51 141-308
CS-160B 1295 Fine 109 137 13-31 485 160 109-181 27 2800*2342*2668
Medium 188 210 16-38 132-253
Coarse 216 241 19-51 172-349
CS-240B 1650 Fing 188 209 16-38 485 220 181-327 55 3911*2870*3771
Medium 213 241 22-51 258-417
Coarse 241 268 25-64 299-635
CS-315B 2134 Fine 253 278 19-38 435 315 381-726 110 4613*3251*4732
Medium 303 334 25-51 608-998
Coarse 334 369 31-64 789-1270


Spring Cone 435r/Min 4732mm Height Stone Crusher Machine 0Spring Cone 435r/Min 4732mm Height Stone Crusher Machine 1Spring Cone 435r/Min 4732mm Height Stone Crusher Machine 2
