Introduction:
Stone production line is the special equipment for building, highway, railway etc;It is widely used in crushing and processing of limestone, graystone, granite, pebbles and other mineral, the quality of finished product reach GB14685-2001 standards completely;It provide the high quality stone and sand for the high grade highway, railway, water conservancy, concrete mixing plant and other industries.

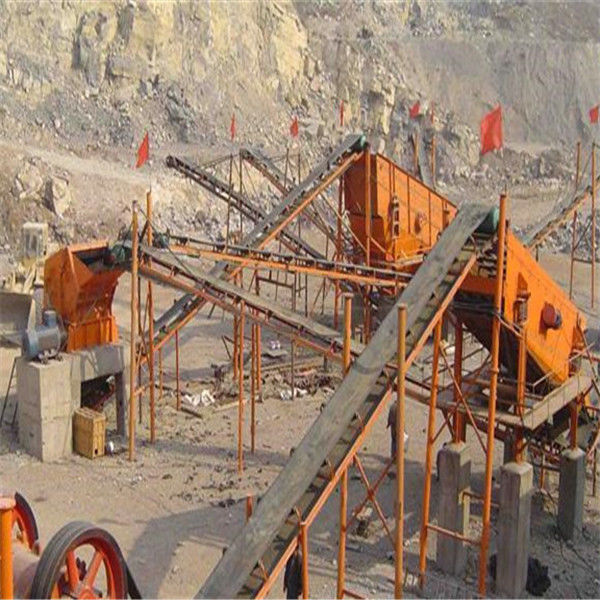

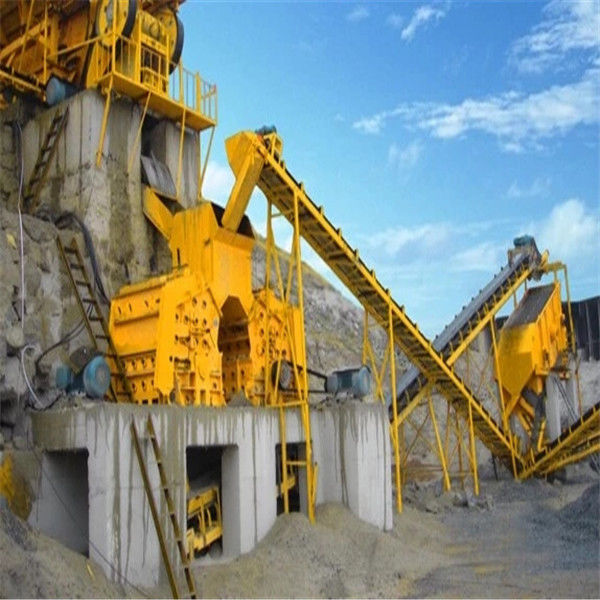

Stone Crusher Plant includes vibrating feeder, jaw crusher, impact crusher, vibratingscreen, belt conveyor and centrally electric controlling system, etc.The designed capacity of stone crushing machinery equipment production line is from 50t/h to 500t/h. To meet customers specific requirement, we can also add other equipments such as cone crusher, dust catcher on the production line.
Stone Crusher Plant Working Process:

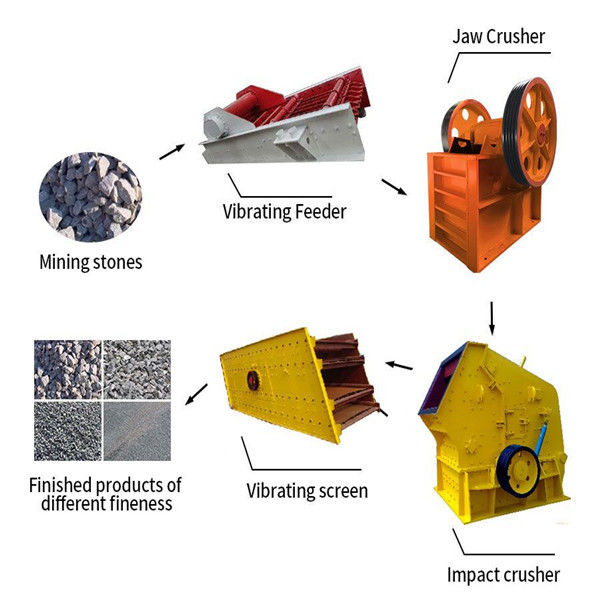

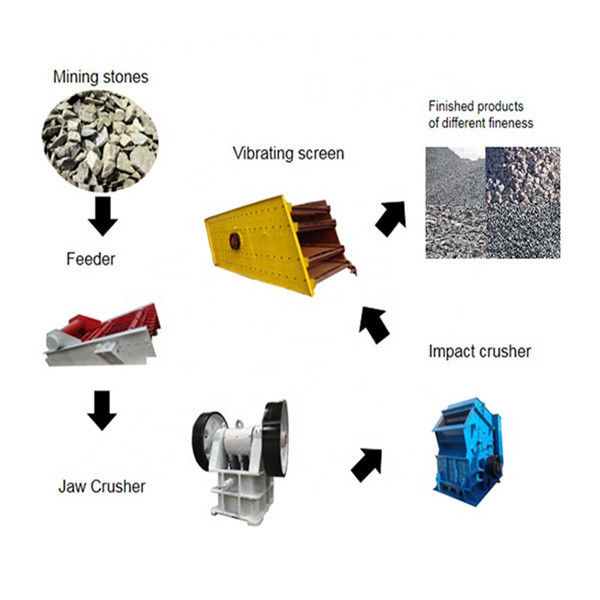

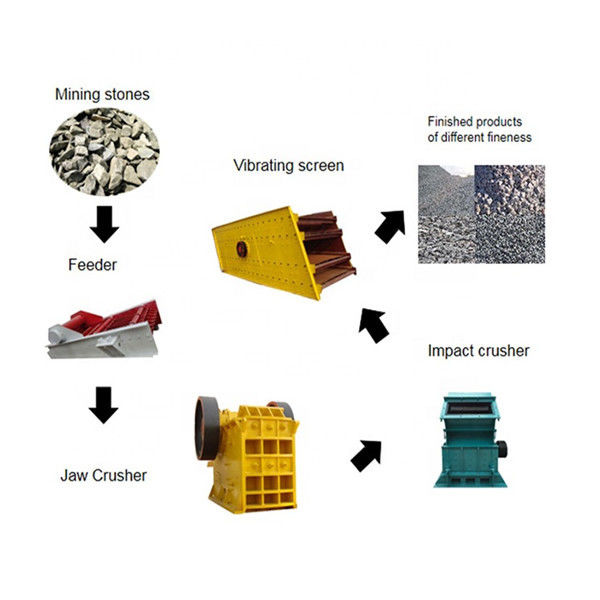

Big materials are fed to the jaw crusher of stone crushing machinery equipment production line evenly and gradually byvibrating feeder through a hopper for primary crushing. After first crush, the material will transferred to impact crusher by belt conveyorfor secondary crush; the crushed materials will then transferred tovibrating screen for separating.This step is very important in stone crushing machinery equipment production line. After separating, the parts that can meet standard will be transferred away as final products, while the other parts will be returned to impact crusher, thus forming a closed circuit. Size of final products can be combined and graded according tocustomers specific requirement. We can also equip dust catcher systemto protect environment.
Advantage:
1. V-shaped structure crushing cavity is able to meet a big feeding.
2. Movable jaw assembly adopts a high-quality steel casting and heavy eccentric shaft has also adopted forging billet for processing.
3. Use of finite element analysis technology helps to reach both light weight and high reliability.
4. Equipped with wedge adjustment devices, enable to realize automatic control and stepless adjustment.
Techncal parameters:
| Model | Max. feed size(mm) | Capacity(t/h) | Main machine model and specification | |||||
| Feeding device | Primary crushing | Secondary ceushing | Sieving machine | Belt conveyor(m) | Power(kw) | |||
| 1 | 340 | 30 | GZD2511(3kw) | PE400x600(30kw) | PF1007(45kw) | 3YZ1236(15kw) | 60-90(20kw) | 120 |
| 2 | 340 | 50 | GZD3117(10kw) | PE400x600(30kw) | PF1007(45kw) | 3YZ1545(22kw) | 100-130(kw) | 140 |
| 3 | 420 | 80 | GZD3617(10kw) | PE500x750(55kw) | PF1010(75kw) | 3YZ1548(22kw) | 130-160(kw) | 200 |
| 4 | 480 | 100 | GZD4321(13kw) | PE600x900(75kw) | PF1210(130kw) | 3YZ1548(22kw) | 140-180(40kw) | 280 |
| 5 | 560 | 150 | GZD4321(13kw) | PE750x1060(90kw) | PF1210(130kw) | 3YZ1845(22kw) | 200-240(50kw) | 350 |
| 6 | 630 | 200 | GZD4321(13kw) | PE900x1060(110kw) | PFB1212(140kw) | 3YZ2050(30kw) | 200(40kw) | 350 |
| 7 | 630 | 250 | GZD5027(17kw) | PE900x1060(110kw) | PFB1214(180kw) | 3YZ2050(30kw) | 200(40kw) | 400 |
| 8 | 630 | 300 | GZD5027(17kw) | PE900x1200(110kw) | PFB1214(180kw) | 3YZ2160(30kw) | 250(50kw) | 450 |
| 9 | 700 | 350 | GZD5027(17kw) | PE1000x1200(132kw) | PFB1315(250kw) | 3YZ2160(30kw) | 250(50kw) | 500 |
| 10 | 700 | 450 | GZD6223(28kw) | PE1000x1200(132kw) | PFB1214/2(300kw) | 3YZ2145/2(60kw) | 350(60kw) | 600 |
stone production line compose:
Feeding device-------------Vibrating feeder
Primary crushing------------Jaw crusher
Secondary crushing--------Impact crusher
Sieving equipment-----------Vibrating screen
There will be connected by belt conveyor between every equipment.According to different requirement of our customers,we have different capacity of stone production line 50-500 ton/hour.We will provide the most reasonable and economical equipment configure plan based on your specific demands such as outlet stone size,capacity,usage etc.
Our products are sold all over the world, you can rest assured.
