Mobile 54t 250t/H 350mm Feed Stone Crusher Machine

Mobile 54t 250t/H 350mm Feed Stone Crusher Machine

  • High Light

    350mm Feed Stone Crusher Machine

    ,

    250t/H Stone Crusher Machine

    ,

    250t/H mobile stone crushing plant

  • Name
    Mobile Stone Crushing Plant
  • Certification
    CE
  • Condition
    New
  • Application
    Mining,Quarry,highway
  • Color
    Yellow,black And Green
  • Capacity(t/h)
    70-250t/h
  • Weight
    28t-54t
  • Warranty
    1 Year
  • Place of Origin
    CHINA
  • Brand Name
    ShuGuang
  • Certification
    CE
  • Model Number
    Mobile Stone Crushing Plant
  • Minimum Order Quantity
    1 Set
  • Price
    $73,200.00-$69,900.00/Set
  • Packaging Details
    Standard Packing Or Packing By Wooden Case Container Transport
  • Delivery Time
    7-30 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    20 sets per month

Mobile 54t 250t/H 350mm Feed Stone Crusher Machine

Mobile Stone Crushing Plant Crushing And Screen Limestone, Marble, Granite, Basalt, River Stone

Introduction:

Mobile stone crushing plant is a new configuration scheme, which combines the equipment needed in the production line with modularization. It occupies a smaller area and has strong mobility. It has all the functions of feeding, screening, transportation and crushing. It has strong freedom and selectivity, and can be applied to many kinds of materials.
Mobile stone crushing plant is mainly consists of Vibrating Feeder, Jaw crusher, Cone crusher and Impact Crusher, Vibrating Screen, Belt Conveyors and Control System, etc.
It is completely capable to crush and screen limestone, marble, granite, basalt, river stone and so on, and produce sand & gravels with various granularities for construction and building industry.





Advantage:

1. Unit integration design
The complete set of mobile stone crushing plant has strong performance, flexible and compact combination, low requirements for the site, and can work anywhere.
2. Strong maneuverability and fast moving speed
Structural design is compact, turning radius is small, and the entrance and exit places are convenient and fast, and can be driven away immediately after finishing.
3. High efficiency and energy saving
Advanced technology, high production efficiency, reduce raw material transportation links, save additional transportation costs.
4. Diversification of equipment According to the different processing needs of customers, provide diversified configuration,single machine, multi-unit cooperative industry, realize the combined production of crushing and screening functions.
5. Generator Unit Insurance Function Device The design of the safety device can ensure normal operation without electricity and low voltage or power failure, and ensure production efficiency.
6.Technical Guarantee and Excellent Quality The material quality is good, the design structure is reasonable, and the technology is guaranteed. For each machine, multi-level checks are adopted to ensure the quality of each machine is good.





Working principle:

Large stone materials from the hopper are evenly and continuously fed into jaw crusher through vibrating feeder for primary crushing.
The crushed materials are transported to cone crusher or impact crusher for fine crushing through belt conveyor.
Then the materials are transported to vibrating screen to be separated into different sizes.
The end products with desired sizes will be transported to the final product pile and those with big particles will return to the cone crusher or impact crusher for re-crushing.
This forms the closed and continuously automatic cycles. The plant can be equipped with dust removing facilities to protect environment according to customers' requests.

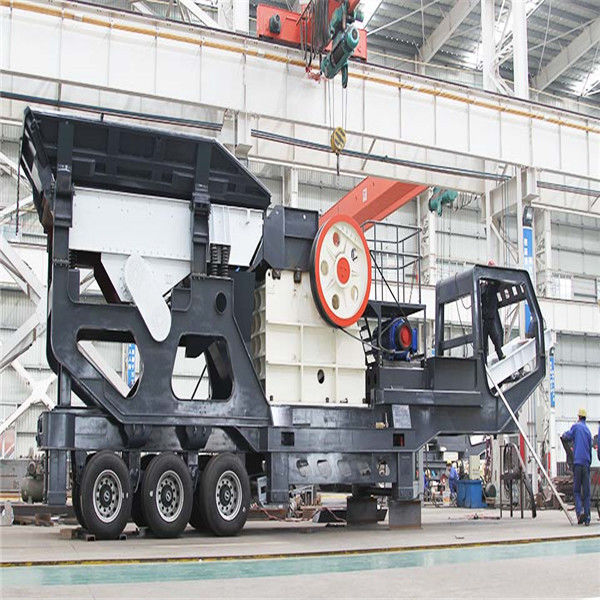

Mobile 54t 250t/H 350mm Feed Stone Crusher Machine 0

Techncal parameters:

Model MG938F1010 MG938F1210 MG1142F1214 MG1142F1315
Transport length(mm) 10800 11900 13100 13100
Transport width(mm) 2480 2550 2800 2900
Transport Height(mm) 3900 3900 4450 4450
Max.Length(mm) 11200 12100 13300 13300
Max.Width(mm) 2900 2900 2950 2950
Max.Height(mm) 4100 4100 5200 5200
Weight(t) 28 39 44 54
Crusher Type PF-1010 PF-1210 PF-1214 PF-1315
Max.Feed(mm) 300 300 300 350
Processing(t/h) 70-130t/h 70-130t/h 90-180t/h 120-250t/h
Feed Type GZD-850x3000 GZD-960x3800 GZD-1100x4200 GZD-1100x4200
Main Beit Type B800x8M B800x8.5M B1000x9M B1000x9M

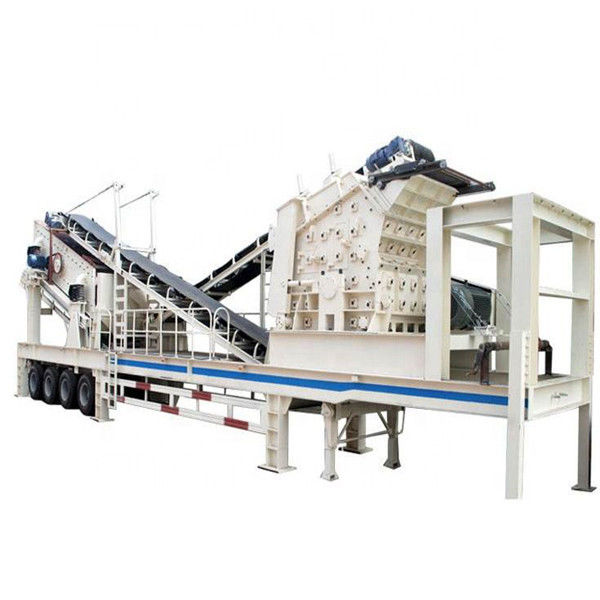

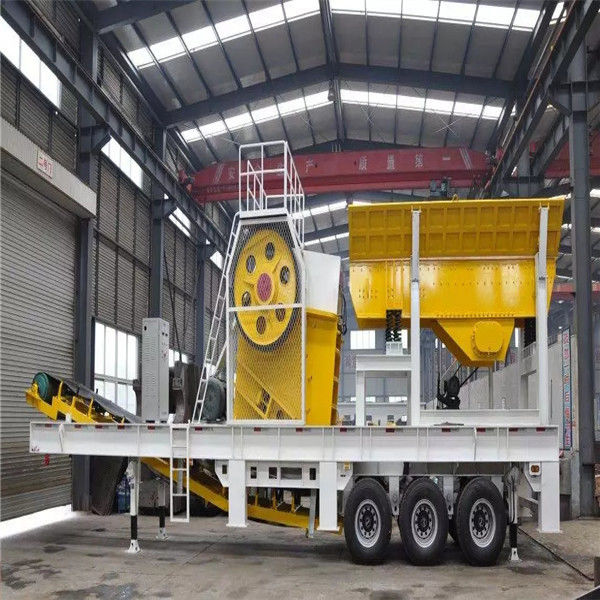

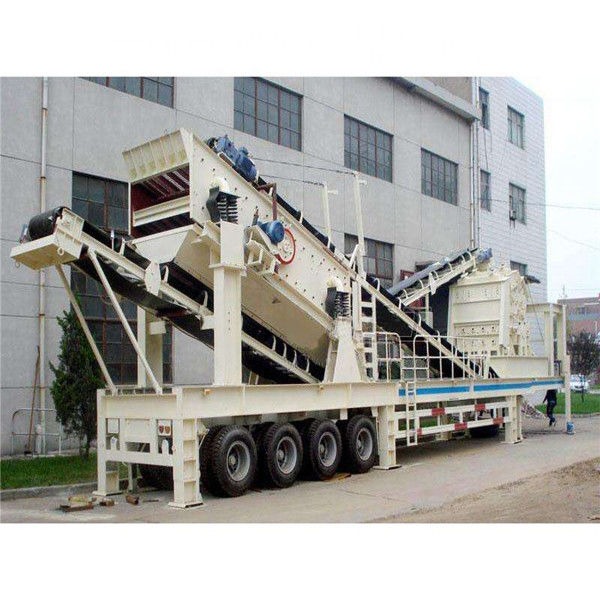

Mobile 54t 250t/H 350mm Feed Stone Crusher Machine 1Mobile 54t 250t/H 350mm Feed Stone Crusher Machine 2Mobile 54t 250t/H 350mm Feed Stone Crusher Machine 3
