3000kg 0.5mm 3800rpm 1500kg/H Wood Shaving Machine

3000kg 0.5mm 3800rpm 1500kg/H Wood Shaving Machine

  • High Light

    0.5mm wood milling machine

    ,

    3800rpm wood milling machine

    ,

    0.5mm wood saw machine

  • Name
    Wood Shaving Machine
  • Condition
    New
  • Application
    Making Wood Shavings
  • Voltage
    380v
  • Total Power
    25kw
  • Number Of Blades
    7*4=28
  • Cutter Head Speed
    3800rpm
  • Weight
    3000kg
  • Warranty
    12 Months
  • Machine Dimensions
    380*155*135mm
  • Place of Origin
    China
  • Certification
    CE
  • Model Number
    1460-4
  • Minimum Order Quantity
    1 SET
  • Price
    $18,000.00 - $20,000.00 / Set
  • Packaging Details
    Packaging Details: plastic film for wood shaving making machine
  • Delivery Time
    7-30day
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    60 Set/Sets per Month

3000kg 0.5mm 3800rpm 1500kg/H Wood Shaving Machine

Wood Shaving Machine Make Wood Shavings Horse Farm, Chicken Farm, Mouse Bedding And Pet Bedding

Introduction of Wood Shaving Machine

Wood Shavings Machine process scrap existing welding technology using the old embedded technology is the equipment for more fine, firm, durable and high quality parts and components equipped, cutting tools imported from Germany, durable transmission mode using hydraulic transmission, stable performance, low noise.Using full automation, easy to operate, safe and reliable is an essential mechanical equipment for particleboard pet bedding.It is a large, medium and small horse farm, chicken farm, pet mice, flower breeding and other applicable equipment and advanced technology is the advantage of shader thickness uniformity can be arbitrarily adjusted without dust pollution.



Wood Shaving Machine is on the basis of the original design of the new wood shavings, equipment technology advanced workmanship, fine to all sorts of fruit tree log hard miscellaneous wood branches including the mop pole plate edge, small wood shavings is recycling scrap value creation asian-american shaving machine produced shavings form uniform thickness adjustable high yield no dust size specifications complete.



The wood shaving machine can be used for paper mill to do wood pulp pet pad material horse farm chicken farm flower breeding pet lab pad material dehumidification deodorization warm preservation breeding different animals with large and small thick and thin shavings logistics transportation fragile products as fillers to prevent damage in addition can also be used as bio-energy ignition material.



Technical Parameters of Wood Shaving Machine
Name Wood Shaving Machine
Model 1460-4
Cutter shaft(piece) 4
Length of blade 60cm
Number of blades 7*4=28
Power supply 380v-50hz-3p
Total power 25kw
Cutter head speed 3800rpm
Cutter head diameter 158 mm
Shaving depth 0.5-2mm
Max. Log input length 140cm
Max.log input width 60cm
Working distance 1700mm
Capacity 1200-1500kg/h
Machine dimensions 380*155*135cm
Weight 3000kg

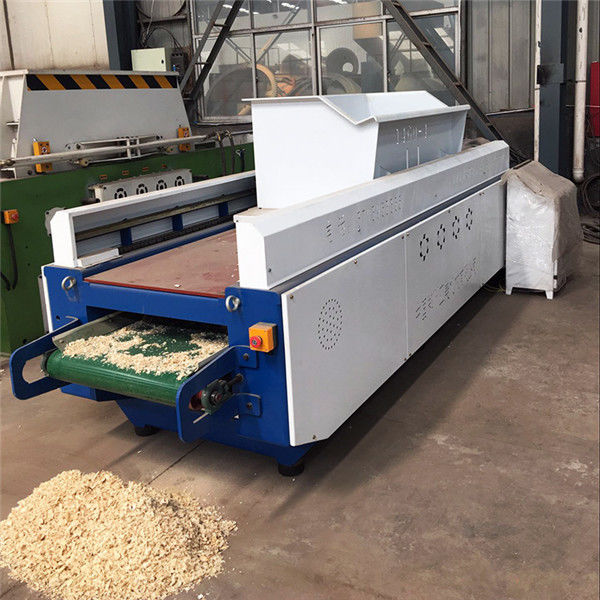

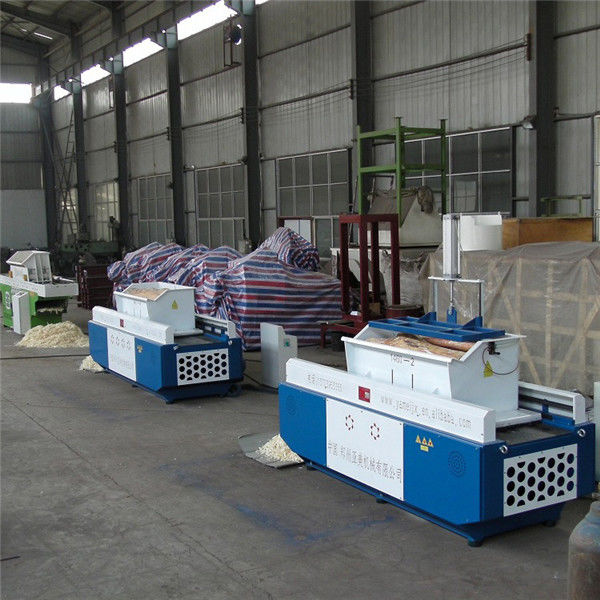

Picture of Wood Shaving Machine
3000kg 0.5mm 3800rpm 1500kg/H Wood Shaving Machine 0
3000kg 0.5mm 3800rpm 1500kg/H Wood Shaving Machine 1

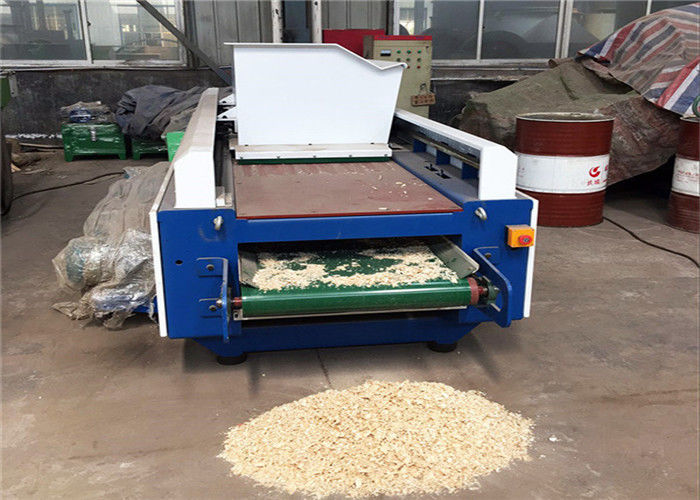

Final Product Display

3000kg 0.5mm 3800rpm 1500kg/H Wood Shaving Machine 2

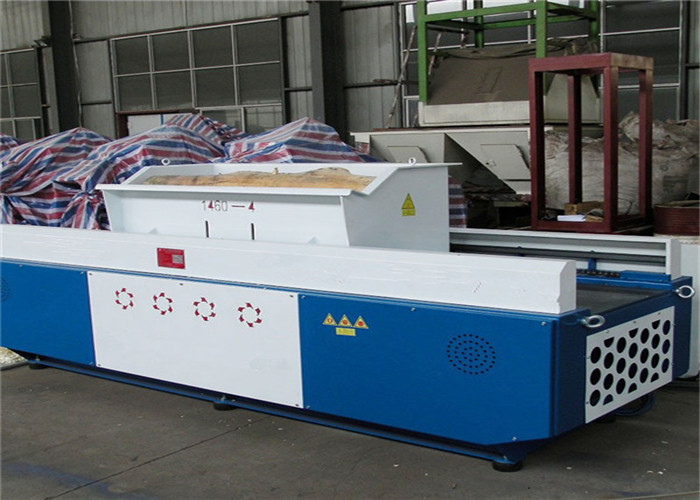

Wood Shavings Application

3000kg 0.5mm 3800rpm 1500kg/H Wood Shaving Machine 3



Advantages of Wood Shaving Machine

1. Introduce Turkish technology.


2. No installation is required (the product can be produced after the customer wiring is completed before the factory installation and debugging).


3. There is no need for Civil Engineering (it can be produced on the flat ground without civil engineering to reduce the cost).



4. Schneider original packaging is used for electrical control.


5. 4-axis planing and 2-axis planing (increase the output of wood shavings to meet the needs of customers).


6. The thickness of shavings can be adjusted at will (to meet different market demands).


7. Compression box, which can be compressed for many times and formed at one time.


8. Adjust the times of compression according to the quantity of materials to achieve energy saving and emission reduction.


9. There are no vulnerable parts except for cutting tools (supporting grinder equipment and cutting tools can be used for many times).



10. Mechanical rotation (greatly reduce equipment maintenance rate, adapt to any area with large temperature difference).


11. The overall structure is made by laser cutting and numerical control processing (to ensure the interchangeability of machine parts).


12. High degree of automation, equipped with automatic feeding system, realize continuous feeding and greatly reduce labor cost.



Packing & Delivery

3000kg 0.5mm 3800rpm 1500kg/H Wood Shaving Machine 4





After Sales Service

1. One year for machinery warranty.



2. We have the cheap spare parts supply.



3. We can sent engineer to install and maintain on site.



FAQ

1)Are you a factory or trade company?

We have our own factory as an international supplier, a professional manufacturer and a general international trader.



2) How can I trust your company?

1.Henan Wheat Import And Export Company Limited, established in 2005, located in Zhengzhou City--Capital of Henan Province, the center of China mainland.


2.We have special QC department, testing every single equipment, from voltage to appearance, our workers will inspect strictly in order to supply the best and most stable machine for our customers.


3.Our equipment are strictly designed and produced according to CE standard, we care for every details and the quality.



3) How long is your delivery time?

Generally it is 30 days after received your deposit.



4) Is your price competitive?

We can provide the highest quality machines at the best price.
