Introduction of mobile batch grain dryer:
Mobile batch grain dryer using cyclotron heating device, can produce a lot of hot air in a short time, it can kill insect eggs through high temperature treatment, completely solve the phenomenon of discoloration in the drying process, drying box body using metal aluminum inner wall plate, silicone cotton insulation, corrugated color steel plate or aluminum alloy outer wall plate.Digital control and detection are adopted in the box body, so that air circulation, humidification and heating can be effectively controlled.
The outfit appropriate of dryer is big unfavorable small, because most circumstance meets rainy season in harvest season below, just need to develop the action of dryer, dry quantity is big, productivity is small cannot solve a problem.National and local reserves, grain production areas should be built large, medium - sized dryer.Fixed dryer service radius should be small but not large, to reduce the transportation distance, reduce costs, improve efficiency.
Technical parameters of mobile batch grain dryer
| Model | 75 | 120 | 200 |
| Silo capacity(m3) | 10 | 15 | 25 |
| PTO absorbed power(HP) | 30 | 60 | 80 |
| Install electrical power(KW) | 15.4 | 22 | 37 |
| Fan air flow(m3/H) | 11000 | 28000 | 40000 |
| Maximum thermal power(Kcal/H) | 330000 | 600000 | 900000 |
| Holes in the silo wall(MM) | 1.5-2.5 | 1.5-2.5 | 1.5-2.5 |
| Weight(KG) | 2150 | 3680 | 4600 |
| Weight with exchanger(KG) | 2480 | 4100 | 5200 |
| Fuel tank capacity(L) | 250 | 380 | 580 |
| Transport overall sizes(CM) | 455*226*246 | 510*248*258 | 630*248*260 |

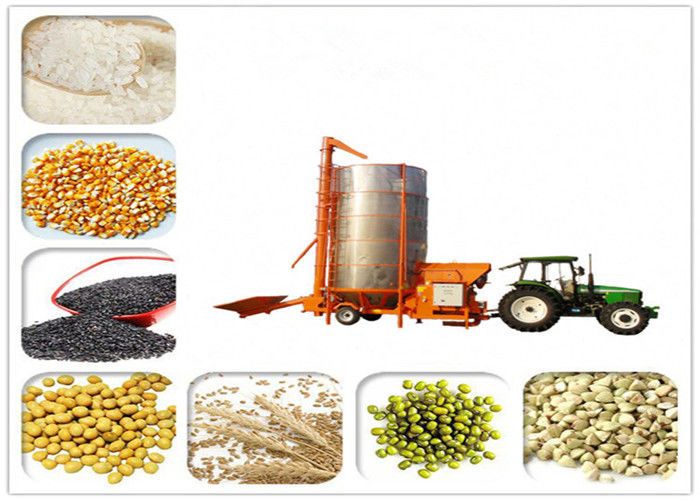

Pictures of mobile batch grain dryer
Advantages of mobile batch grain dryer:
1. Controlled emission: combustion fumes do not contaminate the grain.
2. All the mechanical and electronic safety devices comply with European and USA regulations.
3. The structure as well as all the mechanical components are designed using high-quality materials.
4. Simple and minimum regular maintenance.
5. Easy to transport on articulated lorries and containers.
Photos From Workshop
Method of use
1. Start the machine, start the loading screw to lift, and the grain is added into the vertical well container through the spiral lifting feeder. After the container is filled, the drying stage begins.
2. Gradually open the recovery shutter, start the burner, start the drying stage, continue to sample, test the grain humidity.After the automatic completion, cool down and unload the grain.
3. After completion, shut down the main motor and disconnect the power supply of the switchboard.The whole process is automatic and orderly, and the operation is simple.
Packing & Delivery
The performance characteristics of mobile batch grain dryer:
1, food dryer investment is small, low cost, can automatically control the working process, automatic stop, simple operation and labor saving, meet the needs of small and medium-sized farms and farmers.
2. The grain dryer is equipped with automatic on-line temperature measurement and humidity measurement device, which greatly improves the degree of automation and improves the drying uniformity.
3. The grain dryer is convenient for cleaning, thorough, and will not mix seeds, especially suitable for drying grain seeds.
After Sales Service
1. One year for machinery warranty.
2. We have the cheap spare parts supply.
3. We can sent engineer to install and maintain on site.
