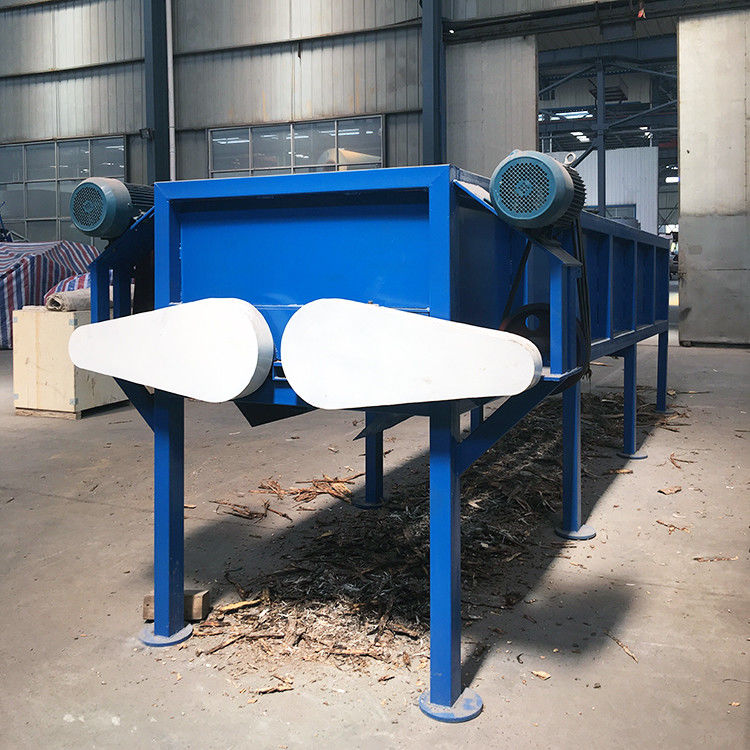

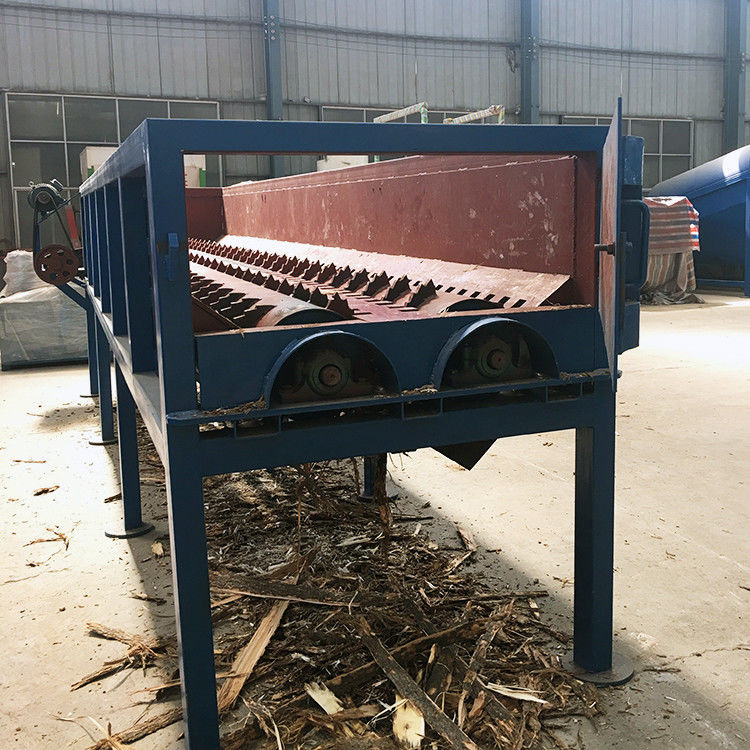

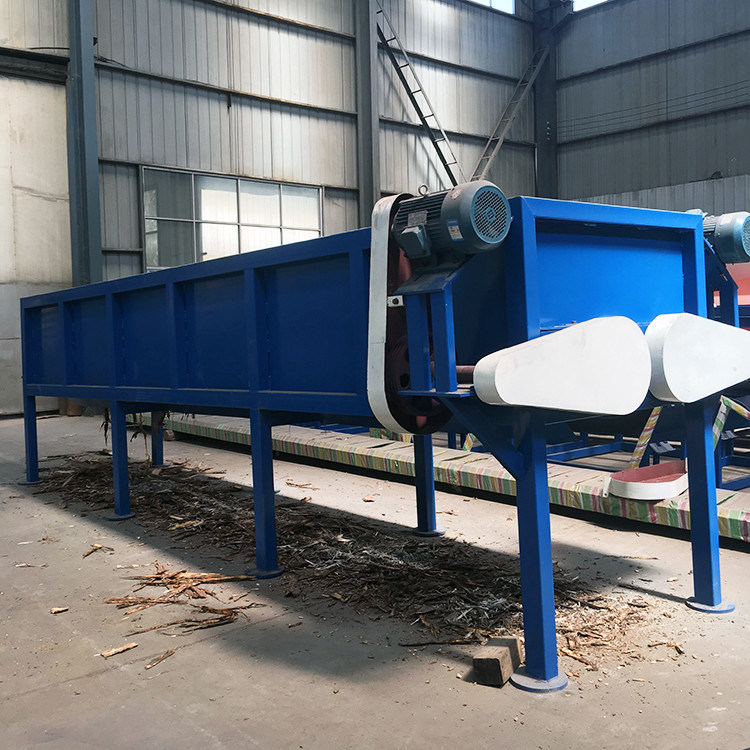

Groove Type Two-Roll Peeling Machine Safe And Reliable, Easy To Operate
Introduction:
1. Adopt the pipelined operation of open silo, which can feed from one end and discharge from the other end, overcome the shortcomings of the existing feeding, discharging and segmenting working mode of the drum skinner with power failure and high working efficiency.
2. Due to the impact of tooth on the wood segment, the wood segment not only circulates in the casing, but also turns around itself, so the peeling efficiency is high.To eucalyptus, poplar and other difficult to peel trees have a better peeling effect, the clarity of more than 95%.
3. Strong adaptability to wood, can be different tree species, diameter, length and shape of the wood segments for peeling, because the wood segments do rotary movement and irregular beating, bending of the concave segment can also be in good contact with the peeling teeth.Therefore, the stripping ratio of bending logs is much higher than that of other drum types.
4. As the huge shell is fixed, it consumes less energy, has lower failure rate and maintenance workload, and has much lower vibration and noise than the roller skidding machine. The machine can be produced on the ground without fixing and is convenient to use.
Features of peeling machine:
1, the use of four-edged knives, easy to use, small damage to wood, low cost.
2. The regulating pressure of cutter plate is controlled by hydraulic pressure, with advanced structure, reliable performance and high output.
3. The feeding adopts the continuously variable speed, which has a good peeling effect on the difficult tree species such as frozen wood, bending wood, eucalyptus, oak and elm.
4, high peeling net rate, high productivity, good quality, but also with feeding machine, cutting machine, grasp machine to improve efficiency.
Main application:
This series of wood stripping machine widely used in the fiber board factory in, paper mill, veneer rotary cutting factory, wood factory, paper, wood OARS factory storage plant, such as forest.Wide application on eucalyptus, poplar and popular .wood effect is really good, is applied to automatic production line operation, the equipment.
Technical data:
| Model NO. | Motor Power(kw) | Dimension(m) | Feeding Length(m) | Output(t/h) | Weight(kg) |
| BTJ-1 | 11 | 8m×1.4m×1.6m | ≤6 | 3-5 | 2300 |
| BPJ-2 | 15 | 7m×2.25m×1.6m | ≤6 | 3-5 | 3300 |
| Specification of peeling machine | 6m double-shaft | 9m double-shaft | 12m double-shaft |
| Production capacity (T/H) | 7-15T | 15-25T | 25-30T |
| Power(KW) | 7.5*2 | 7.5*2 | 7.5*2 |
| Long (mm) | 6300 | 9000 | 12600 |
| Width (mm) | 1310 | 1500 | 1550 |
| High (mm) | 1550 | 1700 | 1650 |
Main USES:
This series of peeling machines are widely used in medium fiber board factory, paper mill, veneer rotary cutting factory, wood chip factory, pulp mill, wood storage factory, forest farm, etc.Wide range of application, eucalyptus, poplar and other popular tree species effect is very good, is suitable for assembly line operations, automatic production of supporting equipment.Among them, the 13m groove peeling machine is a new type of high efficiency, high yield and high quality wood peeling equipment independently developed by our company according to the demand of market development. It is an essential tool for automatic production line production!
Our products are sold all over the world, you can rest assured.
