Horse Bedding 45cm 600kg/H Wood Shaving Machine

Horse Bedding 45cm 600kg/H Wood Shaving Machine

  • High Light

    45cm Wood Shaving Machine


    600kg/h Wood Shaving Machine


    600kg/h timber cutting machine

  • Name
    Hydraulic Wood Shaving Machine
  • Color
  • Power
  • Yield
  • Weight
  • Dimension(L*W*H)
    Dimension(L*W*H): 515*115*180m
  • Place of Origin
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 SET
  • Price
    $28,000.00 / Set
  • Packaging Details
    plywood case in wood pallet
  • Delivery Time
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    60 Set/Sets per Month

Horse Bedding 45cm 600kg/H Wood Shaving Machine

Hydraulic Wood Shaving Machine Production Shavings for Chicken Farm and Horse Farm Bedding

Introduction of Hydrauilc Wood Shaving Machine

This wood shaving machine is designed to produce wood shavings in desired and suitable size to be able to use them as bedding at chicken farming and horse breeding sectors. There are all adjustment possibilities to get wood shavings in desired size and high quality. Our machine designed to get good quality of wood shavings by shaving roundwood from 10 cm up to 45 cm diameter. Chicken farming and horse breeding companies would also get a chance to produce their own wood shavings needs in desired quality, size, and amount with our shaving machine.


Technical Parameters of Hydrauilc Wood Shaving Machine

Name Wood Shaving Machine
Model 145
Hopper length(cm) 140
Hopper width(cm) 50
Cutter shaft(piece) 4
Blade(set) 6*4=24
RPM(r/min) 4500
Input material length (cm) 142
Power(kw) 18.5+18.5+0.37+5.5=42.87KW
Shaving depth(mm) 1-5
Hopper route(mm) 2200
Feeding speed (hydraulic) 6-15(m/min)
Dimensions(L*W*H)(cm) 515*115*180
Weight(kg) 2850

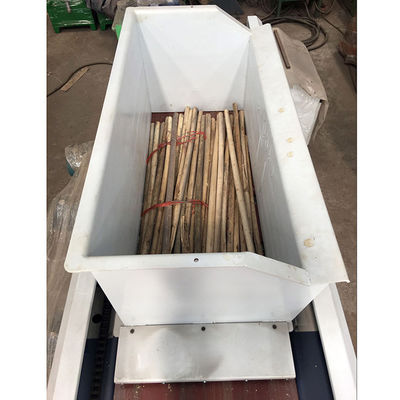

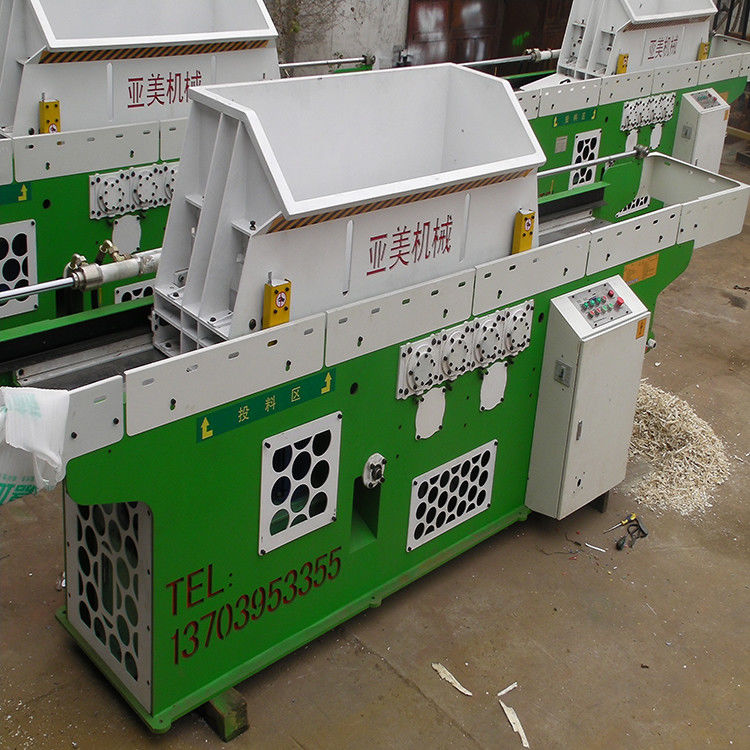

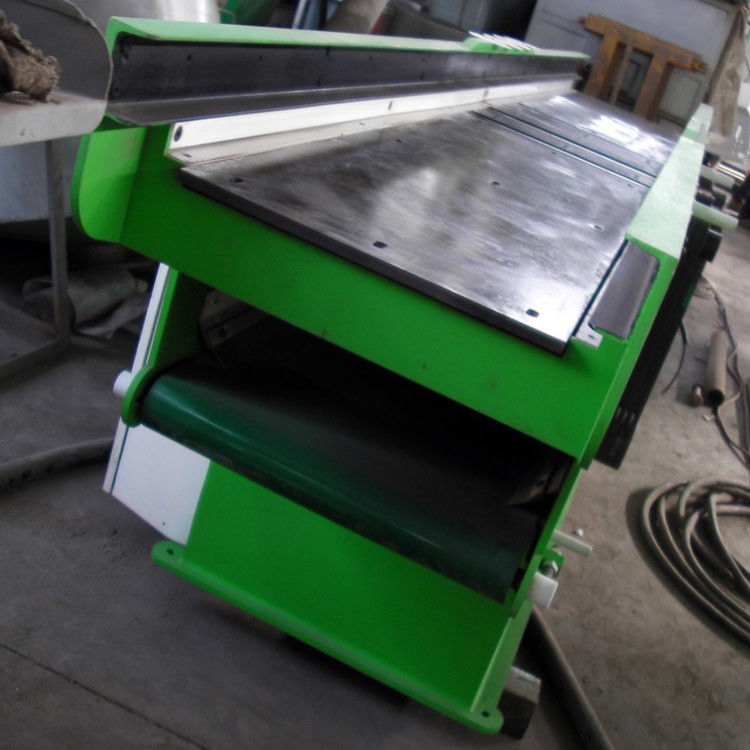

Picture of Wood Shaving Machine

Horse Bedding 45cm 600kg/H Wood Shaving Machine 0Horse Bedding 45cm 600kg/H Wood Shaving Machine 1


Advantages of Hydrauilc Wood Shaving Machine
1. Automatic running from start to ending, continuo running, preventive system for wood jamming.


2. There is no need for Civil Engineering (it can be produced on the flat ground without civil engineering to reduce the cost).


3. Schneider original packaging is used for electrical control.

4. The thickness of particleboard can be adjusted at will (to meet different market demands).

5. There are no vulnerable parts except for cutting tools (supporting grinder equipment and cutting tools can be used for many times).


6. The overall structure is made by laser cutting and numerical control processing (to ensure the interchangeability of machine parts).

7. High degree of automation, equipped with automatic feeding system, realize continuous feeding and greatly reduce labor cost.


Final Product Display

Horse Bedding 45cm 600kg/H Wood Shaving Machine 2


Working Principle of Hydrauilc Wood Shaving Machine

1. log into the feed port. When starting the machine, turn back and forth, hydraulic pressure, down to the planer plane, after the blade is awesome, blow out the box under the air blow.

2. The wood shaving machine is mainly composed of shell, knife roller, motor, power distribution cabinet, hydraulic system, etc. Its frame is welded with high strength steel plate, which is the support foundation of the whole wood shaving machine.

3. The blade installed on the cutter roller is fixed on the knife roller by the blade bolt made by the professional manufacturer through the pressure block; it can be adjusted up and down within a certain range according to the thickness of the shaving.

4. Cutter roller of wood shaving machine: stop the machine, open the cover and replace the blade.

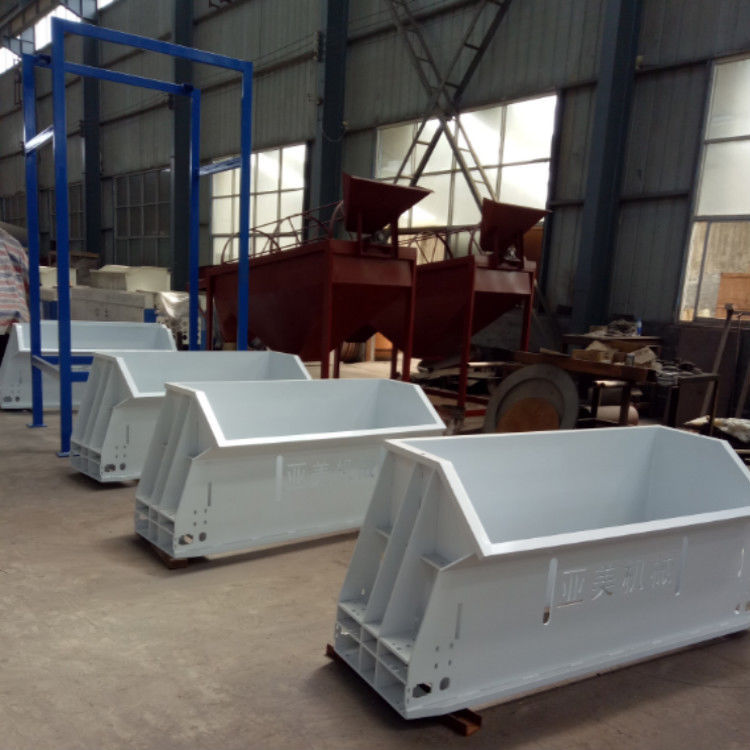

Photos From Workshop

Horse Bedding 45cm 600kg/H Wood Shaving Machine 3

Horse Bedding 45cm 600kg/H Wood Shaving Machine 4


Packing & Delivery

Horse Bedding 45cm 600kg/H Wood Shaving Machine 5



After Sales Service

1. One year for machinery warranty.


2. We have the cheap spare parts supply.


3. We can sent engineer to install and maintain on site.



1)Are you a factory or trade company?

We have our own factory as an international supplier, a professional manufacturer and a general international trader.


2) How can I trust your company?

1.Henan Wheat Import And Export Company Limited, established in 2005, located in Zhengzhou City--Capital of Henan Province, the center of China mainland.

2.We have special QC department, testing every single equipment, from voltage to appearance, our workers will inspect strictly in order to supply the best and most stable machine for our customers.

3.Our equipment are strictly designed and produced according to CE standard, we care for every details and the quality.


3) How long is your delivery time?

Generally it is 30 days after received your deposit.


4) Is your price competitive?

We can provide the highest quality machines at the best price.
