380*155*135mm 3800rpm 25kw Wood Cutting Machine

380*155*135mm 3800rpm 25kw Wood Cutting Machine

  • High Light

    3800rpm wood cutting machine


    25kw wood cutting machine


    3800rpm small shaving machine

  • Place Of Origin
    Henan, China
  • Brand Name
  • Voltage
  • Total Power
  • Number Of Blades
  • Cutter Head Speed
  • Machine Dimensions
  • Weight
  • Place of Origin
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 SET
  • Price
    $18,000.00 - $20,000.00 / Set
  • Packaging Details
    Packaging Details: plastic film for wood shaving making machine
  • Delivery Time
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    60 Set/Sets per Month

380*155*135mm 3800rpm 25kw Wood Cutting Machine

Reliable Electric Horizontal Type Wood Shaving Machine For Animal Bedding

Introduction of Wood Shaving Machine

This horizontal type wood shaving machine is designed to produce wood shavings in desired and suitable size applicable for to animal bedding for chicken farming and horse breeding sectors. Raw Materials can be logs, Tree Branches, Boards, and Old Pallet etc.


This horizontal type wood shavings machine process scrap existing welding technology using the old embedded technology is the equipment for more fine, firm, durable and high quality parts and components equipped, cutting tools imported from Germany, durable transmission mode using hydraulic transmission, stable performance, low noise.Using full automation, easy to operate, safe and reliable is an essential mechanical equipment for particleboard pet bedding.It is a large, medium and small horse farm, chicken farm, pet mice, flower breeding and other applicable equipment and advanced technology is the advantage of shader thickness uniformity can be arbitrarily adjusted without dust pollution.


Technical Parameters of Wood Shaving Machine

Model 1460-2
Number of cutter heads 2
Length of blade 60cm
Number of blades 7*2=14
Power supply 380v-50hz-3p
Total power 14kw
Cutter head speed 3800rpm
Cutter head diameter 158mm
Shaving depth 0.5-2mm
Max. Log input length 140cm
Max.log input width 60cm
Working distance 1400mm
Machine dimensions 330*155*135cm
Weight 2400kg
Capacity 600-800 kg/h


Picture of Wood Shaving Machine

380*155*135mm 3800rpm 25kw Wood Cutting Machine 0


Advantages of Wood Shaving Machine

1.Adjustable size of wood shavings as you required

2.Security settings of wood jamming

3.Convenient feeding and safety protection system

4.Reasonable price, simple operation

5.The power could be electric motor or diesel engine as you need

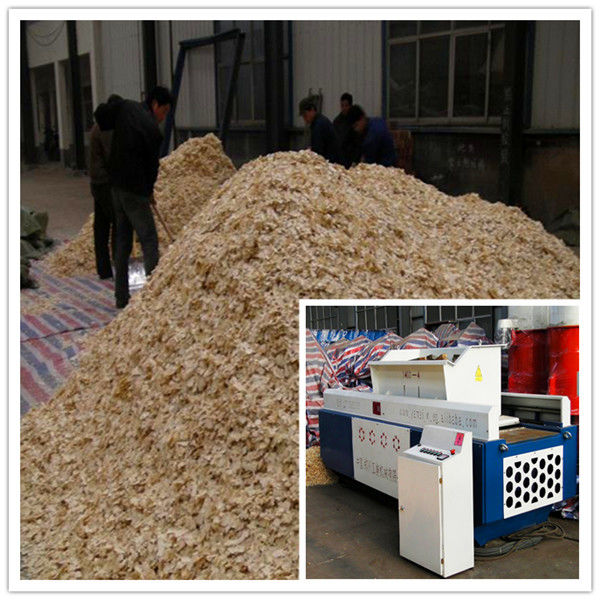

Wood Shavings Display

380*155*135mm 3800rpm 25kw Wood Cutting Machine 1


Working Principle of Wood Shaving Machine

1.log into the feed port. When starting the machine, turn back and forth, hydraulic pressure, down to the planer plane, after the blade is awesome, blow out the box under the air blow.
2.The wood shaving machine is mainly composed of shell, knife roller, motor, power distribution cabinet, hydraulic system, etc. Its frame is welded with high strength steel plate, which is the support foundation of the whole wood shaving machine.
3.The blade installed on the cutter roller is fixed on the cutter roller by the blade bolt made by the professional manufacturer through the pressure block, which can be adjusted up and down within a certain range according to the thickness of the shaving.
4.Cutter roller of wood shaving machine: stop the machine, open the cover and replace the blade.


Wood Shavings Application

380*155*135mm 3800rpm 25kw Wood Cutting Machine 2

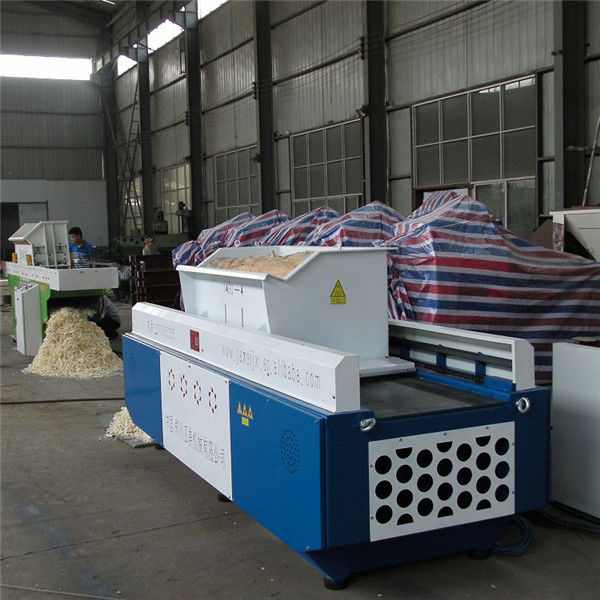

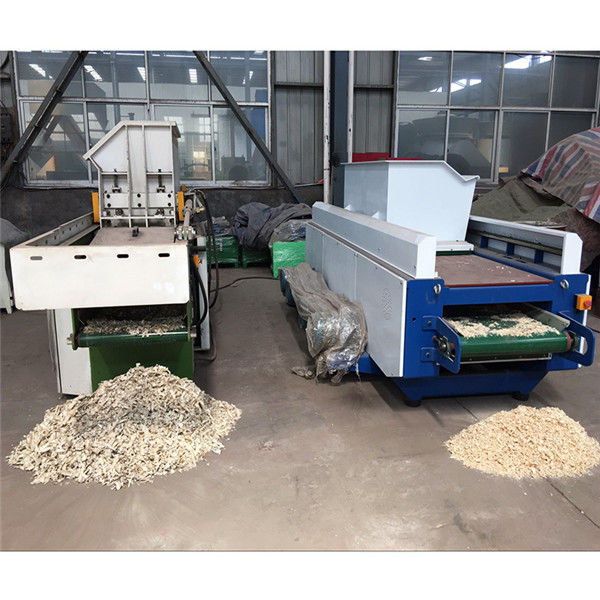

Photos From Workshop

380*155*135mm 3800rpm 25kw Wood Cutting Machine 3



380*155*135mm 3800rpm 25kw Wood Cutting Machine 4


Packing & Delivery

380*155*135mm 3800rpm 25kw Wood Cutting Machine 5380*155*135mm 3800rpm 25kw Wood Cutting Machine 6


After Sales Service

1. One year for machinery warranty.


2. We have the cheap spare parts supply.


3. We can sent engineer to install and maintain on site.



1)Are you a factory or trade company?

We have our own factory as an international supplier, a professional manufacturer and a general international trader.


2) How can I trust your company?

1.Henan Wheat Import And Export Company Limited, established in 2005, located in Zhengzhou City--Capital of Henan Province, the center of China mainland.

2.We have special QC department, testing every single equipment, from voltage to appearance, our workers will inspect strictly in order to supply the best and most stable machine for our customers.

3.Our equipment are strictly designed and produced according to CE standard, we care for every details and the quality.


3) How long is your delivery time?

Generally it is 30 days after received your deposit.


4) Is your price competitive?

We can provide the highest quality machines at the best price.
