Single Axis 2200mm 0.10m/S Timber Cutting Machine

Single Axis 2200mm 0.10m/S Timber Cutting Machine

  • High Light

    2200mm timber cutting machine


    0.10m/S timber cutting machine


    0.10m/S wood processing machinery

  • Name
    Wood Shaving Machine
  • Condition
  • Power
  • Production Capacity
  • Weight
  • Warranty
    1 Year
  • Application
    Making Wood Shavings
  • Dimension(L*W*H)
  • Place of Origin
    Henan, China
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 SET
  • Price
    $20,000.00 - $23,000.00 / Set
  • Delivery Time
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    60 Set/Sets per Month

Single Axis 2200mm 0.10m/S Timber Cutting Machine

Hydraulic Wood Shaving Machine To Production Shavings In Horse Factory

Introduction of Hydraulic Wood Shaving Machine

Hydraulic wood shaving machine, also known as shaving mill, wood shavings machine is a kind of automatic wood shaving machine, which is mainly used for mass production of thin flake shavings with uniform thickness.It consists of a frame, a platform placed on the frame, and a tool holder fixed on the platform. Wood enters the machine through the feeding port, and after cutting the blade inside the machine, wood shavings are made. The shavings that come out are uniform in size and thickness, no different from the shavings hand-made by the wood factory.


Fully automatic wood shaving machine greatly saves labor cost, the finished product quality is high, there are a variety of models to choose from.To meet the diverse needs of different customers, enrich your business space, expand your business market.


Technical Parameters of Hydraulic Wood Shaving Machine

Hopper length(cm) 145
Input material Dia.(cm) 50
Cutting head(set) 4
Blade(set) 6
RPM(r/min) 4500
Input material length (cm) 140
Power(kw) 18.5+18.5+0.37+5.5=42.87kw
Shaving depth(mm) 1-5
Hopper route(mm) 2200
Feeding speed (hydraulic)(m/min) 6-15
Dimensions(L*W*H)(cm) 515*115*180
weight(kg) 2850
145 DOC(depth of cut)
1mm 2mm 3mm 4mm 5mm



0.10 m/sec 427kg 654kg 880kg 1107kg 1334kg
0.15 m/sec 540kg 880kg 1221kg 1561kg 1901kg
0.20 m/sec 654kg 1107kg 1561kg 2014kg 2468kg
0.25 m/sec 767kg 1334kg 1901kg 2468kg 3035kg

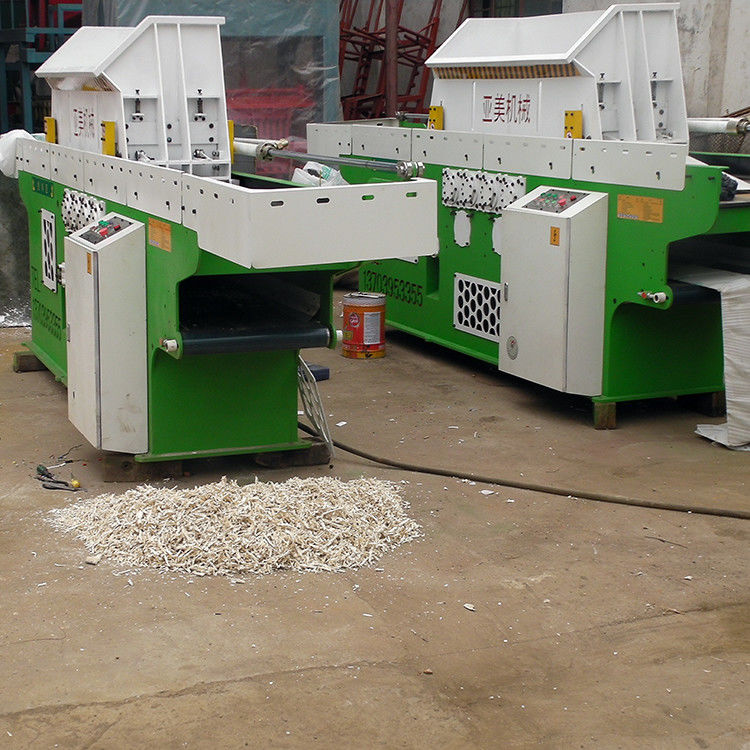

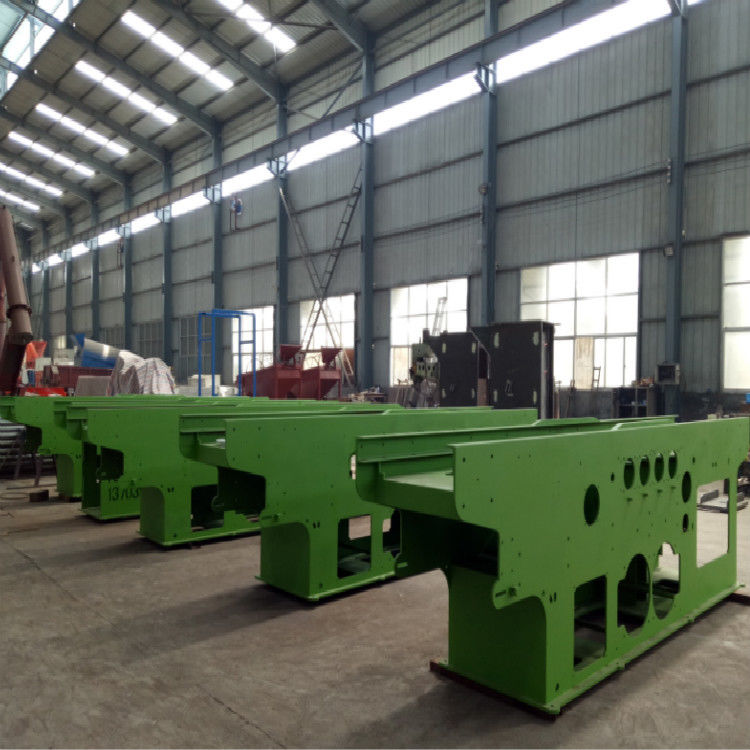

Pictures of Hydraulic Wood Shaving Machine

Single Axis 2200mm 0.10m/S Timber Cutting Machine 0


Single Axis 2200mm 0.10m/S Timber Cutting Machine 1


Features of Hydraulic Wood Shaving Machine

1. Advance technology, in steady of welding connection, we use accurate punching and embed method which avoid loosing with the machine when its running.


2. High quality spare part, for the blade, you have HSS and KS55 choice, for the bearing, it is FAG which can be use a long time and quite durable.


3. Hydraulic Transmission, stable performance and low noise.


4. Widely use, our machine can produce small volume and light wood shavings which can be used in paper mill, transportation filler and animal bedding etc.

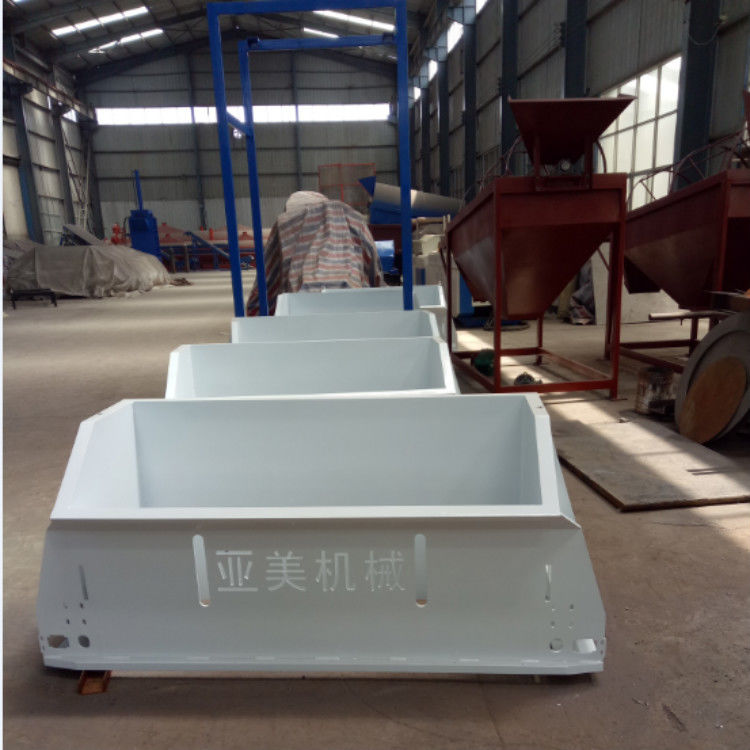

Final Product Display

Single Axis 2200mm 0.10m/S Timber Cutting Machine 2


Single Axis 2200mm 0.10m/S Timber Cutting Machine 3

Hydraulic wood shaving machine (wood shaving machine) can made wood, branch, crotch, leftover materials etc into shavings. As for the small size of the shavings, they are widely used in many fields. Shaving board in cabinet making factory, wood pulp in paper mill, protective filler for the fragile cargo in transportation, animal bedding in hennery, etc.


Packing & Delivery

Single Axis 2200mm 0.10m/S Timber Cutting Machine 4


After Sales Service

1. One year for machinery warranty.


2. We have the cheap spare parts supply.


3. We can sent engineer to install and maintain on site.



1)Are you a factory or trade company?

We have our own factory as an international supplier, a professional manufacturer and a general international trader.


2) How can I trust your company?

1.Henan Wheat Import And Export Company Limited, established in 2005, located in Zhengzhou City--Capital of Henan Province, the center of China mainland.


2.We have special QC department, testing every single equipment, from voltage to appearance, our workers will inspect strictly in order to supply the best and most stable machine for our customers.


3.Our equipment are strictly designed and produced according to CE standard, we care for every details and the quality.


3) How long is your delivery time?

Generally it is 30 days after received your deposit.


4) Is your price competitive?

We can provide the highest quality machines at the best price.
