Multilayered 37kw 60m3/H Stone Crusher Machine For Mining

Multilayered 37kw 60m3/H Stone Crusher Machine For Mining

  • High Light

    37kw Stone Crusher Machine

    ,

    60m3/H Stone Crusher Machine

    ,

    60m3/H circular vibrating screen

  • Name
    Circular Vibrating Screen
  • Condition
    New
  • Certification
    CE
  • Application
    Mining,Quarry,highway
  • Power
    5.5kw-37kw
  • Max Feeding Size
    400mm
  • Weight
    3500kg-17600kg
  • Warranty
    1 Year
  • Place of Origin
    CHINA
  • Brand Name
    ShuGuang
  • Certification
    CE
  • Model Number
    CIRCULAR VIBRATING SCREEN
  • Minimum Order Quantity
    1 Set
  • Price
    $2,699.00-$11,999.00/Set
  • Packaging Details
    Nuder package or as per ur specical package
  • Delivery Time
    7-30 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    80 sets per month

Multilayered 37kw 60m3/H Stone Crusher Machine For Mining

Circular Vibrating Screen Used In Mining,Building Materials,Transportation, Chemical

Introduction:

The circular vibrating screen is a circular motion and is a multilayered,new vibrating screen.The machine adopts simplified eccentric shaft vibration exciter and eccentric block to adjust the amplitude,material sieve line length.screening specifications,reliable structure,strong excitation force,high screening efficiency,low vibration noise,sturdy and durable,easy maintenance,use security and other features.Widely used in the classification of products in mining,building materials,transportation,energy,chemical and other industries.


Vibrating screen is a special material separation equipment used for deep processing of crushing equipment,YZS Vibrating Screen has long streamline and many specifications suitable for various screening application.The machine adopts the barrel type eccentric shaft vibration exciter and the eccentric block to adjust the amplitude, the excitation ability is strong.



Advantage:

1. The equipment maintenance is simple and convenient, and the operation efficiency of the whole machine is obviously improved.
2. Flexible connection such as cross shaft universal joint transmission shaft or rubber coupling is adopted to ensure stable operation.
3. The structure of screen machine tends to be simplified, which is conducive to improve the manufacturing technology level and assembly accuracy of the equipment.
4. The screen machine has higher screening efficiency, larger processing capacity and longer service life.
5. Block eccentricity is adopted in the exciter, which not only increases the single excitation force of the eccentric mass of the exciter, but also can be adjusted randomly, which is convenient for modular design and use.



Working principle:

It is mainly composed of screen box, vibration exciter, suspension (or support) device and motor. The motor drives the main shaft of the vibration exciter to rotate through the triangle belt. Due to the centrifugal inertia force of the unbalanced weight on the vibration exciter, the screen box is vibrated. Different amplitudes can be obtained by changing the eccentric weight of the exciter.



Techncal parameters:

Model Layers Max feeding size(mm) Capacity(m³/h) Frequency(r/min) Screen Hole Size(mm) Motor power(kw) Weight(kg) Screen Face.(mm)
2YK1225 2 400 8-60 800-970 4-50 5.5 3500 1200*2500
2YK1225 3 400 10-70 800-970 4-50 5.5 3850 1200*2500
2YK1230 2 400 12-78 800-970 4-50 7.5 4200 1200*3000
2YK1230 3 400 13-80 800-970 4-50 7.5 4600 1200*3000
2YK1237 2 400 15-86

800-970

4-50 7.5 4600 1200-3700
3YK1237 3 400 16-90 800-970 4-50 7.5 5200 1200*3700
2YK1535 2 400 20-125 800-970 5-50 11 5890 1500*3500
3YK1535 3 400 21-125 800-970 5-50 11 6700 1500*3500
2YK1545 2 400 22-150 800-970 5-50 15 6330 1500*4500
3YK1545 3 400 22-150 800-970 5-50 15 6800 1500*4500
2YK1548 2 400 22.5-162 800-970 5-50 15 6980 1500*4800
3YK1548 3 400 22.5-162 800-970 5-50 15 7600 1500*4800
2YK1848 2 400 25-206 750 5-80 15 9080 1800*4800
3YK1848 3 400 32-276 800-970 5-80 18.5 9600 1800*4800
2YK1854 2 400 32-312 800-970 5-80 18.5 10150 1800*5400
3YK1854 3 400 32-312 800-970 5-80 22 10840 1800*5400
2YK1860 2 400 65-586 870 3-100 22 10900 1800*6000
3YK1860 3 400 65-586 870 3-100 22 11500 1800*6000
2YK2160 2 400 50-475 970 5-100 30 11780 2100*6000
3YK2160 3 400 50-475 970 5-100 30 12800 2100*6000
2YK2460 2 400 65-550 970 5-100 37 15600 2400*6000
3YK2460 3 400 70-620 970 5-100 37 17600 2400*6000

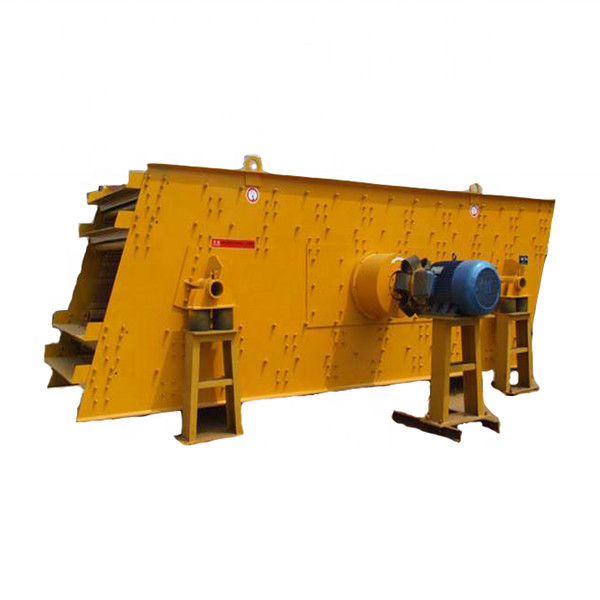

Multilayered 37kw 60m3/H Stone Crusher Machine For Mining 0Multilayered 37kw 60m3/H Stone Crusher Machine For Mining 1Multilayered 37kw 60m3/H Stone Crusher Machine For Mining 2
