Introduce of Wood Shaving Machine
Wood sawdust machine, also known as sawdust crusher, sawdust grinder, sawdust machine, is a new type of ideal mechanical equipment for the production of wood sawdust, can cutting log and branches and stems with diameter of 1-20 cm into sawdust of 1-5mm. It is widely used in paper-making, edible fungi, machine-made charcoal, particleboard, sawdust board, high-density board, medium-sized fiberboard and other industrial production sections and single wood sawdust production base. The cutting raw materials are mainly logs and branches.
Wood sawdust machine can process wood, fork and other raw materials into sawdust at one time. It has the advantages of low investment, low energy consumption, high productivity, good economic benefits, convenient use and maintenance.
The machine to crush wood into sawdust is the specially designed and highly efficient wood processing equipment
1. It can process logs, wood sticks, tree branches and waste wood material into sawdust one time.
2. The size of sawdust can be adjusted in range 1-5mm.
3. The machine to crush wood into sawdust is the necessary wood processing equipment for small and medium-sized enterprises and individual household.
Technical Parameters of Wood Sawdust Machine
| Model | 210 |
| Total power(KW) | 55+4.5 |
| Knife Qty(pieces) | 168 |
| Capacity(m³/h) | 10m³/h |
| Feeding inlet size(mm) | 210x210 |
| Voltage | 380v/50HZ |
| Dimension (mm) | 7000*1200*1800 |
| Weight(kg) | 3500 |

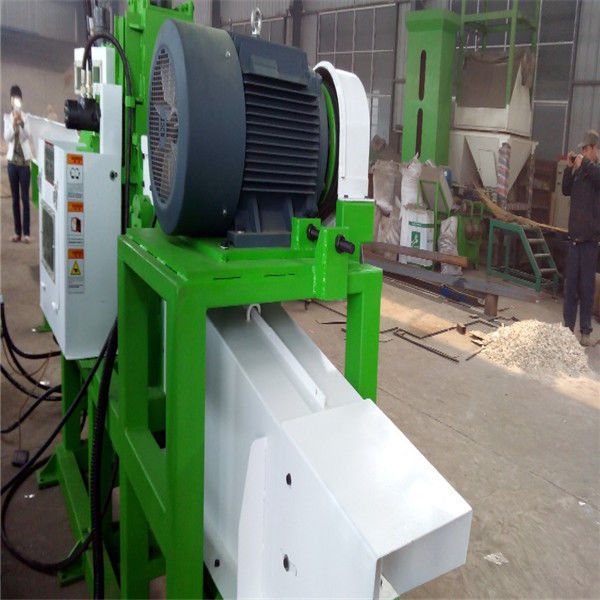

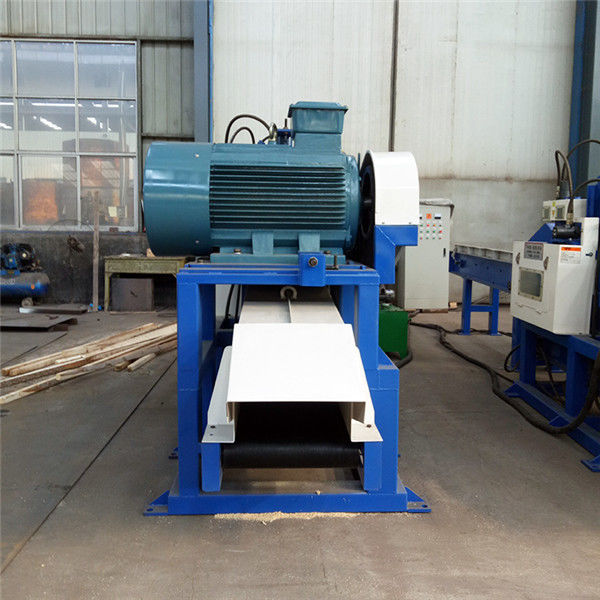

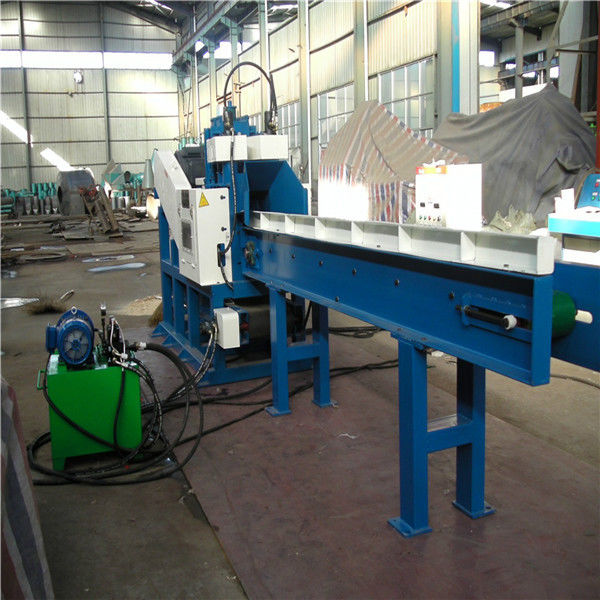

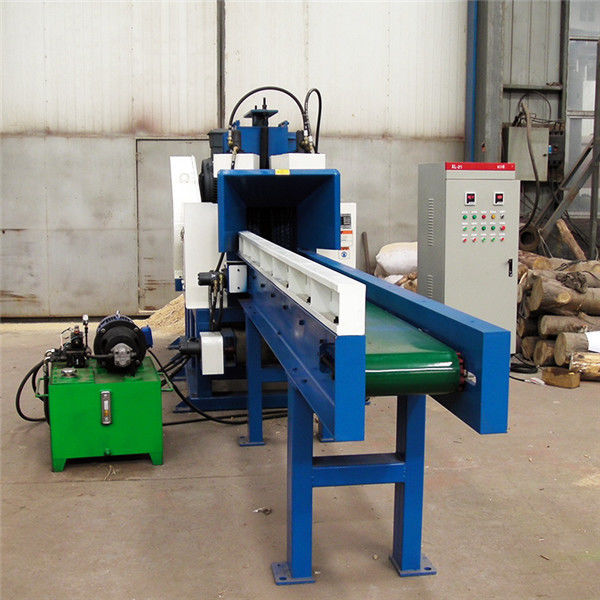

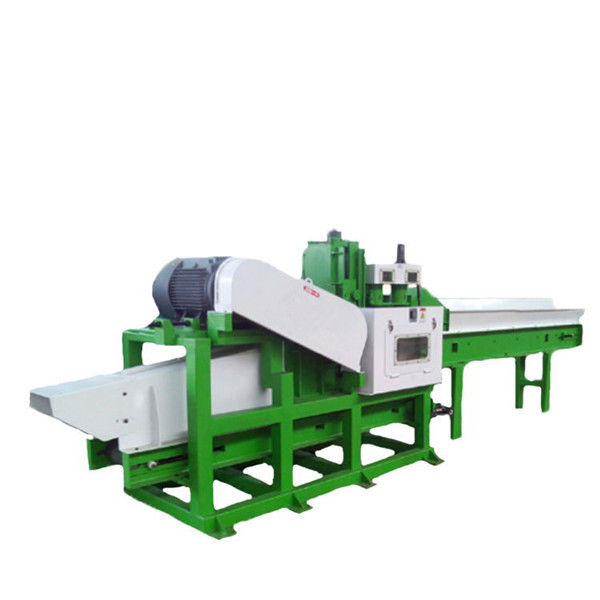

Picture of Wood Sawust Machine
Advantages of Wood Sawdust Machine
1. Low energy consumption, high output, equipped with brand electrical appliances to ensure the production of equipment without worry.
2. The technology is mature, which solves the problem that large logs cannot be crushed.
3. There are four types of wood crushers: 210, 2150, 350, 3550 and 450.
4. Stable performance, output of 3-10 tons of sawdust; (different models, different yields)
5. The whole equipment is easy to maintain and operate without wearing parts!
6. Before the machine leaves the factory, the installation and debugging are completed, and the customer can be electrified to produce and use it at ease.
Final Product Display
Photos From Workshop
Installation Commissioning
1. The equipment shall be installed on a horizontal concrete foundation and fixed with anchor bolts.
2. Pay attention to the vertical of main body and horizontal during installation.
3. After installation, check whether the bolts in each part are loose and whether the main engine barn door is fastened. If so, please do so.
4. Configure the power cord and control switch according to the power of the equipment.
5. After the inspection, empty load test will be carried out, and production can be carried out after normal test.
Packing & Delivery
After Sales Service
1. One year for machinery warranty.
2. We have the cheap spare parts supply.
3. We can sent engineer to install and maintain on site.
