Wrapping 12m 17.2kw Automatic Packaging Machine

Wrapping 12m 17.2kw Automatic Packaging Machine

  • High Light

    12m automatic packaging machine


    17.2kw automatic packaging machine


    17.2kw pouch packing machine

  • Name
    Sawdust Wrapping Machine
  • Place Of Origin
    Henan, China
  • Driven Type
  • Application
    Wood And Paper Material
  • Power
  • Voltage
  • Weight Of Bale
  • Capacity
    60-80 Bale/h
  • Certification
  • Dimension(L*W*H)
  • Auto-feeder
  • Packaging Details
    Wood Case For Machine
  • Place of Origin
    Henan, China
  • Brand Name
  • Certification
  • Model Number
    Sawdust Wrapping Machine
  • Minimum Order Quantity
    1 SET
  • Price
    $18,500.00 - $19,000.00 / Set
  • Packaging Details
    wood case for machine
  • Delivery Time
  • Payment Terms
    L/C, D/P, D/A, T/T, Western Union, MoneyGram
  • Supply Ability
    60 Set/Sets per Month

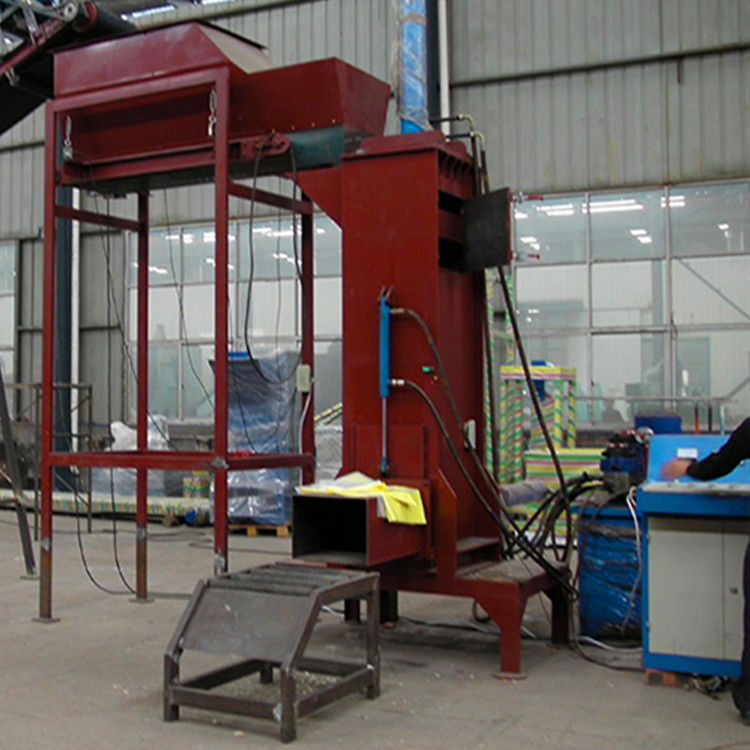

Wrapping 12m 17.2kw Automatic Packaging Machine

Sawdust Packing Machine It can make the shavings complete and easy to store



Shaving packing machine is also known as vertical packing machine,sawdust shaving packing machine,which adopt many patent technology,compared with other similar products,it has a reasonable design structure,high efficientcy can be get more than 50 bags per hour.It is also the fastest and highest autimation equipment in our domestic.

It adopts Hydraulic transmission control system,high automatic,stable speed,high yield,easy operation,widely used in sawdust, shaving,cottonseed hull, peanut shell, corn cob press and packing, one-time compressed into a bag,convenient storage,which can greatly reduce the trandportation cost,what is more,it will be loose easily after also can be used in Green building material, agricultural fertilizer etc.




1. High auto-control system ,workfore saving

2. High yield,stable speed

3. Auto-weighting,can be adjusted according to your requirement

4. Auto-feeder,easy operation


Company designs and manufactures various types of hydraulic baling press products, general-purpose hydraulic baling press for peanut shells, corn cobs, wood shavings, wood chip, gingko leaf, leaf tobacco, rice husk, straw, grass, paper, cotton, garment, plastics, wool, recyclable waste, waste bin, paper board, yarn, tobacco leaf, plastic, cloth, woven bags, knitted velvet, waste plastic bags all light bulbs, loose soft materials such as compression packaging materials, and greatly reduce the volume, increase the density, save up to 80% of the stack space, convenient transportation and storage.

Technical data

Model QZD-1200
Voltage 380v-50hz
Power 17.2kw
Outside size 3.5*3.3*3.55m
end product size 750*480*250mm
end product weight 15-25kg
shift capacity 1000-1500kg
weight 4500kg
Auto-feeder 4-6m


Wrapping 12m 17.2kw Automatic Packaging Machine 0


Matters needing attention

1. Please confirm the power used by the machine and do not plug in the wrong power.The machine adopts three - phase four wire system. The wire is earthed zero wire for leakage protection.

2. Do not touch the heating sheet directly with your hands.

3. Do not flush the machine with water. Operators should not work barefoot when the workplace is wet.

Remember to unplug the machine when not in use.

Don't change the parts of the machine at will.

6. Main parts should be lubricated with oil frequently.


Installation commissioning


1. Pay attention to the vertical of main body and horizontal during installation.

2. After installation, check whether the bolts in each part are loose and whether the main engine barn door is fastened. If so, please do so.

3. Configure the power cord and control switch according to the power of the equipment.


Wrapping 12m 17.2kw Automatic Packaging Machine 1


Matters needing attention


Correct use of machinery and equipment, careful implementation of the maintenance system and strict observance of safe operation rules are the necessary conditions to extend the service life of machines, improve production efficiency and ensure safe production.To this end, it is recommended that users establish maintenance and safe operation procedures, operators should be familiar with the machine structure and operation procedures, but also must pay attention to the following points:

(1) High quality anti-wear hydraulic oil shall be strictly used when adding hydraulic oil into the oil tank. It must be filtered strictly and always keep enough oil. In case of shortage, the oil shall be filled immediately.

(2) The oil tank should be cleaned and replaced with new oil every half a year, but the first cleaning and filtering oil should not exceed one month. The new oil used once is allowed to be used again after strict filtration.

(3) The lubrication points of the machine shall be filled with lubricating oil at least once per shift as required.

(4) The sundries in the material box should be cleaned in time.
