330*155*135cm 2400kg 800kg/H Wood Shaving Machine

330*155*135cm 2400kg 800kg/H Wood Shaving Machine

  • High Light

    2400kg Wood Crusher Machine


    800kg/H Wood Crusher Machine


    800kg/H wood crusher

  • Name
    Wood Shaving Machine
  • Certification
  • Condition
  • Color
    Blue And White
  • Power
  • Capacity
  • Weight
  • Warranty
    1 YEAR
  • Place of Origin
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 Set
  • Price
    $5,000.00 - $10,000.00 / Set
  • Packaging Details
    standard container
  • Delivery Time
    7-30 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    60 Sets per Month

330*155*135cm 2400kg 800kg/H Wood Shaving Machine

Wood Shaving Machine Make Wood Shavings From Logs, Fruit Trees, Branches And Board Scraps

Introduction of Wood Shaving Machine

Shaving machine, also known as timber shaver, shaving machine, wood shaving mill, our company produces the wood shaving machine adopts Turkey processing technology, according to conditions need to be modified on the original machine of new type of mechanical shaving machine, can be widely used in all kinds of broken wood, small wood, waste wood under the Angle expected, the furniture factory leftover material shavings processed, produced shavings uniform shape, high output quality is good, no dust.


Wood shaving machine is on the basis of the original design of the new wood shavings, equipment technology advanced workmanship, fine to all sorts of fruit tree log hard miscellaneous wood branches including the mop pole plate edge, small wood shavings is recycling scrap value creation asian-american wood shaving machine produced shavings form uniform thickness adjustable high yield no dust size specifications complete.


The wood shaving machine can be used for paper mill to do wood pulp pet pad material horse farm chicken farm flower breeding pet lab pad material dehumidification deodorization warm preservation breeding different animals with large and small thick and thin shavings logistics transportation fragile products as fillers to prevent damage in addition can also be used as bio-energy ignition material.


Technical Parameters of Wood Shaving Machine

Name Wood Shaving Machine
Model 1460-2
Cutter shaft(piece) 2
Length of blade 60cm
Number of blades 7*2=14
Power supply 380v-50hz-3p
Total power 14kw
Cutter head speed 3800rpm
Cutter head diameter 158mm
Shaving depth 0.5-2mm
Max. Log input length 140cm
Max.log input width 60cm
Working distance 1400mm
Capacity 600-800 kg/h
Machine dimensions 330*155*135cm
Weight 2400kg

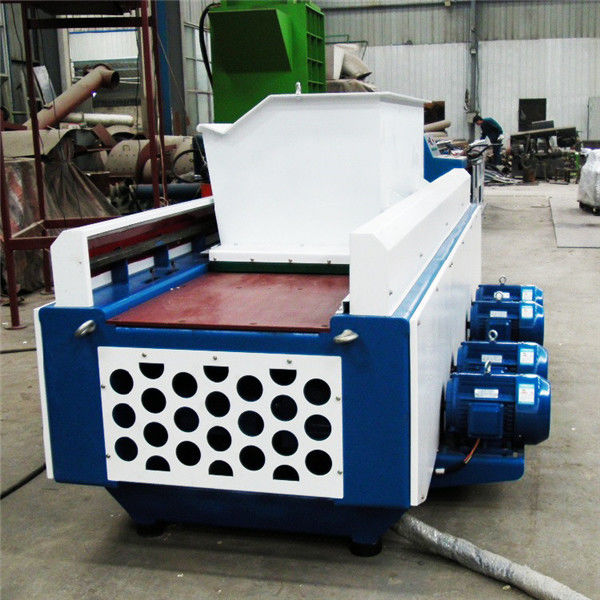

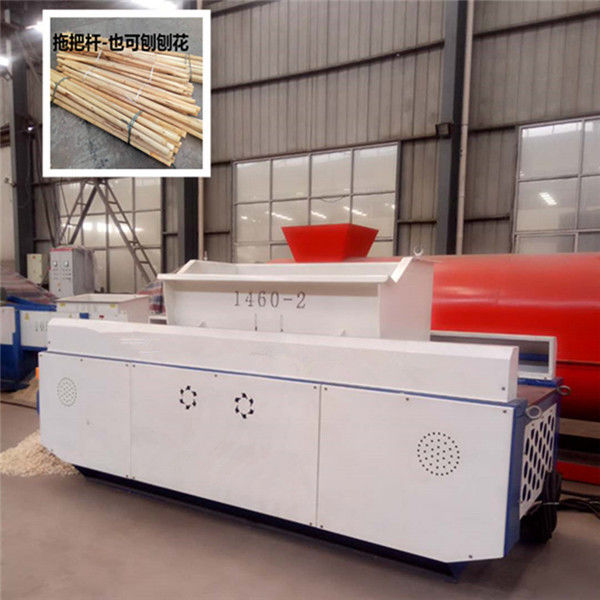

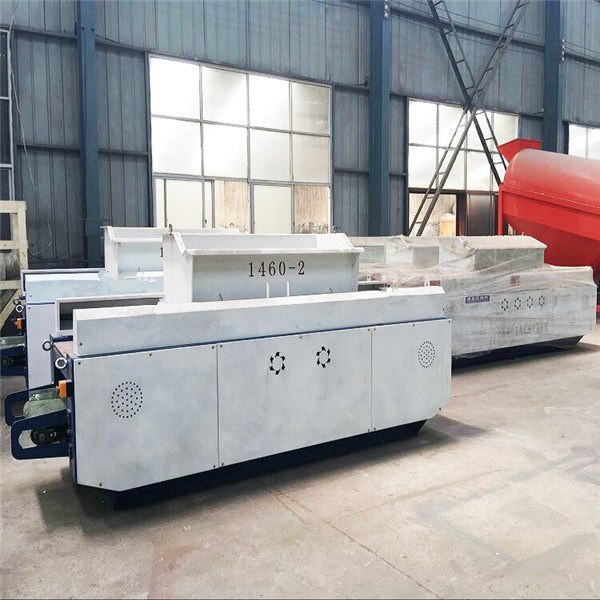

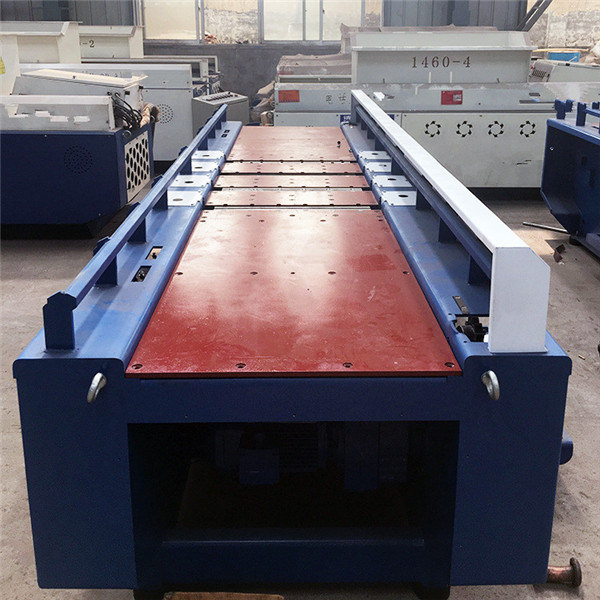

Pictures of Wood Shaving Machine

330*155*135cm 2400kg 800kg/H Wood Shaving Machine 0330*155*135cm 2400kg 800kg/H Wood Shaving Machine 1


Advantages of Wood Shaving Machine

1. Imported European technology, laser cutting of fuselage to ensure the accuracy of size.


2. There are two kinds of hydraulic transmission and mechanical transmission (hydraulic technology is adopted in the transmission part to ensure the stability of equipment operation).


3.Wood shaving machine planing existing four axis two axis one axis spot customization (six axis eight axis to improve the output of shavings).


4.The electric control USES schneider original motor and electrical equipment configuration to ensure the production without worry.


5. The whole structure is made by laser cutting and CNC machining center (to ensure the interchangeability of machine parts).


6.The size of shavings, thickness and thickness can be adjusted at will (adapt to different market demands).


7. The high degree of automation is equipped with automatic feeding system, which can greatly reduce the continuance of materials in large silos.


Display of Finished Shavings

330*155*135cm 2400kg 800kg/H Wood Shaving Machine 2

330*155*135cm 2400kg 800kg/H Wood Shaving Machine 3


Working Principle of Wood Shaving Machine

1. Advanced technology, based on the original ground, the combination of various parts of the fuselage has changed the traditional welding mode, and adopted the precise punching and embedded combination, which will not become loose due to the vibration of the machine for a long time.


2.High quality parts and fittings, cutting tools imported from Germany, durable.


3. Transmission mode adopts hydraulic transmission, stable performance, low noise and no dust.


4.Widely used, this machine produces shavings thickness adjustable, used for chipboard, papermaking wood pulp, poultry and livestock bedding, etc.


The main equipment components of wood shaving machine are: crushing chamber, knife roller group, Siemens motor and electrical system, reducer, rack, feed conveyor, discharge conveyor, etc. Blades are imported from German Demas enterprises, and electrical system is imported from Schneider of France. Therefore, the quality is strictly guaranteed in technology and technology.


1.log into the feed port. When starting the machine, turn back and forth, hydraulic pressure, down to the planer plane, after the blade is awesome, blow out the box under the air blow.

2.The wood shaving machine is mainly composed of shell, knife roller, motor, power distribution cabinet, hydraulic system, etc. Its frame is welded with high strength steel plate, which is the support foundation of the whole wood shaving machine.

3.The blade installed on the cutter roller is fixed on the cutter roller by the blade bolt made by the professional manufacturer through the pressure block, which can be adjusted up and down within a certain range according to the thickness of the shaving.

4.Cutter shift of wood shaving machine: stop the machine, open the cover and replace the blade.

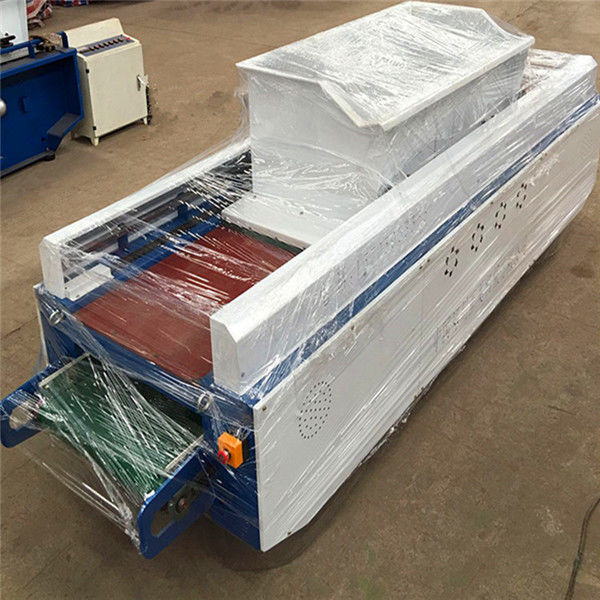

Packing & Delivery

330*155*135cm 2400kg 800kg/H Wood Shaving Machine 4



After Sales Service

1. One year for machinery warranty.


2. We have the cheap spare parts supply.


3. We can sent engineer to install and maintain on site.
