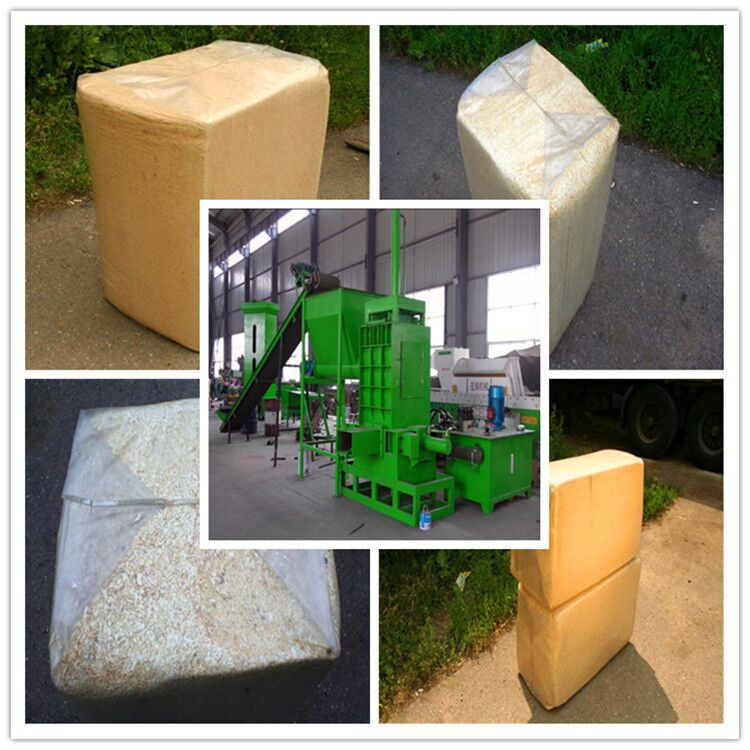

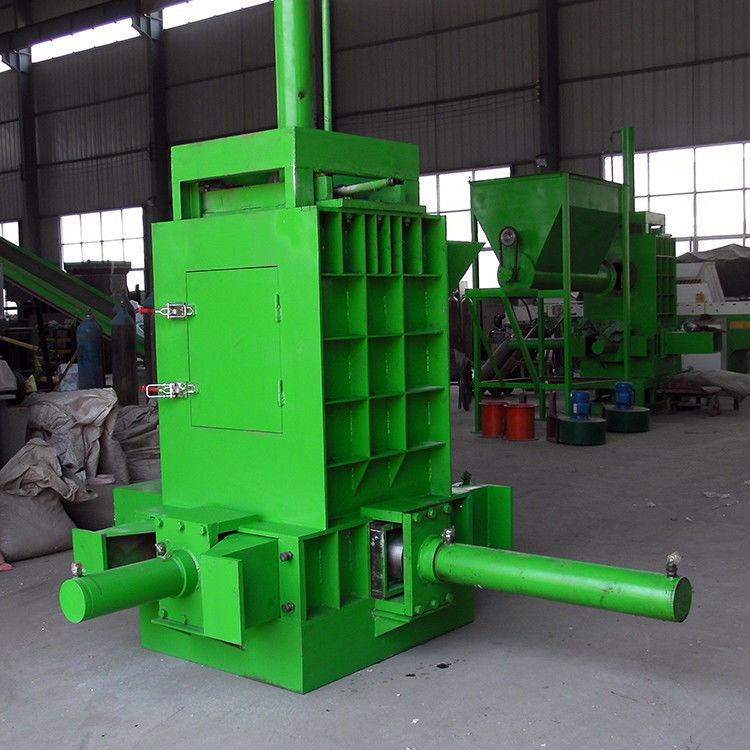

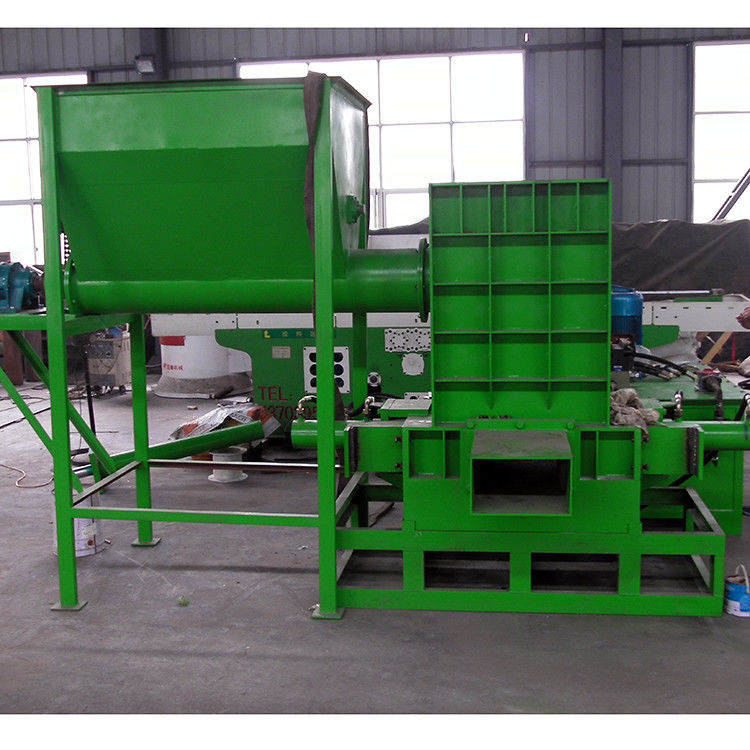

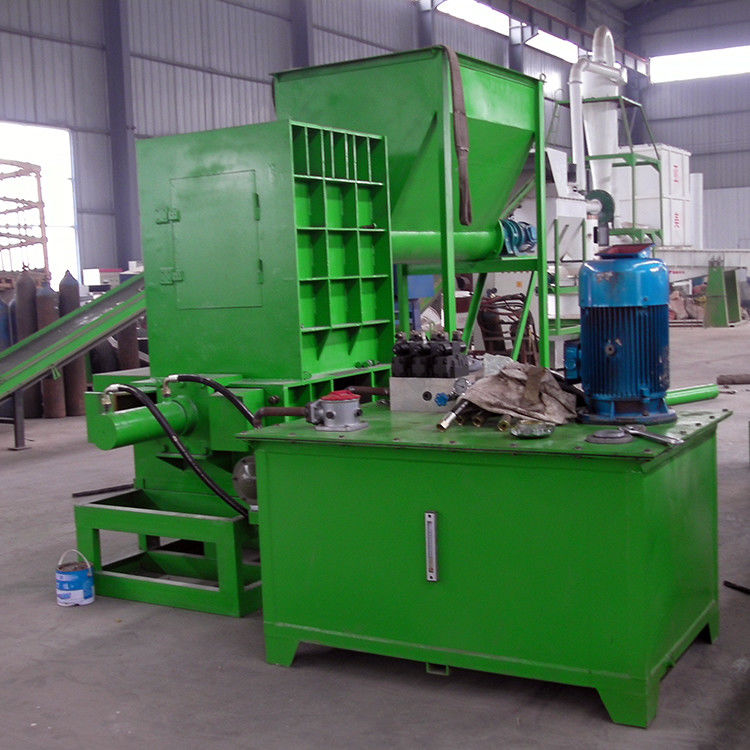

Sawdust Packing Machine Used for compressed packing of peanut shells, ginkgo leaves, corn cob chips and other materials
Company designs and manufactures various types of hydraulic baling press products, general-purpose hydraulic baling press for peanut shells, corn cobs, wood shavings, wood chip, gingko leaf, leaf tobacco, rice husk, straw, grass, paper, cotton, garment, plastics, wool, recyclable waste, waste bin, paper board, yarn, tobacco leaf, plastic, cloth, woven bags, knitted velvet, waste plastic bags all light bulbs, loose soft materials such as compression packaging materials, and greatly reduce the volume, increase the density, save up to 80% of the stack space, convenient transportation and storage.
It adopts Hydraulic transmission control system,high automatic,stable speed,high yield,easy operation,widely used in sawdust, shaving,cottonseed hull, peanut shell, corn cob press and packing, one-time compressed into a bag,convenient storage,which can greatly reduce the trandportation cost,what is more,it will be loose easily after press.it also can be used in Green building material, agricultural fertilizer et
Just compressed material, this product USES hydraulic motor rotation driven oil pump jobs when at work, in the extraction tank pressure oil, hydraulic oil delivery, spread to the hydraulic oil cylinder, driving the oil cylinder piston rod lateral movement compression in container of various materials, at last, by extrusion press side cylinder, good compression bag piece from the discharging mouth extrusion, finished bag piece of homework.
Technical data
| Model | QZD-1200 |
| Voltage | 380v-50hz |
| Power | 17.2kw |
| Outside size | 3.5*3.3*3.55m |
| end product size | 750*480*250mm |
| end product weight | 15-25kg |
| shift capacity | 1000-1500kg |
| weight | 4500kg |
| Auto-feeder | 4-6m |
Matters needing attention
Correct use of machinery and equipment, careful implementation of the maintenance system and strict observance of safe operation rules are the necessary conditions to extend the service life of machines, improve production efficiency and ensure safe production.To this end, it is recommended that users establish maintenance and safe operation procedures, operators should be familiar with the machine structure and operation procedures, but also must pay attention to the following points:
(1) High quality anti-wear hydraulic oil shall be strictly used when adding hydraulic oil into the oil tank. It must be filtered strictly and always keep enough oil. In case of shortage, the oil shall be filled immediately.
(2) The oil tank should be cleaned and replaced with new oil every half a year, but the first cleaning and filtering oil should not exceed one month. The new oil used once is allowed to be used again after strict filtration.
(3) The lubrication points of the machine shall be filled with lubricating oil at least once per shift as required.
(4) The sundries in the material box should be cleaned in time.
(5) Those who have not studied and do not understand the structure, performance and operation rules of the machine shall not operate the machine without authorization.
(6) In case of relatively serious oil leakage or abnormal phenomena occurring in the operation of the machine, it shall stop the operation immediately to analyze the causes and troubleshoot the machine. It shall not be forced to operate with diseases.
(7) During the operation of the machine, it is not allowed to repair or contact the moving parts. It is strictly prohibited to press materials in the material box with hands or feet.
(8) Pump, valve, pressure gauge adjustment, must be experienced technical workers, if found fault with the pressure gauge, should immediately check or update the table.
(9) The user shall make detailed maintenance and safe operation rules according to the specific conditions.
Our products are sold all over the world, you can rest assured.
