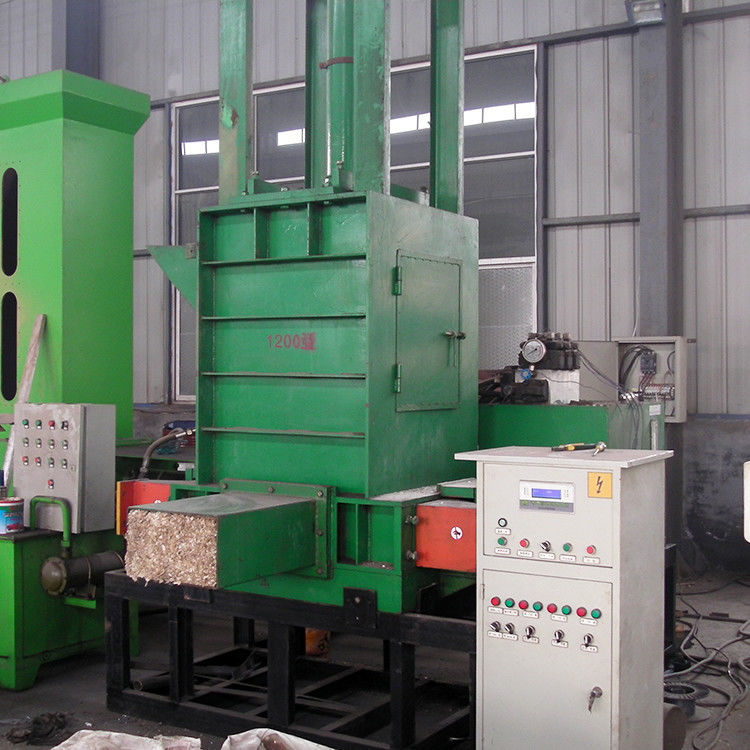

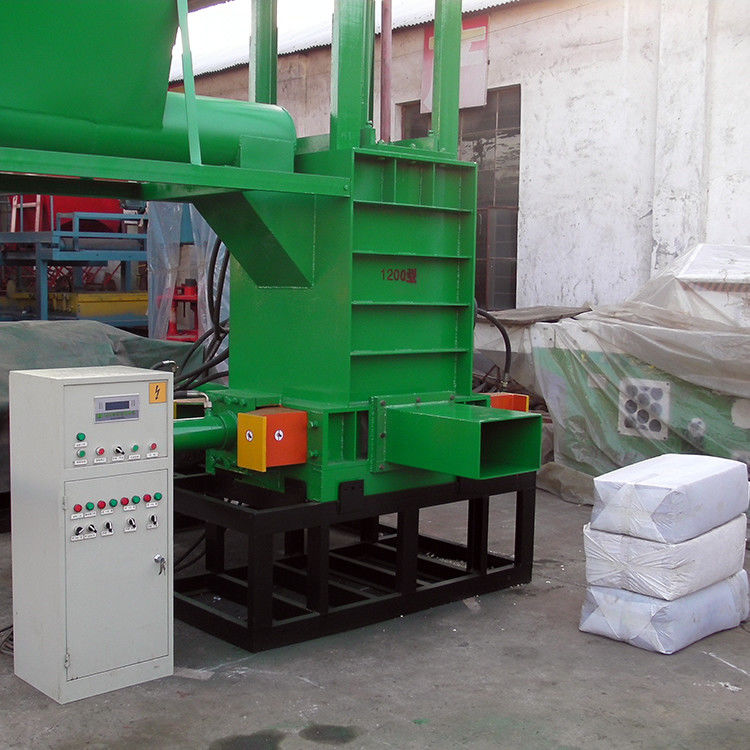

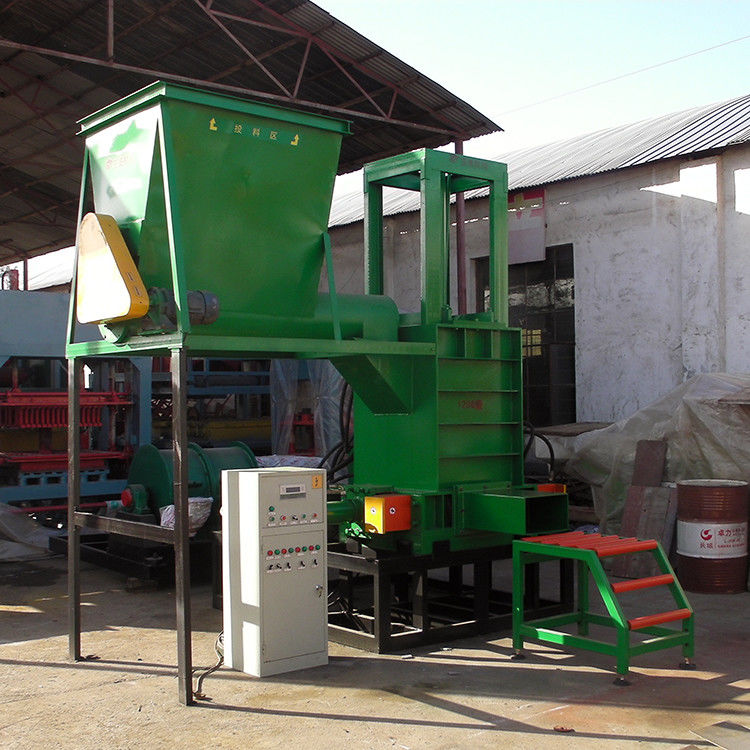

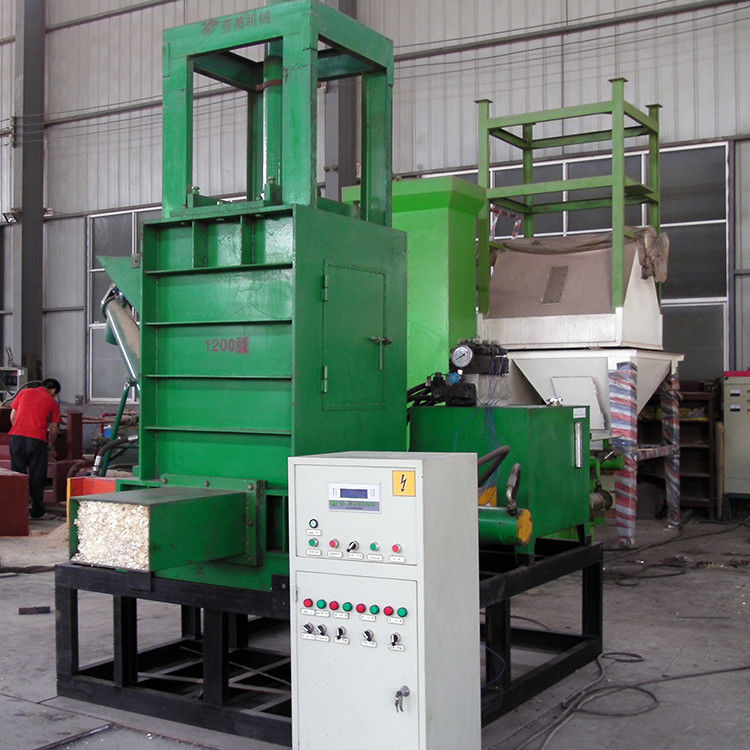

Sawdust Packing Machine Used for compressed packing of wood shavings, wood chip, gingko leaf, leaf tobacco
This machine adopts hydraulic transmission and control system.With high degree of automation, stable speed, high output, simple operation.Used for compressed packing of loose materials, sawdust, shavings, cottonseed shells, peanut shells, silver leaves, wood chips, ginkgo leaves, corn cob chips and other materials, one-time compression bagging is convenient for storage and reduces transportation cost.After compression, easy to take out loose, can also be used for environmental building materials, agricultural fertilizer, mushroom cultivation.Compression chamber size and block shape can be determined according to user requirements.
Company designs and manufactures various types of hydraulic baling press products, general-purpose hydraulic baling press for peanut shells, corn cobs, wood shavings, wood chip, gingko leaf, leaf tobacco, rice husk, straw, grass, paper, cotton, garment, plastics, wool, recyclable waste, waste bin, paper board, yarn, tobacco leaf, plastic, cloth, woven bags, knitted velvet, waste plastic bags all light bulbs, loose soft materials such as compression packaging materials, and greatly reduce the volume, increase the density, save up to 80% of the stack space, convenient transportation and storage.
Matters needing attention
1. Please confirm the power used by the machine and do not plug in the wrong power.The machine adopts three - phase four wire system. The wire is earthed zero wire for leakage protection.
2. Do not touch the heating sheet directly with your hands.
3. Do not flush the machine with water. Operators should not work barefoot when the workplace is wet.
4. Remember to unplug the machine when not in use.
5. Don't change the parts of the machine at will.
6. Main parts should be lubricated with oil frequently.
Technical data
| Model | QZD-1200 |
| Voltage | 380v-50hz |
| Power | 17.2kw |
| Outside size | 3.5*3.3*3.55m |
| end product size | 750*480*250mm |
| end product weight | 15-25kg |
| shift capacity | 1000-1500kg |
| weight | 4500kg |
| Auto-feeder | 4-6m |
Matters needing attention
Correct use of machinery and equipment, careful implementation of the maintenance system and strict observance of safe operation rules are the necessary conditions to extend the service life of machines, improve production efficiency and ensure safe production.To this end, it is recommended that users establish maintenance and safe operation procedures, operators should be familiar with the machine structure and operation procedures, but also must pay attention to the following points:
(1) High quality anti-wear hydraulic oil shall be strictly used when adding hydraulic oil into the oil tank. It must be filtered strictly and always keep enough oil. In case of shortage, the oil shall be filled immediately.
(2) The oil tank should be cleaned and replaced with new oil every half a year, but the first cleaning and filtering oil should not exceed one month. The new oil used once is allowed to be used again after strict filtration.
(3) The lubrication points of the machine shall be filled with lubricating oil at least once per shift as required.
(4) In case of relatively serious oil leakage or abnormal phenomena occurring in the operation of the machine, it shall stop the operation immediately to analyze the causes and troubleshoot the machine. It shall not be forced to operate with diseases.
(5) During the operation of the machine, it is not allowed to repair or contact the moving parts. It is strictly prohibited to press materials in the material box with hands or feet.
(6) The user shall make detailed maintenance and safe operation rules according to the specific conditions.
