Introduction of Wood Shaving Machine
Wood shaving machine, also known as wood shaving making machine, wood shaving mill, shaving machine and so on. Our wood shaving machine adopts Turkish processing technology. The new chain type wood shaving machine is improved on the original machine. It can be widely used in the shaving processing of all kinds of wood chips, small sticks, waste wood, leftovers of furniture factories, etc. the shavings produced are uniform in shape, high in yield and complete in specifications.
Wood shavings in logistics and transportation, some shavings are added to some fragile products as fillers to prevent damage; shavings are generally used as animal's nest filler in poultry farms, especially suitable for pet bedding and horse racing paddies. In addition, it can be used as ignition material for bioenergy.
The new type of high-output wood shaving machine using the same process of lengthening and widening the fuselage of the super-large bin multiple knife shafts are of higher output and better quality to ensure that your shavings production solves the problem of insufficient output and insufficient supply of shavings.
Based on the original foundation to improve the new mechanical wood shavings machine has four axis two axis single axis according to customer demand to buy different models is the output of the ultimate object and can be used to do different wood shavings output high quality good dusts long service life advantage.The shavings machine can process all kinds of hard miscellaneous wood, such as poplar birch, pine, acacia, rubber, branch, corner, edge, etc., into shavings. The shavings have strong thickness and no dust.
Technical Parameters of Wood Shaving Machine
| Name | Wood Shaving Machine |
| Model | 145 |
| Hopper length(cm) | 140 |
| Hopper width(cm) | 50 |
| Cutter shaft(piece) | 4 |
| Blade(set) | 6*4=24 |
| RPM(r/min) | 4500 |
| Input material length (cm) | 142 |
| Power(kw) | 18.5+18.5+0.37+5.5=42.87KW |
| Shaving depth(mm) | 1-5 |
| Hopper route(mm) | 2200 |
| Feeding speed (hydraulic) | 6-15(m/min) |
| Dimensions(L*W*H)(cm) | 515*115*180 |
| Weight(kg) | 2850 |

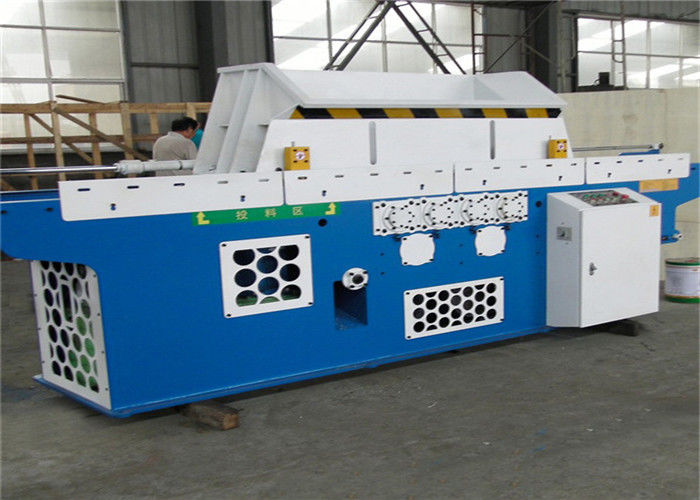

Picture of Wood Shaving Machine
Advantages of Wood Shaving Machine
1. Introduce Turkish technology.
2. No installation is required (the product can be produced after the customer wiring is completed before the factory installation and debugging).
3. There is no need for Civil Engineering (it can be produced on the flat ground without civil engineering to reduce the cost).
4. Schneider original packaging is used for electrical control.
5. 4-axis planing and 2-axis planing (increase the output of shavings to meet the needs of customers).
6. The thickness of shavings can be adjusted at will (to meet different market demands).
7. Compression box, which can be compressed for many times and formed at one time.
8. Adjust the times of compression according to the quantity of materials to achieve energy saving and emission reduction.
9. There are no vulnerable parts except for cutting tools (supporting grinder equipment and cutting tools can be used for many times).
10. Mechanical rotation (greatly reduce equipment maintenance rate, adapt to any area with large temperature difference).
11. The overall structure is made by laser cutting and numerical control processing (to ensure the interchangeability of machine parts).
12. High degree of automation, equipped with automatic feeding system, realize continuous feeding and greatly reduce labor cost.
Final Product Display
Working Principle of Wood Shaving Machine
1. log into the feed port. When starting the machine, turn back and forth, hydraulic pressure, down to the planer plane, after the blade is awesome, blow out the box under the air blow.
2. The wood shaving machine is mainly composed of shell, knife roller, motor, power distribution cabinet, hydraulic system, etc. Its frame is welded with high strength steel plate, which is the support foundation of the whole wood shaving machine.
3. The blade installed on the cutter roller is fixed on the knife roller by the blade bolt made by the professional manufacturer through the pressure block; it can be adjusted up and down within a certain range according to the thickness of the shaving.
4. Cutter roller of wood shaving machine: stop the machine, open the cover and replace the blade.
Photos From Workshop
Packing & Delivery
After Sales Service
1. One year for machinery warranty.
2. We have the cheap spare parts supply.
3. We can sent engineer to install and maintain on site.
