Introduction of Hydrauilc Wood Shaving Machine
This wood shaving machine is designed to produce wood shavings in desired and suitable size to be able to use them as bedding at chicken farming and horse breeding sectors. There are all adjustment possibilities to get wood shavings in desired size and high quality. Our machine designed to get good quality of wood shavings by shaving roundwood from 10 cm up to 45 cm diameter. Chicken farming and horse breeding companies would also get a chance to produce their own wood shavings needs in desired quality, size, and amount with our shaving machine.
Technical Parameters of Hydrauilc Wood Shaving Machine
| Name | Wood Shaving Machine |
| Model | 145 |
| Hopper length(cm) | 140 |
| Hopper width(cm) | 50 |
| Cutter shaft(piece) | 4 |
| Blade(set) | 6*4=24 |
| RPM(r/min) | 4500 |
| Input material length (cm) | 142 |
| Power(kw) | 18.5+18.5+0.37+5.5=42.87KW |
| Shaving depth(mm) | 1-5 |
| Hopper route(mm) | 2200 |
| Feeding speed (hydraulic) | 6-15(m/min) |
| Dimensions(L*W*H)(cm) | 515*115*180 |
| Weight(kg) | 2850 |

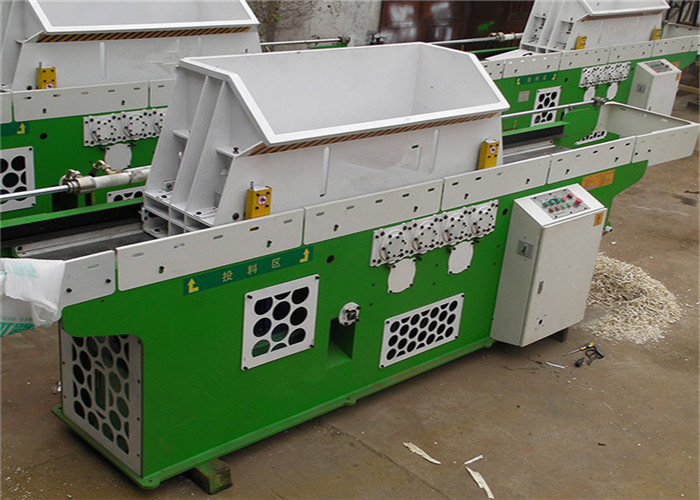

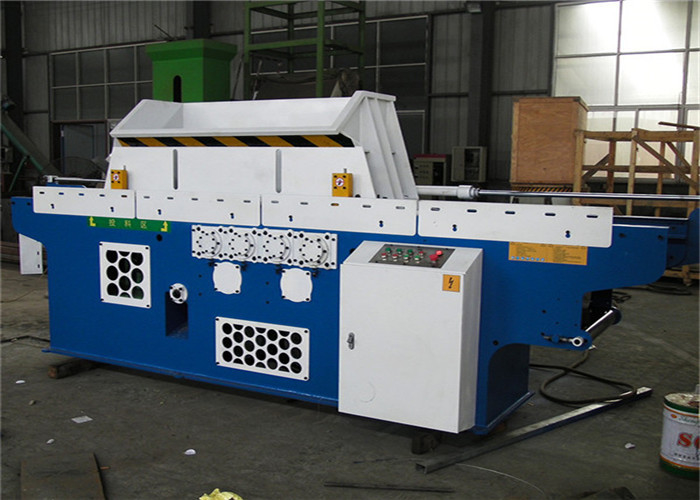

Picture of Wood Shaving Machine
Advantages of Hydrauilc Wood Shaving Machine
1. Automatic running from start to ending, continuo running, preventive system for wood jamming.
2. There is no need for Civil Engineering (it can be produced on the flat ground without civil engineering to reduce the cost).
3. Schneider original packaging is used for electrical control.
4. The thickness of particleboard can be adjusted at will (to meet different market demands).
5. There are no vulnerable parts except for cutting tools (supporting grinder equipment and cutting tools can be used for many times).
6. The overall structure is made by laser cutting and numerical control processing (to ensure the interchangeability of machine parts).
7. High degree of automation, equipped with automatic feeding system, realize continuous feeding and greatly reduce labor cost.
Final Product Display
Working Principle of Hydrauilc Wood Shaving Machine
1. log into the feed port. When starting the machine, turn back and forth, hydraulic pressure, down to the planer plane, after the blade is awesome, blow out the box under the air blow.
2. The wood shaving machine is mainly composed of shell, knife roller, motor, power distribution cabinet, hydraulic system, etc. Its frame is welded with high strength steel plate, which is the support foundation of the whole wood shaving machine.
3. The blade installed on the cutter roller is fixed on the knife roller by the blade bolt made by the professional manufacturer through the pressure block; it can be adjusted up and down within a certain range according to the thickness of the shaving.
4. Cutter roller of wood shaving machine: stop the machine, open the cover and replace the blade.
Photos From Workshop
Packing & Delivery
After Sales Service
1. One year for machinery warranty.
2. We have the cheap spare parts supply.
3. We can sent engineer to install and maintain on site.
