Introduction of Wood Shaving Machine
The wood shaving machine produced by our company is a new product that adopts new technology and then improves it according to the needs of wood shavings and the current status of wood. This wood shaving machine can process all kinds of wood (such as sticks, branches, logs, furniture scraps from furniture factories, waste wood branches, etc.) into batches of thin wood shavings with uniform thickness.
The wood enters the machine through the feed port and is sliced by the blade inside the machine to punch the shavings. The size and thickness of the shavings are even, which is not much different from the wood shavings produced by the wood factory, it also saves time and labor. The use of wood shavings: it can be used as particleboard (plywood), as a raw material for wood pulp paper in paper mills, as a transport filler for fragile products transportation companies, as stuffing in the nests of pigs, cattle, sheep, and various animals, and can also be used as bioenergy.
Technical Parameters of Wood Shaving Machine
Name | Wood Shaving Machine |
Model | 1460-4 |
Cutter shaft(piece) | 4 |
Length of blade | 60cm |
Number of blades | 7*4=28 |
Power supply | 380v-50hz-3p |
Total power | 25kw |
Cutter head speed | 3800rpm |
Cutter head diameter | 158 mm |
Shaving depth | 0.5-2mm |
Max. Log input length | 140cm |
Max.log input width | 60cm |
Working distance | 1700mm |
Capacity | 1200-1500kg/h |
Machine dimensions | 380*155*135cm |
Weight | 3000kg |

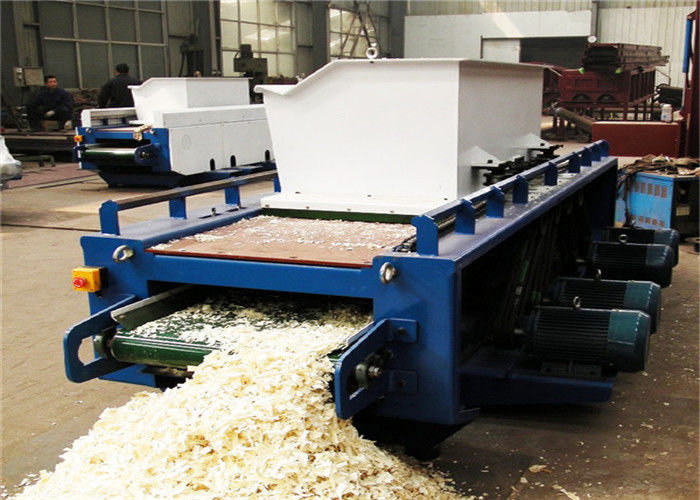

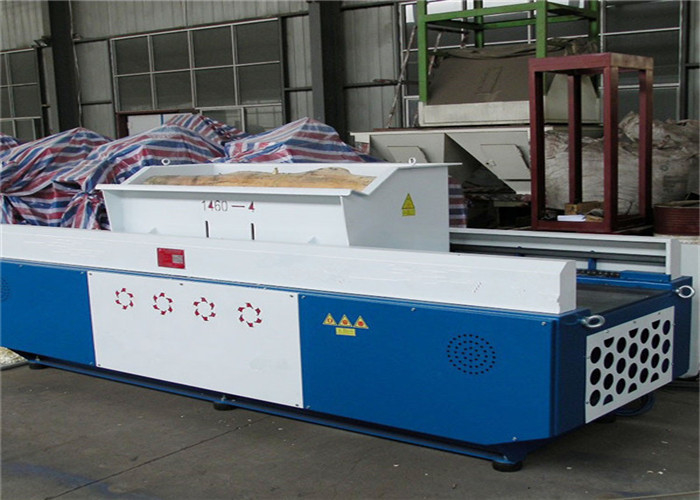

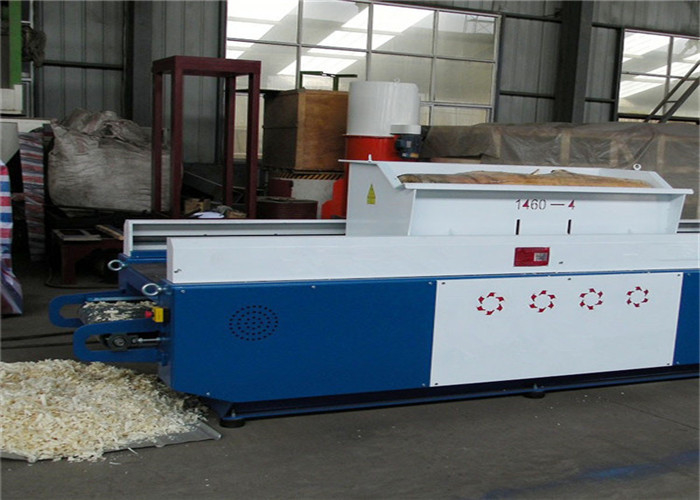

Picture of Wood Shaving Machine
Advantages of Wood Shaving Machine
1.No installation is required (the product can be produced after the customer wiring is completed before the factory installation and debugging).
2. There is no need for Civil Engineering (it can be produced on the flat ground without civil engineering to reduce the cost).
3. Schneider original packaging is used for electrical control.
4. 4-axis planing and 2-axis planing (increase the output of wood shavings to meet the needs of customers).
5. The thickness of shavings can be adjusted at will (to meet different market demands).
6. Compression box, which can be compressed for many times and formed at one time.
7. Adjust the times of compression according to the quantity of materials to achieve energy saving and emission reduction.
8. There are no vulnerable parts except for cutting tools (supporting grinder equipment and cutting tools can be used for many times).
9. Mechanical rotation (greatly reduce equipment maintenance rate, adapt to any area with large temperature difference).
10. The overall structure is made by laser cutting and numerical control processing (to ensure the interchangeability of machine parts).
11. High degree of automation, equipped with automatic feeding system, realize continuous feeding and greatly reduce labor cost.
Final product display
Application of Wood Shavings
After Sales Service
1. One year for machinery warranty.
2. We have the cheap spare parts supply.
3. We can sent engineer to install and maintain on site.
FAQ
1)Are you a factory or trade company?
We have our own factory As an international supplier, a professional manufacturer and a general international trader.
2) How can I trust your company?
1.Henan Wheat Import And Export Company Limited, established in 2005, located in Zhengzhou City--Capital of Henan Province, the center of China mainland.
2.We have special QC department, testing every single equipment, from voltage to appearance, our workers will inspect strictly in order to supply the best and most stable machine for our customers.
3.Our equipment are strictly designed and produced according to CE standard, we care for every details and the quality.
3) How long is your delivery time?
Generally it is 30 days after received your deposit.
4) Is your price competitive?
We can provide the highest quality machines at the best price.
