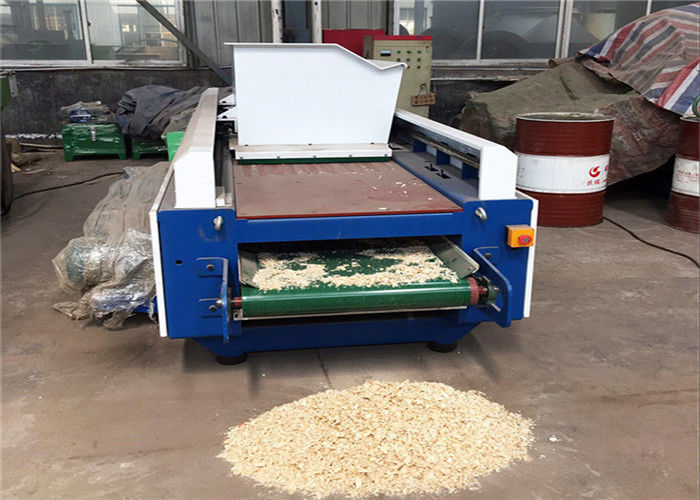

Introduction of Wood Shaving Machine
Wood Shaving Machine, also called wood crusher machine,shaving machine, wood chip machine. This kind of wood shaving machine can process wood club, wood branch, wood crotch, wood leftover material and other wood to be wood shavings with uniform thickness.
Wood Shaving Machine is designed to produce wood shavings in desired and suitable size to be able to use them as bedding at chicken farming and horse breeding sectors. There are all adjustment possibilities to get wood shavings in desired size and high quality.
Wood shavings from this machine are with small size, and mainly used in shaving board, plywood, furniture manufacturing, paper manufacturing factory,as filling material in logistics field, for poultry breeding Bedding with different thickness, can be as Ignition content, etc.
Wood Shaving Machine widely use, our machine can produce small volume and light wood shavings, which can be used in paper mill, transportation filler and animal bedding etc, stable performance and low noise.
Name | wood shaving machine |
Model | 1460-4 |
Number of cutter heads | 4 |
Length of blade | 60cm |
Number of blades | 7*4=28 |
Power supply | 380v-50hz-3p |
Total power | 25kw |
Cutter head speed | 3800rpm |
Cutter head diameter | 158 mm |
Shaving depth | 0.5-2mm |
Max. Log input length | 140cm |
Max.log input width | 60cm |
Working distance | 1700mm |
Machine dimensions | 380*155*135cm |
Weight | 3000kg |
Capacity | 1200-1500kg/h |
Final Product Display
Advantages of Wood Shaving Machine
1. Introduce Turkish technology.
2. No installation is required (the product can be produced after the customer wiring is completed before the factory installation and debugging)
3. There is no need for Civil Engineering (it can be produced on the flat ground without civil engineering to reduce the cost) .
4. Schneider original packaging is used for electrical control.
5. 4-axis planing and 2-axis planing (increase the output of wood chips to meet the needs of customers).
6. The thickness of particleboard can be adjusted at will (to meet different market demands).
7. Compression box, which can be compressed for many times and formed at one time.
8. Adjust the times of compression according to the quantity of materials to achieve energy saving and emission reduction.
9. There are no vulnerable parts except for cutting tools (supporting grinder equipment and cutting tools can be used for many times).
10. Mechanical rotation (greatly reduce equipment maintenance rate, adapt to any area with large temperature difference).
11. The overall structure is made by laser cutting and numerical control processing (to ensure the interchangeability of machine parts).
12. High degree of automation, equipped with automatic feeding system, realize continuous feeding and greatly reduce labor cost.
