Introduction of Wood Shaving Machine
Wood Shaving Machine, also called wood shaving mill,shaving machine, wood chip machine. This kind of wood shaving machine can process wood, logs, timber, wood club, wood branch, wood crotch, wood leftover material and other wood to be wood shavings with uniform thickness.
Wood Shaving Machine to produce wood shavings to use them as bedding at chicken farming and horse breeding sectors. There are all adjustment possibilities to get wood shavings in desired size and high quality.
Wood shavings from this machine are with small size, and mainly used in poultry breeding bedding with different thickness, can be as Ignition content, etc.
Wood Shaving Machine widely use, our machine can produce small volume and light wood shavings, which can be used in paper mill, transportation filler and animal bedding etc, stable performance and low noise.
Technical Parameters of Wood Shaving Machine
| Name | Wood Shaving Machine |
| Model | 145 |
| Hopper length(cm) | 140 |
| Hopper width(cm) | 50 |
| Cutter shaft(piece) | 4 |
| Blade(set) | 6*4=24 |
| RPM(r/min) | 4500 |
| Input material length (cm) | 142 |
| Power(kw) | 18.5+18.5+0.37+5.5=42.87KW |
| Shaving depth(mm) | 1-5 |
| Hopper route(mm) | 2200 |
| Feeding speed (hydraulic) | 6-15(m/min) |
| Dimensions(L*W*H)(cm) | 515*115*180 |
| Weight(kg) | 2850 |

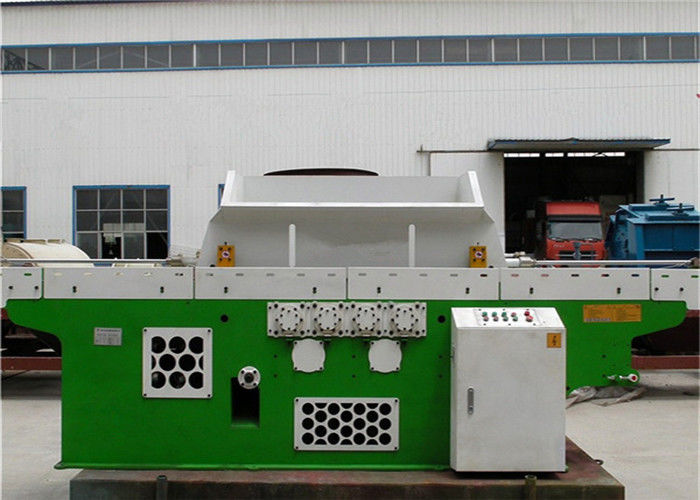

Picture of Wood Shaving Machine
Advantages of Wood Shaving Machine
1. Automatic feeding equipment, greatly improve the production speed, it also saves time and manpower.
2. Simple operation, high productivity; compact structure, convenient maintenance.
3. Preventative System for Wood Jamming, conveyor feeding shavings out .
4. Energy-saving, small investment, good economic benefits.
5. Powerful working system, safety Protection, high quality blade, long service life, cost saving.
6. Shaving wood size can be adjusting by yourself, meet customer different requirements, high efficiency and high quality.
7. Energy can be alternative of electric and diesel, meet the needs of customers of different countries and regions.
8. Machine can work continuously and shorten work time, improve work efficiency and create more business value.
9. Widely application, can processing logs, branches, edge into shavings, high speed, low loss rate.
Final product display
Working Principle of Wood Shaving Machine
The wood pressing device presses the wood on the platform by the air cylinder, and the wood reciprocating movement device is driven by the hydraulic cylinder, and the sliding table loaded into the wood moves reciprocally along the platform, and the wood chips are planed and pin by the shaving knife.
Due to the use of air cylinder pressing device and hydraulic reciprocating motion device, the contact pressure between wood and shaving cutter is uniform, and the reciprocating motion speed of wood is uniform. Therefore, the chip with uniform thickness can be processed.
Photos From Workshop
Packing & Delivery
After Sales Service
1. One year for machinery warranty.
2. We have the cheap spare parts supply.
3. We can sent engineer to install and maintain on site.
FAQ
1)Are you a factory or trade company?
We have our own factory as an international supplier, a professional manufacturer and a general international trader.
2) How can I trust your company?
1.Henan Wheat Import And Export Company Limited, established in 2005, located in Zhengzhou City--Capital of Henan Province, the center of China mainland.
2.We have special QC department, testing every single equipment, from voltage to appearance, our workers will inspect strictly in order to supply the best and most stable machine for our customers.
3.Our equipment are strictly designed and produced according to CE standard, we care for every details and the quality.
3) How long is your delivery time?
Generally it is 30 days after received your deposit.
4) Is your price competitive?
We can provide the highest quality machines at the best price.
Our products are sold all over the world, you can rest assured.
