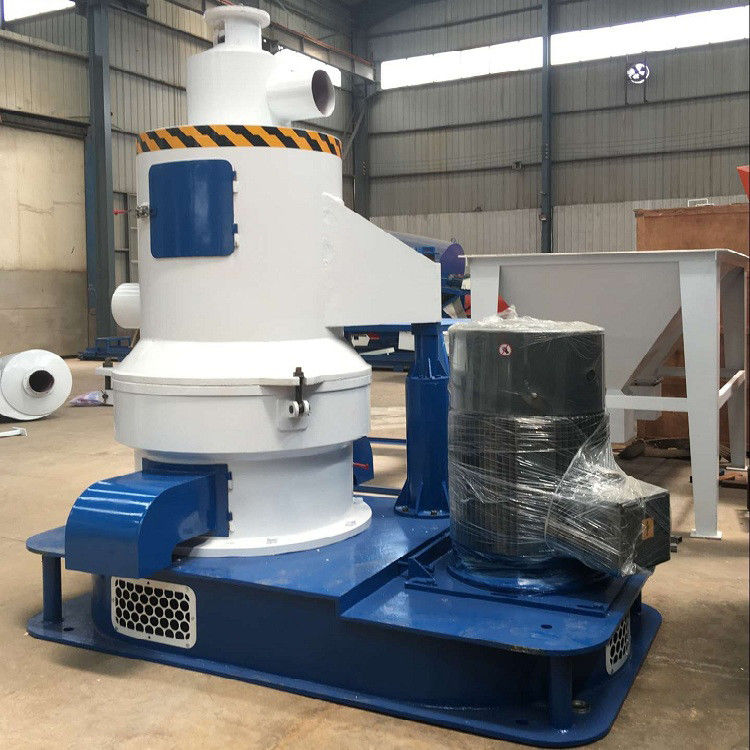

vertical roller Wood Powder mill,Fineness 30--300 mesh can be adjusted at will
A crusher is a machine that can use external forces to deform materials and break them into smaller particles.Pulverizer has been widely used in all walks of life.
In view of the pulverizer is the basic processing technology in the production and application of Traditional Chinese medicine, the superfine pulverizer has attracted more and more people's attention, although it started late, the varieties developed are relatively few, but it has revealed its unique advantages and broad application prospects.
Roller grinding wood powder machine, centrifugal grinding and impact crushing, shearing, impact crushing, extrusion pieces as a whole, using fluid mechanics principle, can be made of wood, fiber, non-metallic mineral material grinding mill below 350 mesh, with good performance, high efficiency, low wear and tear, cover an area of an area small, easy to install, easy to operate, etc., product granularity index is good, stable performance.This machine is widely used for ultra-fine crushing of non-combustible and explosive materials with mohs hardness below 6.
Suitable for: miscellaneous wood powder, bamboo powder, cork powder, polychlorinated plastic, tooth material, dye, leather, mica, fine cotton, sea products, seasoning, feed, rice husk, corn core, peanut shell, fruit shell, rice bran, pesticide, charcoal, hard foam, fine tire wire, etc.Is bakelwood, plastic, paper, mosquito-repellent incense, sanitary incense, feed, Chinese herbal medicine, breeding and other industries indispensable wood crushing equipment.
| Model NO. | 550 | 850 | 950 | 1000 |
| (water-cooling double chamber) | ||||
| Power (kw) | 11-18.5 | 22-30 | 45-55 | 90-110 |
| Rotate speed (r/min) | 3600 | 3300 | 2900 | 2900 |
| Number of cutter | 36 | 72 | 96 | 192 |
| Degree of fineness (mesh) | 10-500 | 10-500 | 10-500 | 10-500 |
| Feeding particle size(mm) | <30-35mm | <30-40mm | <40-50mm | <50-60mm |
| Material Moisture | <6% | <6% | <6% | <6% |
| Weight(kg) | 1600 | 2600 | 3800 | 9200 |
| Dimension(m) | 4.5×1.8×3.5 | 7×2.5×4.3 | 7×2.8×4.3 | 12*3.5*5.5 |
Characteristics of vertical roller mill
1. Compared with other roller mills, the yield is increased by 20-30% under the same dynamic condition, and the rolling pressure of the grinding wheel on the material is increased by 60-80% under the effect of high pressure centrifugal force;The yield of hammer mill is improved by 150~300%
2. Energy saving: under the condition of the same output and fineness index, the energy consumption of pulverized sawdust materials is only about 1/3 of that of air grinding;
3, equipped with a graded impeller stepless governor, do not need to stop the product size can be adjusted, and fine powder can be all recovered, not pollution of the environment.
4, the machine has cooling function, low temperature when grinding, especially suitable for processing heat sensitive and fiber materials, the product particle size is uniform.
5. The grinding device adopts overlapped multistage sealing, with good sealing performance.
6. Grinding part of the wear parts with alloy wear resistant material, long service life.
Our products are sold all over the world, you can rest assured.
