500kg/H Wood Powder Mill Water Cooling Double Chamber

500kg/H Wood Powder Mill Water Cooling Double Chamber

  • Highlight

    500kg/H Wood Powder Mill

    ,

    Water Cooling Wood Powder Mill

    ,

    Double Chamber Wood Powder Mill

  • Name
    Wood Powder Mill
  • Brand Name
    Yamei
  • Weight
    2600 Kg
  • Download
    500 Kg/h
  • Dimension(m)
    7×2.5×4.3
  • Degree Of Fineness
    10-500 Mesh
  • Place of Origin
    Henan, China
  • Brand Name
    YAMEI
  • Certification
    CE
  • Model Number
    Y-850
  • Minimum Order Quantity
    1 SET
  • Price
    $45,000.00 - $50,000.00 / Set
  • Packaging Details
    wood cas for wood powder making machine
  • Delivery Time
    7-30day
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set/Sets per Month

500kg/H Wood Powder Mill Water Cooling Double Chamber

500kg/H Wood Powder Mill Water Cooling Double Chamber



Wood Powder Mill is widely used in pharmaceutical, food, chemical, it can crush various of material. The machine is made up of feeding material part and crush part, and dust collect part. Its coniguration is very briefness, all the parts which contact the material are made of stainless steel.

It makes use of the high-speed relative motion between the movable gear disc and the fixed gear disc, the material can be crushed through tooth impact, friction and impact between the materials.


principle of operation


After rough crushing, the material is transported to the grinding chamber of the main machine by the feeding device. The material and the high-speed rotating device and particles collide, collide, shear and squeeze each other to realize ultra-fine grinding. The crushed materials are transported to the impeller classification area by the rising air flow. Under the action of the centrifugal force of the grading wheel and the suction force of the fan, the coarse and fine particles are separated. The qualified fine powder is collected by the cyclone collector, and the unqualified materials are returned by the internal classifier. The crushing cavity is crushed again.

Model NO. 550 850 950 1000
(water-cooling double chamber)
Power (kw) 11-18.5 22-30 45-55 90-110
Rotate speed (r/min) 3600 3300 2900 2900
Number of cutter 36 72 96 192
Degree of fineness (mesh) 10-500 10-500 10-500 10-500
Feeding particle size(mm) <30-35mm <30-40mm <40-50mm <50-60mm
Material Moisture <6% <6% <6% <6%
Weight(kg) 1600 2600 3800 9200
Dimension(m) 4.5×1.8×3.5 7×2.5×4.3 7×2.8×4.3 12*3.5*5.5

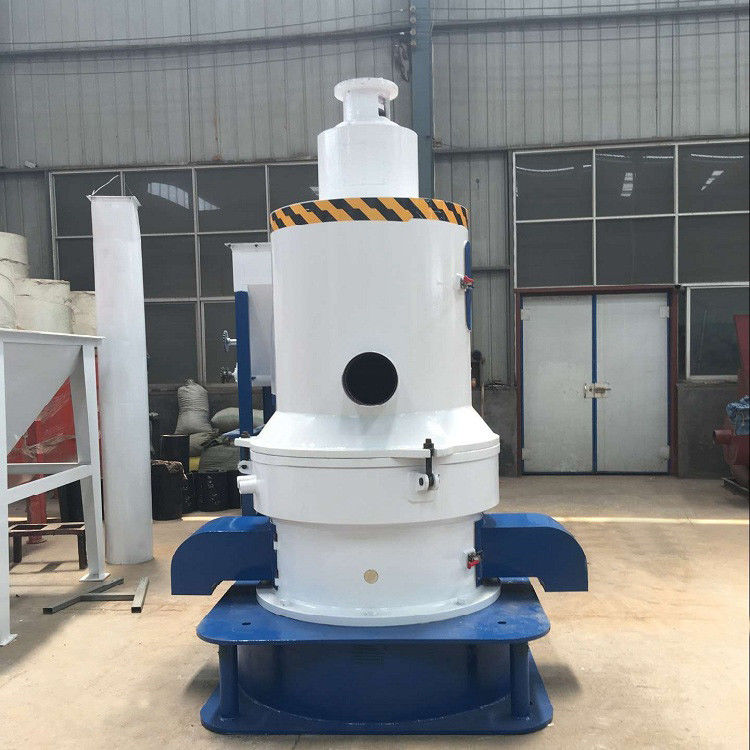

500kg/H Wood Powder Mill Water Cooling Double Chamber 0

The wood mill is driven by an electric motor to run the spindle at high speed, so that the mechanical energy can produce high strength impact force, compression force, cutting force and friction force on the crushed material, so the machine has a unique crusher function for the fiber material.



The main features:

1. Tap water can be injected to cool the water.All the bearings are water-cooled to protect the bearings.

2. With fineness analyzer, the material fineness can be controlled at will.



Range of application

Wood flour machine is suitable for: wood powder, wood chaff, bamboo powder, chestnut, elm wood powder, wood grain, wood, leather grain, wood powder, cedar wood powder, dried small shrimps, anise powder, Chinese prickly ash, chili powder, pepper, refined cotton, feather, feather stalk, straw, wheat bran, rice husk, glued wood, potato ballast, cassava, Chinese herbal medicine, fish meal, cake, sanshui magnesium silicate, etc all fiber materials crushing process.

Is bakelwood, plastic, paper, mosquito-repellent incense, sanitary incense, feed, Chinese herbal medicine, breeding and other industries indispensable wood crushing equipment.



Noted: flammable and explosive materials prohibited to crushing!
