1.8m Wood Powder Mill

1.8m Wood Powder Mill

  • High Light

    1.8m Wood Powder Mill

    ,

    500kg/h Wood Powder Mill

  • Place Of Origin
    Henan, China
  • Brand Name
    Yamei
  • Power
    55 Kw
  • Download:
    3800 Kg
  • Max Dia Of Input
    ≤20mm
  • Capacity
    500 Kg/h
  • Dimension(m)
    7*2.8*4.3
  • Degree Of Fineness
    100-325 Mesh
  • Place of Origin
    Henan, China
  • Brand Name
    YAMEI
  • Certification
    CE
  • Model Number
    Y-950
  • Minimum Order Quantity
    1 SET
  • Price
    $45,000.00 - $50,000.00 / Set
  • Packaging Details
    wood cas for wood powder making machine
  • Delivery Time
    7-30day
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set/Sets per Month

1.8m Wood Powder Mill

Wood Powder Mill Equipped With A Graded Impeller Stepless Governor Do Not Need To Stop The Product Size Can Be Adjusted



Super fine wood powder machine in the market is also known as "high fineness wood powder machine", high fineness wood powder machine integrated at home and abroad a variety of crushing principles, is a collection of a variety of grinding principles as one of the efficient energy-saving wood powder mill.In addition, the machine is made fine, high processing technology, the use of a double-layer body, the body is injected with tap water to play the role of water cooling, into a new material, sound insulation, heat function, so the fiber mill in the production and use of small noise, no vibration.The high fineness wood powder machine is beautiful in appearance, strong and durable, high in output, and more than 50% more efficient than the traditional wood powder machine. It is an ideal pulverizing equipment that can not be replaced by any crushing equipment, filling the gap in the market.

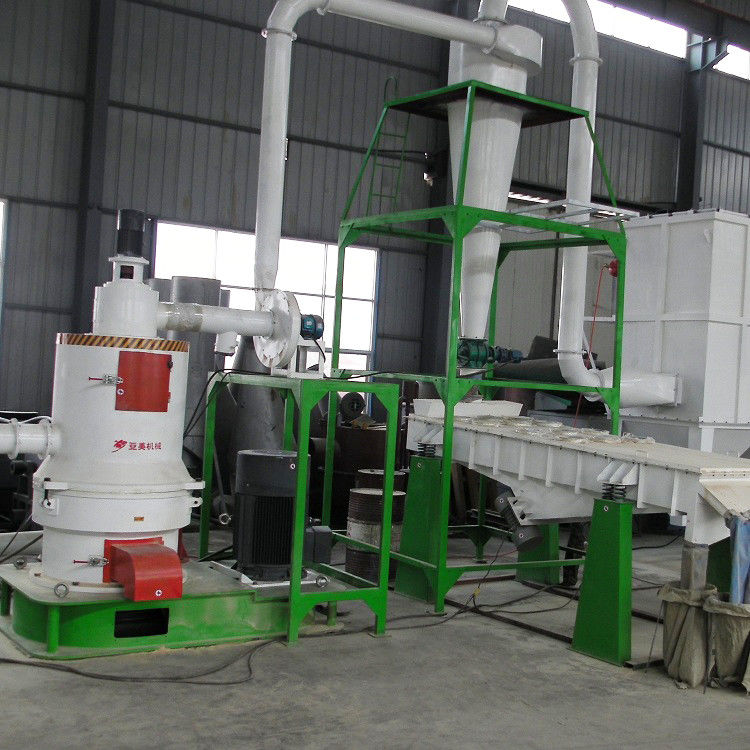

structure

1. The wood flour machine is composed of three parts: the body, the middle body and the lower body.

2. The crushing knife is composed of type 7 knife, type 1 knife and centrifugal knife.

3. By the payment machine;Fan, powder collector, dust collector

4. The main machine crushing chamber adopts type 7 knife, type 1 knife and centrifugal knife, with coarse crushing, fine crushing and centrifugal to be repeated crushing. Driven by the motor, the rotor of the crusher operates at high speed, so that the machine produces high speed air flow to crush the material to generate high strength impact force, compression force, cutting force and friction force, to achieve the unique crushing function.

5. In the process of three kinds of blade cutting grinding, high speed rotor airflow over the blade direction, materials in the airflow speed and repeated impact, friction, cutting by three kinds of crushing effect at the same time, the crushed material with airflow into the analyzer is analyzed, and when the rotor of the centrifugal force role by parsers and the centripetal force of the by air, so when the centrifugal force is greater than the centripetal force, the fine particles with airflow into the powder collection, coarse particles in centrifugal rifle crushing chamber to smash until you are satisfied with the fineness of is reached.



Suitable for: miscellaneous wood powder, bamboo powder,  seasoning, feed, rice husk, corn core, peanut shell, fruit shell, rice bran, pesticide, charcoal, hard foam, fine tire wire, etc.

Model NO. 550 850 950 1000
(water-cooling double chamber)
Power (kw) 11-18.5 22-30 45-55 90-110
Rotate speed (r/min) 3600 3300 2900 2900
Number of cutter 36 72 96 192
Degree of fineness (mesh) 10-500 10-500 10-500 10-500
Feeding particle size(mm) <30-35mm <30-40mm <40-50mm <50-60mm
Material Moisture <6% <6% <6% <6%
Weight(kg) 1600 2600 3800 9200
Dimension(m) 4.5×1.8×3.5 7×2.5×4.3 7×2.8×4.3 12*3.5*5.5

Characteristics of vertical roller mill

1. Compared with other roller mills, the yield is increased by 20-30% under the same dynamic condition, and the rolling pressure of the grinding wheel on the material is increased by 60-80% under the effect of high pressure centrifugal force;The yield of hammer mill is improved by 150~300%

2, the machine has cooling function, low temperature when grinding, especially suitable for processing heat sensitive and fiber materials, the product particle size is uniform.

3. Dust removal effect fully meets the national dust emission standard.

4. The grinding device adopts overlapped multistage sealing, with good sealing performance.

5. Grinding part of the wear parts with alloy wear resistant material, long service life.

6. Stable mechanical performance, able to work continuously for 24 hours



1.8m Wood Powder Mill 0







Noted: flammable and explosive materials prohibited to crushing!
