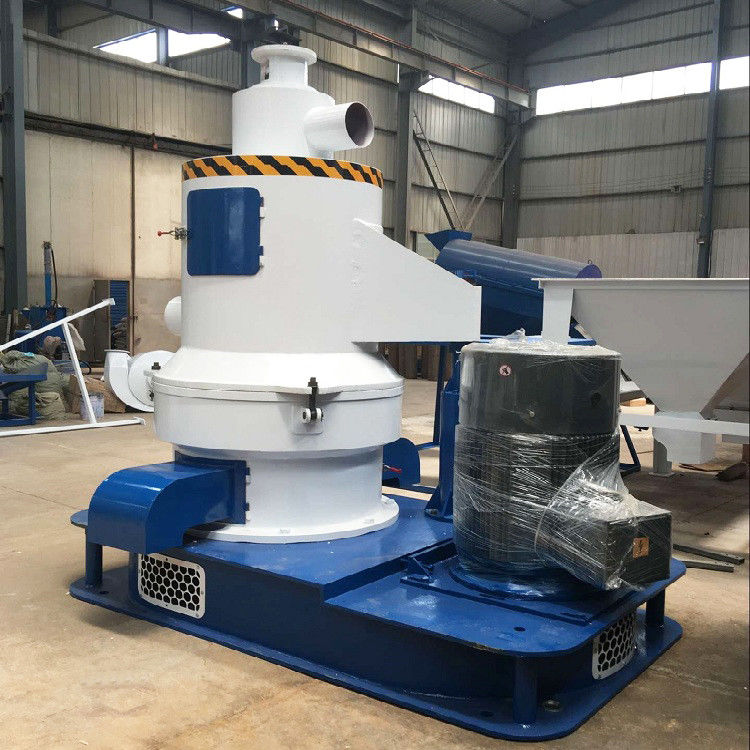

The wood powder machine has precise structure, low noise and no vibration
Mill's working principle is that the grinding roller is rolled tightly on the grinding ring under the action of centrifugal force. The shovel scoops the material to the middle of the grinding roller and the grinding ring. The material is broken into powder under the action of the grinding pressure, and then Under the action of the fan, the powdered material is blown through the analyzer, and the fineness-required material passes through the analyzer. The regrind chamber can no longer meet the required requirements and continue to be ground. The material of the analyzer enters the cyclone separator and is collected and collected. The exhaust uses industrial filter cloth to separate exhaust air into powder.
Introduction:
1. This wood crushing machine mainly crushing for soft mineral like that the hardness at
about 3 level.
2. Suitable Material:Fragile material, ductile material, fibrous Material etc.solid product
or other material which easily coagulated into piece.
3. The mesh of grinding fineness in one time were at 10-325,and can change different
powder or granule, fibrous at your own request. The rate of acceptability could be 100%,
no residue, unnecessary for provide any drying equipment.
Suitable for:
miscellaneous wood powder,dye, leather, mica, fine cotton, sea products, rice husk, corn core, peanut shell, rice bran, pesticide, charcoal, hard foam, fine tire wire, etc.
| Model NO. | 550 | 850 | 950 | 1000 |
| (water-cooling double chamber) | ||||
| Power (kw) | 11-18.5 | 22-30 | 45-55 | 90-110 |
| Rotate speed (r/min) | 3600 | 3300 | 2900 | 2900 |
| Number of cutter | 36 | 72 | 96 | 192 |
| Degree of fineness (mesh) | 10-500 | 10-500 | 10-500 | 10-500 |
| Feeding particle size(mm) | <30-35mm | <30-40mm | <40-50mm | <50-60mm |
| Material Moisture | <6% | <6% | <6% | <6% |
| Weight(kg) | 1600 | 2600 | 3800 | 9200 |
| Dimension(m) | 4.5×1.8×3.5 | 7×2.5×4.3 | 7×2.8×4.3 | 12*3.5*5.5 |
Collapse common faults one
No powder or low output, low yield
The reasons are as follows: (1) The powder locker is not adjusted properly and the seal is not strict, resulting in powder sucking. (2) Large blade wear, material can not afford shovel.
Remedy: (1) Check and adjust the lock of the powder locker. (2) Replace the new blade.
Raymond
Collapse common fault two
The finished powder is too thick or too fine
The reasons are as follows: (1) The blades of the analyzer are seriously worn and cannot be classified. (2) The air volume of the fan is not appropriate.
Remedy: (1) Change the length of the blade properly. Close the air flow of the small fan. (2) Too fine should increase the imported air volume.
Collapse common fault three
The host current rises and the fan current drops
The reasons are as follows: (1) Excessive feeding, air ducts are blocked by powder, the exhaust of the pipeline is not smooth, the circulating current is heated to make the main current, the temperature of the engine increases, and the fan current drops.
Exclusion methods: (1) reduce the amount of feed, clear air duct powder. (2) Open the large surplus duct valve, the temperature of the incoming material is controlled below 6°C.
Noted: flammable and explosive materials prohibited to crushing!
