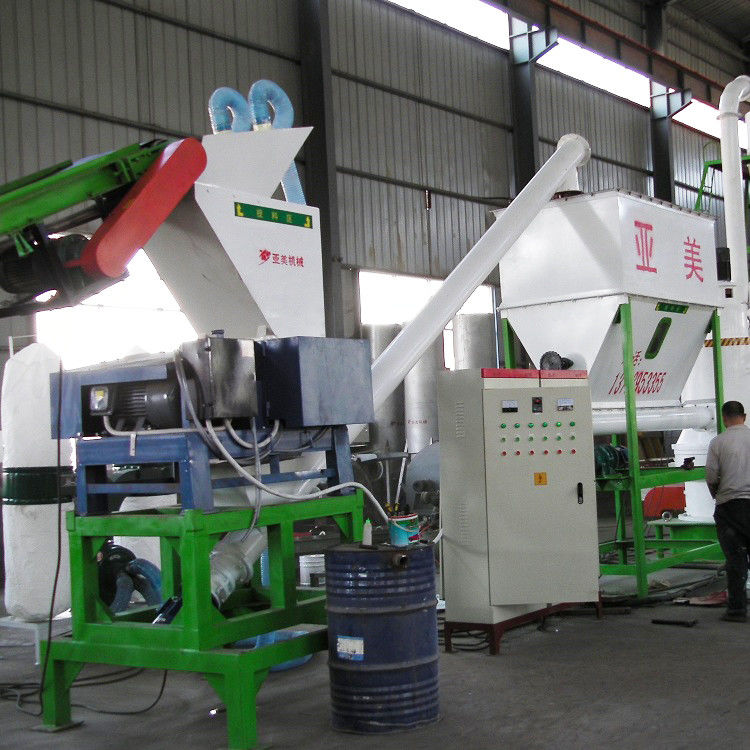

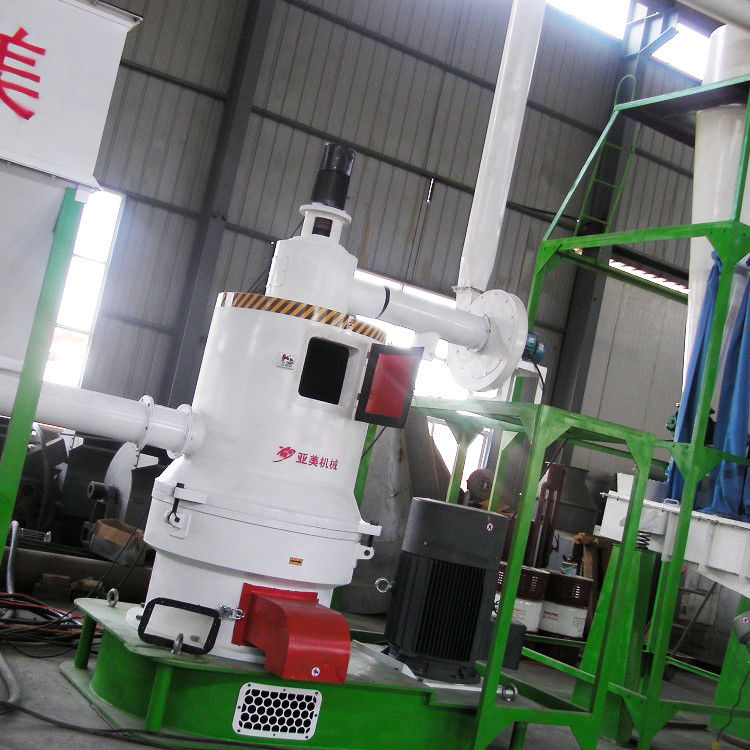

Y-950 Wood Powder Mill Is Suitable For Chinese herbal medicine, fish meal Etc Materials Crushing Process.
Superfine wood powder machine is used for light body materials, fiber materials, brittle materials and ductile materials such as special difficulty grinding milling equipment, are our latest products, the machine improves the fine degree of the finest of wood powder can reach 800-1000 mesh, solve the gap of ultrafine powder on the market, at the same time in the process of pulverizing, can cent gives two level area (that is, the common grade and superfine grade), equipment design is reasonable, low loss, low noise, no pollution, simple operation, once listed on the wood powder machine market occupy the leading position
Super fine wood powder machine in the market is also known as "high fineness wood powder machine", high fineness wood powder machine integrated at home and abroad a variety of crushing principles, is a collection of a variety of grinding principles as one of the efficient energy-saving wood powder mill.In addition, the machine is made fine, high processing technology, the use of a double-layer body, the body is injected with tap water to play the role of water cooling, into a new material, sound insulation, heat function, so the fiber mill in the production and use of small noise, no vibration.The high fineness wood powder machine is beautiful in appearance, strong and durable, high in output, and more than 50% more efficient than the traditional wood powder machine. It is an ideal pulverizing equipment that can not be replaced by any crushing equipment, filling the gap in the market.
Fineness regulation
1. Fineness: 30--300 mesh can be adjusted at will. The yield and fineness vary according to the proportion of materials.With the main motor can be large or small, according to the output of the material fineness.
2. The machine is equipped with a air volume regulator, which can adjust the air volume, the air volume with high fineness and low fineness and the air volume with small fineness can be continuously produced when adjusted to the ideal fineness.
3. There is a fineness analyzer inside the body. After loosening the bolts on the analyzer, move the fineness up to increase and the fineness down to decrease, adjust it to the fineness you need, then the fixing bolts can be produced.
| Model NO. | 550 | 850 | 950 | 1000 |
| (water-cooling double chamber) | ||||
| Power (kw) | 11-18.5 | 22-30 | 45-55 | 90-110 |
| Rotate speed (r/min) | 3600 | 3300 | 2900 | 2900 |
| Number of cutter | 36 | 72 | 96 | 192 |
| Degree of fineness (mesh) | 10-500 | 10-500 | 10-500 | 10-500 |
| Feeding particle size(mm) | <30-35mm | <30-40mm | <40-50mm | <50-60mm |
| Material Moisture | <6% | <6% | <6% | <6% |
| Weight(kg) | 1600 | 2600 | 3800 | 9200 |
| Dimension(m) | 4.5×1.8×3.5 | 7×2.5×4.3 | 7×2.8×4.3 | 12*3.5*5.5 |
With the extension of the service time,The machine may fail as follows: the work is weak when crushing;Do not start;No electricity.Under normal circumstances can be self-maintenance.
First of all, check the power socket, plug, power cord whether there is no oxygen off, broken place, if not, you can plug in the power test machine, when the motor is powered on does not turn, gently dial the wheel disc can turn, it can be concluded that one of the two start capacitance of the machine caused by capacity failure.In this case, we usually have to change new products.The other case is the power does not rotate, but the external force can rotate but the motor gives out a weak current sound, which is caused by slight leakage of the starting capacitor.If the current noise is too large, the motor cannot be started at all. It is concluded that it is caused by the short circuit of the starting capacitor (the short circuit of the motor coil needs professional repair).In the absence of professional instruments, the capacitors (4UF/400V) can be removed first, and the two leads can be plugged into the zero and fire sockets of the mains power respectively to charge the capacitors, and then the two leads can be removed to short-circuit and discharge.If the discharge spark can be issued at this time and there is a loud "snap", the capacitor can be used;If spark and noise are weak, it indicates that the capacity of the capacitor has been reduced. You need to replace it or add a small capacitor.If the capacitor has been damaged short circuit can not be used, and must be replaced with the same specifications can be repaired.Another type is the rod mill high speed crusher, this crusher general quality is not easy to damage, and the daily maintenance is more important, the following is the maintenance of this type of crusher.Check the lubrication condition of the bearing
