Wood Powder Mill The rate of acceptability could be 100%, no residue, unnecessary for provide any drying equipment.
Wood powder machine is used for light weight materials, fiber materials, brittle materials, ductile materials and other special difficult grinding equipment.There are two crushing methods of wood flour mill, namely horizontal hammer mill and vertical roller mill

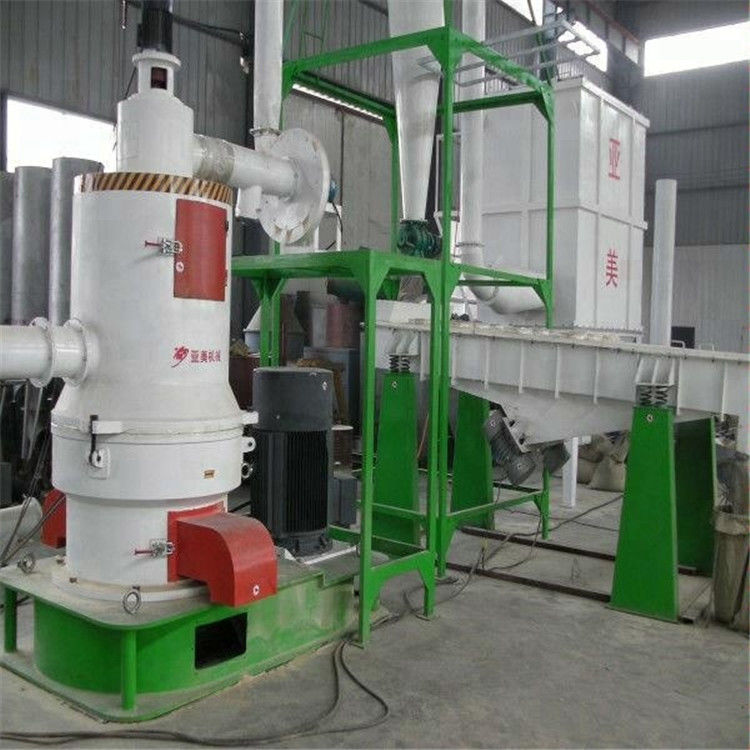

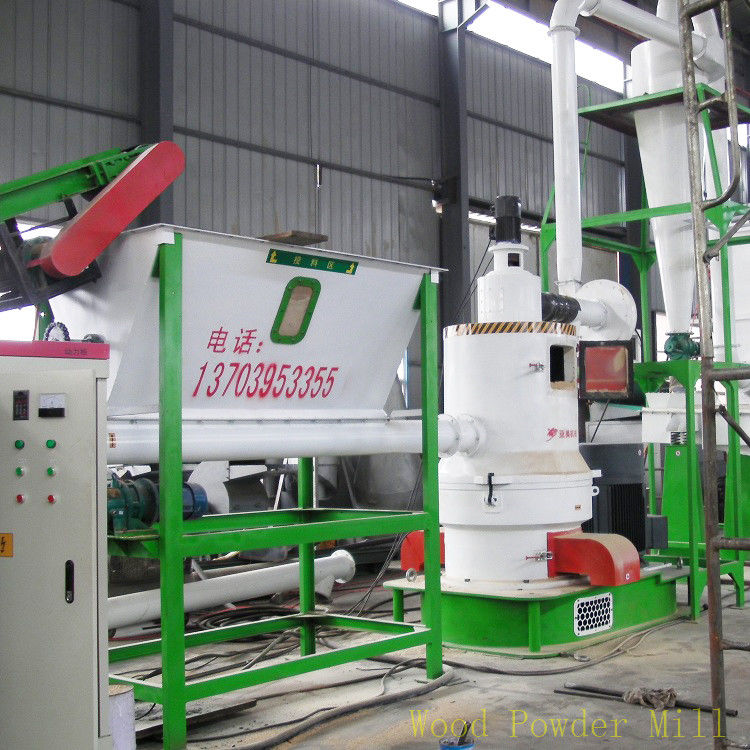

Ym-950 wood flour mill is a series of vertical roller mill series products developed by introducing German technology. It is a new type of superfine wood flour machine production line equipment with good crushing effect, high output and product fineness that can be adjusted at will.
Suitable for: tooth material, dye, leather, mica, fine cotton, sea products, seasoning, feed, rice husk, corn core, peanut shell, fruit shell, rice bran, pesticide, charcoal, hard foam, fine tire wire, etc.
principle of operation

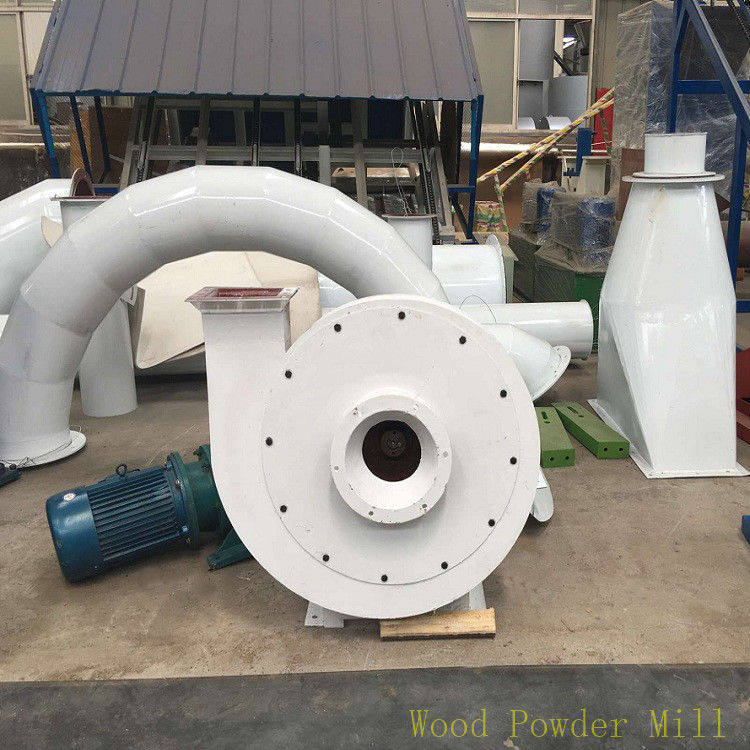

After rough crushing, the material is transported to the grinding chamber of the main machine by the feeding device. The material and the high-speed rotating device and particles collide, collide, shear and squeeze each other to realize ultra-fine grinding. The crushed materials are transported to the impeller classification area by the rising air flow. Under the action of the centrifugal force of the grading wheel and the suction force of the fan, the coarse and fine particles are separated. The qualified fine powder is collected by the cyclone collector, and the unqualified materials are returned by the internal classifier. The crushing cavity is crushed again.
| Model NO. | 550 | 850 | 950 | 1000 |
| (water-cooling double chamber) | ||||
| Power (kw) | 11-18.5 | 22-30 | 45-55 | 90-110 |
| Rotate speed (r/min) | 3600 | 3300 | 2900 | 2900 |
| Number of cutter | 36 | 72 | 96 | 192 |
| Degree of fineness (mesh) | 10-500 | 10-500 | 10-500 | 10-500 |
| Feeding particle size(mm) | <30-35mm | <30-40mm | <40-50mm | <50-60mm |
| Material Moisture | <6% | <6% | <6% | <6% |
| Weight(kg) | 1600 | 2600 | 3800 | 9200 |
| Dimension(m) | 4.5×1.8×3.5 | 7×2.5×4.3 | 7×2.8×4.3 | 12*3.5*5.5 |
The failure of Mill during use can be handled as follows:
Collapse common faults one
No powder or low output, low yield
The reasons are as follows: (1) The powder locker is not adjusted properly and the seal is not strict, resulting in powder sucking. (2) Large blade wear, material can not afford shovel.
Remedy: (1) Check and adjust the lock of the powder locker. (2) Replace the new blade.
Raymond
Collapse common fault two
The finished powder is too thick or too fine
The reasons are as follows: (1) The blades of the analyzer are seriously worn and cannot be classified. (2) The air volume of the fan is not appropriate.
Remedy: (1) Change the length of the blade properly. Close the air flow of the small fan. (2) Too fine should increase the imported air volume.
Collapse common fault three
The host current rises and the fan current drops
The reasons are as follows: (1) Excessive feeding, air ducts are blocked by powder, the exhaust of the pipeline is not smooth, the circulating current is heated to make the main current, the temperature of the engine increases, and the fan current drops.
Exclusion methods: (1) reduce the amount of feed, clear air duct powder. (2) Open the large surplus duct valve, the temperature of the incoming material is controlled below 6°C.
