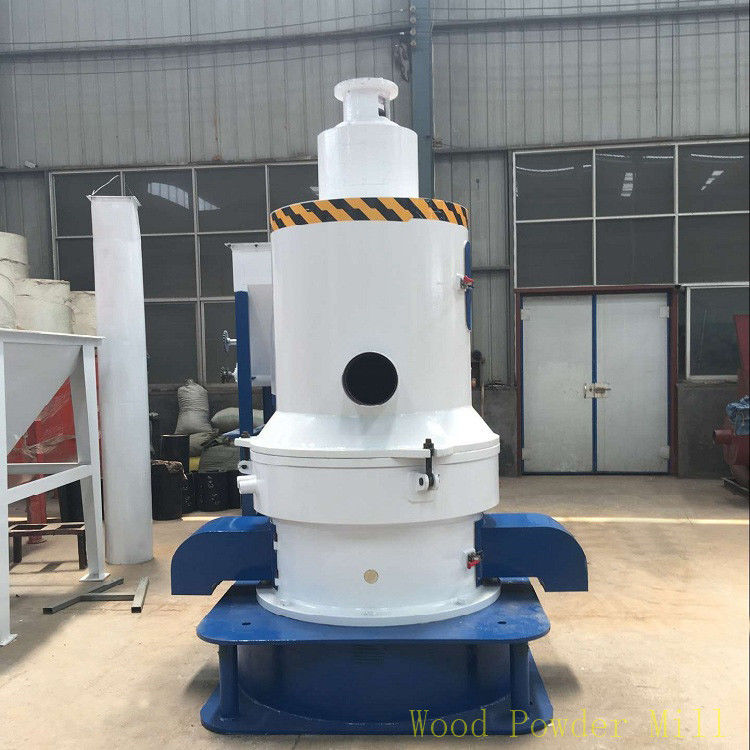

Wood Powder Machine Is Beautiful In Appearance And More Than 50% More Efficient Than The Traditional Wood Powder Machine
Super fine wood powder machine in the market is also known as "high fineness wood powder machine", high fineness wood powder machine integrated at home and abroad a variety of crushing principles, is a collection of a variety of grinding principles as one of the efficient energy-saving wood powder mill.In addition, the machine is made fine, high processing technology, the use of a double-layer body, the body is injected with tap water to play the role of water cooling, into a new material, sound insulation, heat function, so the fiber mill in the production and use of small noise, no vibration.The high fineness wood powder machine is beautiful in appearance, strong and durable, high in output, and more than 50% more efficient than the traditional wood powder machine. It is an ideal pulverizing equipment that can not be replaced by any crushing equipment, filling the gap in the market.
Characteristics of vertical roller mill
1. Compared with other roller mills, the yield is increased by 20-30% under the same dynamic condition, and the rolling pressure of the grinding wheel on the material is increased by 60-80% under the effect of high pressure centrifugal force;The yield of hammer mill is improved by 150~300%
2. Energy saving: under the condition of the same output and fineness index, the energy consumption of pulverized sawdust materials is only about 1/3 of that of air grinding;
3. Good fineness index: when pulverizing sawdust materials, the fiber is good, and the fineness can reach 200~350 mesh.
4, equipped with a graded impeller stepless governor, do not need to stop the product size can be adjusted, and fine powder can be all recovered, not pollution of the environment.
| Model NO. | 550 | 850 | 950 | 1000 |
| (water-cooling double chamber) | ||||
| Power (kw) | 11-18.5 | 22-30 | 45-55 | 90-110 |
| Rotate speed (r/min) | 3600 | 3300 | 2900 | 2900 |
| Number of cutter | 36 | 72 | 96 | 192 |
| Degree of fineness (mesh) | 10-500 | 10-500 | 10-500 | 10-500 |
| Feeding particle size(mm) | <30-35mm | <30-40mm | <40-50mm | <50-60mm |
| Material Moisture | <6% | <6% | <6% | <6% |
| Weight(kg) | 1600 | 2600 | 3800 | 9200 |
| Dimension(m) | 4.5×1.8×3.5 | 7×2.5×4.3 | 7×2.8×4.3 | 12*3.5*5.5 |
Fineness regulation
1. Fineness: 30--300 mesh can be adjusted at will. The yield and fineness vary according to the proportion of materials.With the main motor can be large or small, according to the output of the material fineness.
2. The machine is equipped with a air volume regulator, which can adjust the air volume, the air volume with high fineness and low fineness and the air volume with small fineness can be continuously produced when adjusted to the ideal fineness.
3. There is a fineness analyzer inside the body. After loosening the bolts on the analyzer, move the fineness up to increase and the fineness down to decrease, adjust it to the fineness you need, then the fixing bolts can be produced.
Note: Correct and reasonable troubleshooting can effectively improve the service life of machines and improve the working efficiency of machines. Refer to Machine's instruction manual for troubleshooting.
Noted: flammable and explosive materials prohibited to crushing!
