Introduce:

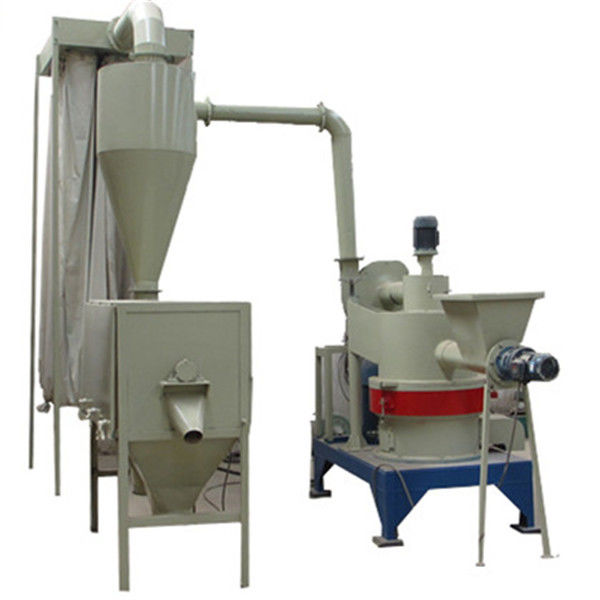

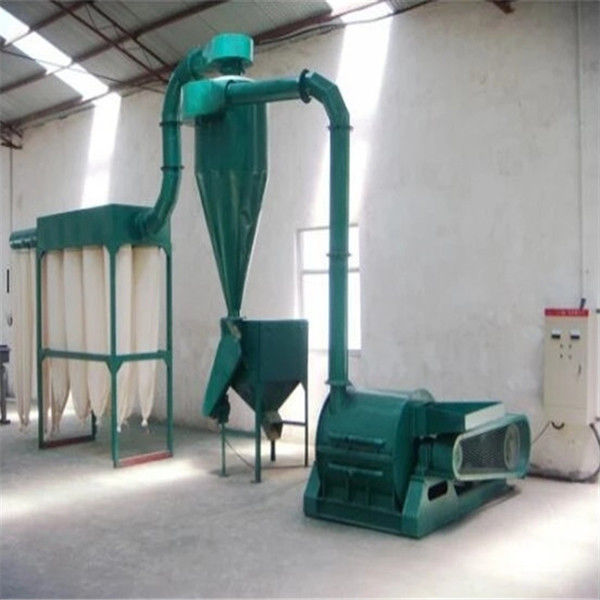

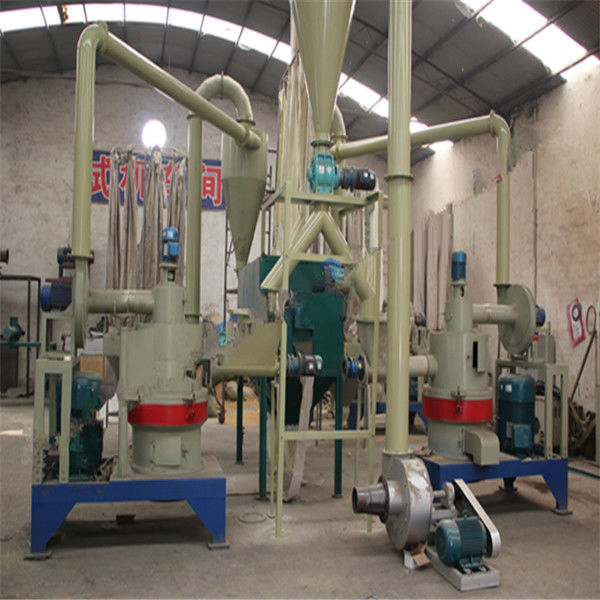

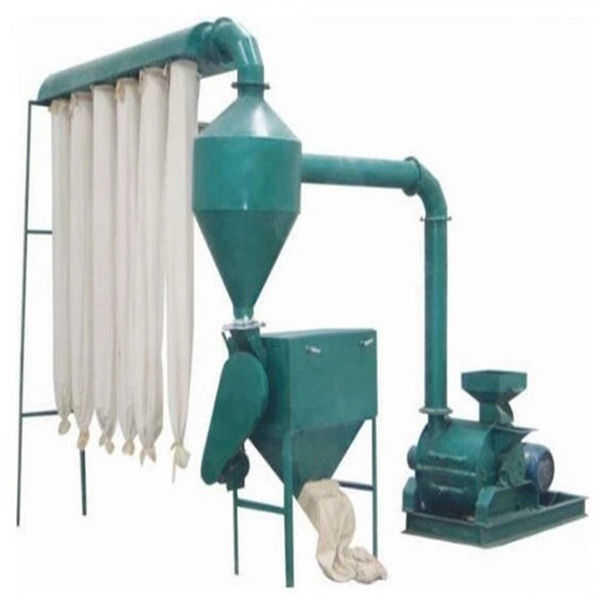

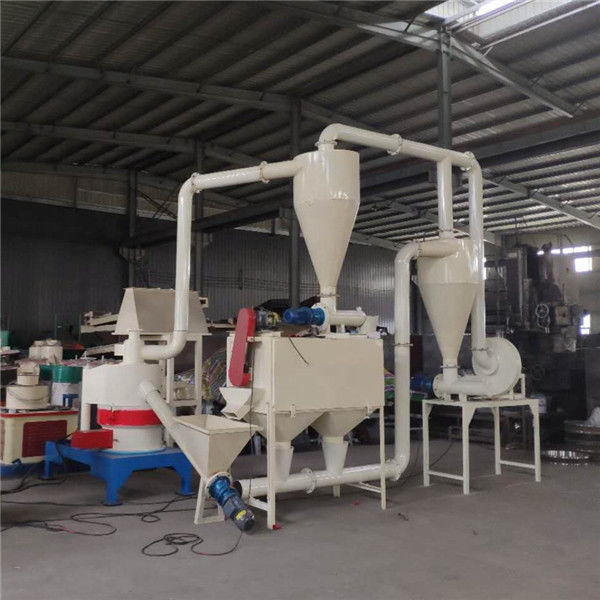

Wood powder machine is a kind of mechanical equipment specialized in the production of high-quality wood flour. Wood powder machine is mainly composed of host, motor, feeder, analyzer, cyclone separator and other devices.The whole machine is made of high-quality steel, which is beautiful and durable.
The wood powder machine is fine in production and high in processing technology. It adopts a double-layer body. Tap water is injected into the machine body to play a water-cooling role. A new type of material is installed to achieve the function of sound insulation and heat dissipation. Therefore, the machine in the production and use of small noise, no vibration, less dust characteristics.
Wood flour machine is suitable for: wood flour, wood bran, bamboo powder, chestnut skin powder, elm powder, wood particles, sawdust, skin grain, camphor wood powder, cypress wood powder, shrimp powder, star anise powder, pepper powder, pepper powder, refined cotton, feather, feather stalk, straw, wheat bran, rice husk, sticky wood, potato residue, cassava, Chinese herbal medicine, fish meal, cake, magnesium silicate trihydrate and other fiber materials Work. It is an indispensable wood crushing equipment for bakelite, plastic, papermaking, mosquito repellent incense, sanitary incense, feed, Chinese herbal medicine, breeding and other industries.
Advantage:
The wood flour machine is mainly composed of main engine, motor, sarclone, analyzer and cyclone separator. The whole machine is made of high-quality steel, which is beautiful and durable.
The wood flour machine is fine in production and high in processing technology. It adopts a double-layer body. Tap water is injected into the machine body to play a water-cooling role. A new type of material is installed to achieve the function of sound insulation and heat dissipation. Therefore, the machine in the production and use of small noise, no vibration, less dust characteristics.
Working principle:
The wood flour machine adopts blade cutting and grinding. In the grinding process, the rotor generates high-speed air flow, which rotates with the blade direction. The material accelerates in the air flow and repeatedly impacts, cuts and rubs. At the same time, it is subject to three kinds of crushing effects. The crushed material enters the analyzer with the airflow for analysis. Due to the centrifugal force of the analyzer rotor and the centripetal force of the air flow, when the material is crushed, it will be affected by the centripetal force of the air flow When the centrifugal force is greater than the centripetal force, the fine particles will enter the powder collector to collect with the air flow, and the coarse particles will enter the centrifugal regrinding chamber to continue crushing until the fineness to your satisfaction is reached.
Technical Parameters:
| Model | TYMF500 | TYMF800 | TYMF900 | TYMF6R-600 | TYMF6R-1000 |
| Double charmber can be cooling by water or nitrogen ect. | |||||
| Knife(pcs) | 36 | 72 | 96 | 6 | 6 |
| Power(kw) | 18.5 | 30 | 55 | 30 | 55 |
| Sieving machine(kw) | 1.1 | 3 | 5.5 | 3 | 5.5 |
| Max feeding size(mm) | 10 | 15 | 20 | 5 | 10 |
| Rotating speed(r/min) | 3200 | 3200 | 2900 | 380 | 380 |
| Out size(mesh) | 10-120 | 60-325 | |||
| Capacity(kg/h) | 50-150 | 100-300 | 200-550 | 100-250 | 200-600 |
| Dimension(m) | 6*1.5*3.5 | 6*1.8*3.5 | 7*2.2*4 | 5*2.5*4 | 9*4*4.5 |
| Knife Price(per piece) | 30 | 30 | 30 | 800 | 2400 |
