Introduction of internal combustion type multifunctional dryer:
Internal combustion multi-functional dryer, also known as sawdust dryer and shaving dryer, is to continuously add particles and flake wet materials into the drying pipe by screw conveyor. In the transportation and dispersion of high-speed hot air, the moisture in wet materials is evaporated to obtain powder or granular dry products. It is mainly composed of air heater, feeder, air drying pipe, cyclone separator and fan.
The internal combustion multifunctional dryer adopts a new type of heat conduction tube structure, which greatly increases the heating area of materials, and ensures that the materials are heated evenly. Up to 85% of all kinds of powder and dregs can be dried, such as feed, fish meal, bean dregs, sawdust, wood flour, Brewer's grains, alcohol lees, fruit dregs, medicine residues, pond dregs, starch residues, etc.
Technical parameters of internal combustion type multifunctional dryer
| Model | NRS1.5*12 |
| Gradient(％) | 3-5 |
| Speed(r/min) | 3-10 |
| Number of columns | 8-11 |
| Intake air temperature(℃) | ≤800 |
| Power(kw) | 23.5 |
| Weight of the whole machine(kg) | 12300 |
| Shape size(mm) | 12000*1500*2500 |
| Capacity | The output is related to the moisture content of the material |

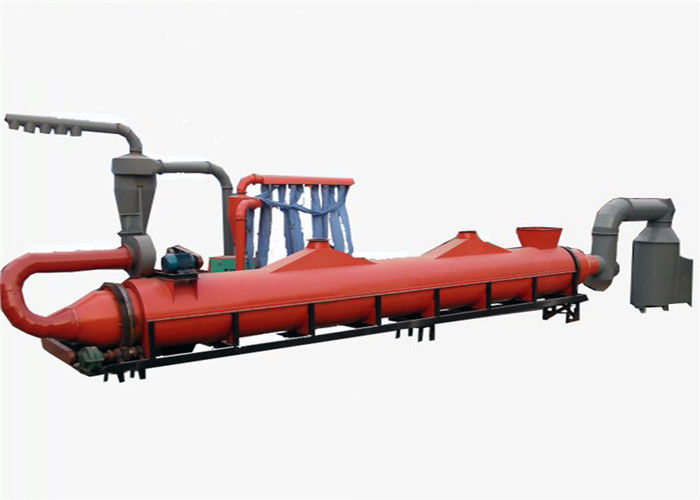

Picture of internal combustion type multifunctional dryer
Working principle of internal combustion type multifunctional dryer:
The hot air stove, feed port, rotary cylinder, filter tube, material conveying pipe, cooling tube and discharge port of the internal combustion multifunction dryer are located on the active roller. The active roller drives the rotating drum to rotate at low speed by motor and deceleration drive. The feed port is set between the heat generating furnace and the rotating drum, and the rotary drum is equipped with stir fried blade, and the rotary drum is connected with the filter drum There is a baffle plate, and a small hole is opened on the baffle plate.
One end of the filter cylinder is connected with the rotating cylinder, the other end is connected with the material conveying pipe, and the filter cylinder is equipped with a block, and the bottom of the filter cylinder is equipped with slag discharge hole. One end of the cooling drum is connected with the material conveying pipe through a blower, and the other end is connected with the discharge port. Because of the above structure, the material can be dried in the rotating cylinder.
Packing & Delivery
Advantage of internal combustion type multifunctional dryer:
1. Large capacity and high thermal efficiency, which can quickly reduce the moisture content of materials in a short time.
2. High efficiency and energy saving: the top of the equipment has a forced moisture outlet, which can discharge water vapor from the top in real time to avoid secondary contact with materials.
3. The internal combustion multifunctional dryer has the advantages of simple structure, small floor area and easy construction and maintenance.
4. Indirect heating: the material is heated indirectly by heat pipe to avoid the pollution of smoke and dust, and the dried material is clean and original.
The internal combustion multifunctional is the most ideal drying equipment in the market. It can dry up to 85% of all kinds of powder and dregs, such as feed, fish meal, soybean dregs, sawdust, wood powder, beer grains, alcohol grains, fruit dregs, drug dregs, pond slag, starch residue, etc. The drying volume is large and the efficiency is high. The dried materials are clean and keep the original ones. After cooling, they can be packed and stored.
After Sales Service
1. One year for machinery warranty.
2. We have the cheap spare parts supply.
3. We can sent engineer to install and maintain on site.
