Introduction of the multifunctional sawdust dryer:
The internal combustion multifunctional dryer is widely used in: straw briquetting fuel, charcoal, sawdust particles, sawdust, agriculture and animal husbandry industries, corn straw, soybean, cotton straw, wheat straw, sorghum stalk, sawdust, sawdust, ginkgo leaf, mulberry leaf, quartz sand, bean residue, sawdust, distiller's grains, sand, grain and other materials.
Internal combustion multifunctional particle dryer is mainly composed of air heater, feeder, airflow drying pipe, cyclone separator, fan, etc. It is a process of continuously adding the powder like wet sawdust into the drying pipe by screw conveyor. In the transportation and dispersion of high-speed hot air flow, the moisture in the wet material is evaporated to obtain powder or granular dry products.
Technical parameters of multifunctional sawdust dryer
| Model(m) | NRS1.3*12 |
| Gradient(％) | 3-5 |
| Speed(r/min) | 3-12 |
| Number of columns | 8-11 |
| Intake air temperature(℃) | ≤700 |
| Power(kw) | 18 |
| Weight of the whole machine(kg) | 9500 |
| Shape size(mm) | 12000*1100*2500 |
| Capacity | The output is related to the moisture content of the material |

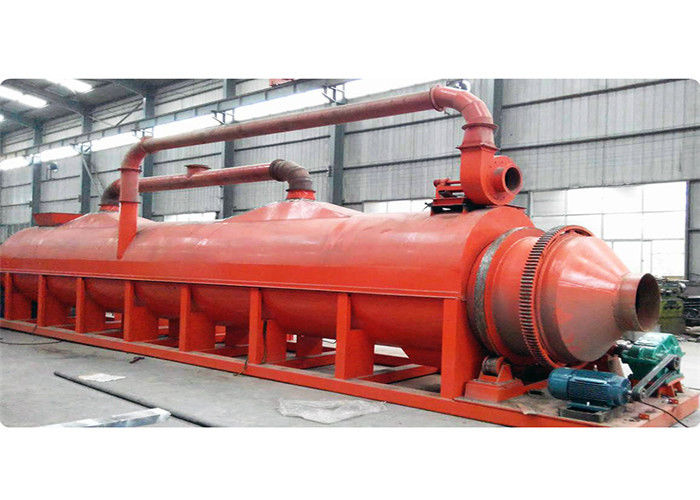

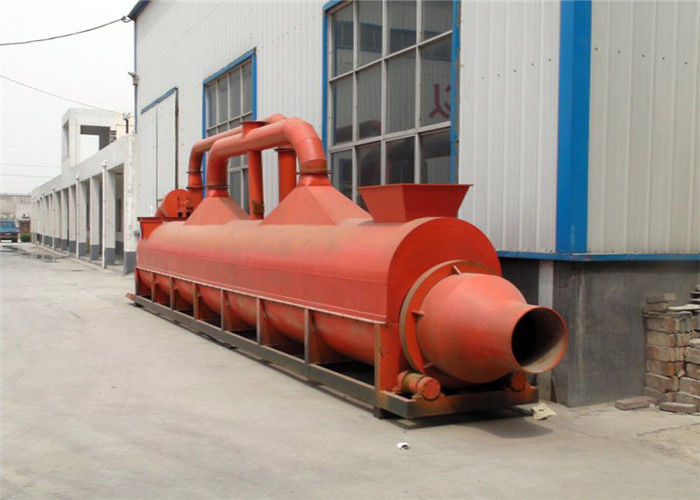

Pictures of multifunctional sawdust dryer:
Working principle of multifunctional sawdust dryer:
it includes heating furnace, feeding port, rotating cylinder, filter cylinder, material conveying pipe, cooling cylinder and discharge port. The rotating cylinder is located on the driving roller, which is driven by the motor and deceleration drive to rotate at a low speed. There is a feeding port between the heat generating furnace and the rotating cylinder, and there are stir frying blades in the rotating cylinder. A baffle plate is set at the connection between the rotating cylinder and the filter cylinder 4, and the baffle plate is opened on the baffle There is a small hole, one end of the filter cylinder is connected with the rotating cylinder, the other end is connected with the material conveying pipe, the filter cylinder is provided with a stop block, the bottom of the filter cylinder is provided with a slag discharge hole, one end of the cooling cylinder is connected with the material conveying pipe through a blower,and the other end is connected with the material outlet.
As a result of the above structure, the material can be fully dried in the rotating drum, and the material is fully dispersed again before entering the material conveying pipe, so that the moisture can evaporate quickly. The stopper can block the impurities in the material and ensure the quality of sawdust entering the material conveying pipe. The sawdust enters the sawdust dryer, and the material boils and fluidizes in the cylinder through the joint action of the spray pipe and the rotary cylinder, and the hot air fully contacts with the material to complete the drying. The utility model has the advantages of simple structure, convenient use and the like.
Advantages of multifunctional sawdust dryer:
1. Due to the high dispersion of materials in the air flow, all surfaces of the particles are the effective drying area;
2. Short drying time;
3. The air dryer has simple structure, small floor area and easy construction and maintenance;
4. Large capacity and high thermal efficiency. When the unconjugated water is dried, the thermal efficiency can reach 60%.
The internal combustion multifunctional sawdust dryer machine has the advantages of large capacity, high thermal efficiency, quick reduction of material moisture in a short period of time, and the dried sawdust, wood flour, shavings and other materials are clean and keep the original.
After Sales Service
1. One year for machinery warranty.
2. We have the cheap spare parts supply.
3. We can sent engineer to install and maintain on site.
