Wood Shavings 450mm 80% Sawdust Dryer Machine

Wood Shavings 450mm 80% Sawdust Dryer Machine

  • High Light

    450mm Sawdust Dryer Machine

    ,

    80% Sawdust Dryer Machine

    ,

    450mm rotating drum dryer

  • Name
    Airflow Dryer
  • Condition
    New
  • Capacity
    500-3200t/h
  • Color
    White,green
  • Power
    6.25kw-50.2kw
  • Application
    Drying Wood Sawdust,straw,cotton Stalk
  • Warranty
    One Year
  • Weight
    1550kg-11000kg
  • Place of Origin
    CHINA
  • Brand Name
    TianYuan
  • Certification
    CE,ISE
  • Model Number
    Airflow Dryer
  • Minimum Order Quantity
    1 Set
  • Price
    $10,000.00 - $15,500.00 / Set
  • Packaging Details
    Biomass wood chips shaving sawdust rotary dryer packed in wooden case or customized
  • Delivery Time
    7-30 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    30 Sets per month

Wood Shavings 450mm 80% Sawdust Dryer Machine

Airflow Dryer Machine Drying Wood Sawdust,Straw,Cotton Stalk,Wheat Straw,Wood Shavings

Introduction of airflow dryer machine


Airflow dryer widely used in straw briquette fuel, charcoal machine, sawdust pellet fuel, sawdust briquetting, agriculture and animal husbandry projects and other industries.As a drying equipment for drying wood sawdust,straw,cotton stalk,wheat straw,wood shavings,or agricultural waste to production Pellets,briquette as biomass fuels.



Airflow dryer uses the principle of instantaneous air drying, It has the advantages of high drying intensity, short drying time, less energy consumption, simple operation and good product quality. The starch dried by this equipment has the advantages of clean appearance, luster, high fineness, stable moisture content and small impurity pollution. The air dryer is suitable for drying powdery, flake and heat sensitive materials in starch, rice flour, food, medicine, chemical industry and other industries The equipment can achieve the best economic benefits with the least investment, the lowest energy consumption, the least manpower and site, and the fastest speed.



The new type of high-yield and energy-saving air dryer is a new type of air drying equipment which is improved on the basis of the original air dryer. It has been greatly improved in structure and performance, and has been highly recognized by users. What's more, the new type of air dryer can freely deform and combine according to the needs of production.



Technical parameters of airflow dryer machine

Model TYHG450 TYHG650 TYHG950 TYHG1300
Dryer diamter(mm) 450 650 950 1300
Feeding size(mm) 2-20 2-20 2-20 2-20
Feeding moisture content(%) 10%-80% 10%-80% 10%-80% 10%-80%
Diacharge moisture content(%) 5% 5% 5% 5%
Capacity(t/h) 500 1200 2000 3200
Power(kw) 6.25 21.5 34.4 50.2
Weight(kg) 1550 5500 7500 11000
Installation(m) 6*1.5*4 8*1.5*4 15*2.5*5 20*4*5



Working principle of airflow dryer machine:


The raw materials enter the furnace through the pipe through the feed port, and the hot air around the pipe is pumped to saklone Li by the fan together with the hot air. The dried materials are discharged from the sand clone, and the waste hot gas and steam are discharged from the sand clone.



Operating procedures:
1. After installation, turn on the fan and check whether the fan rotation direction and feeding port suction are normal.
2. Check the flange joints to see if there is air leakage.
3. The cloth bags with opening at both ends are tied at the discharge port of the separator.
4. When the material to be dried is added into the feeding port, large particles must be screened out before drying, which is conducive to improving the drying speed.
5. Fuel is added into the furnace to ignite, and the fan is turned on. When the temperature at the air outlet reaches 150 ℃, the material is cut and dried.

6. Remove the large pieces of material at the slag outlet in time to facilitate feeding.

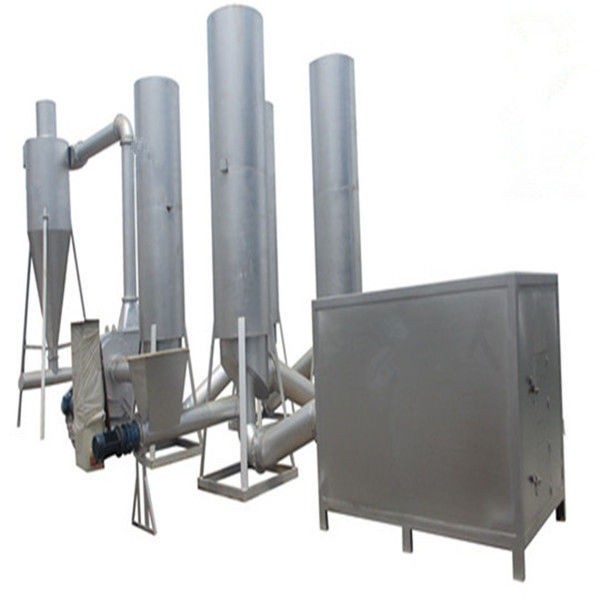

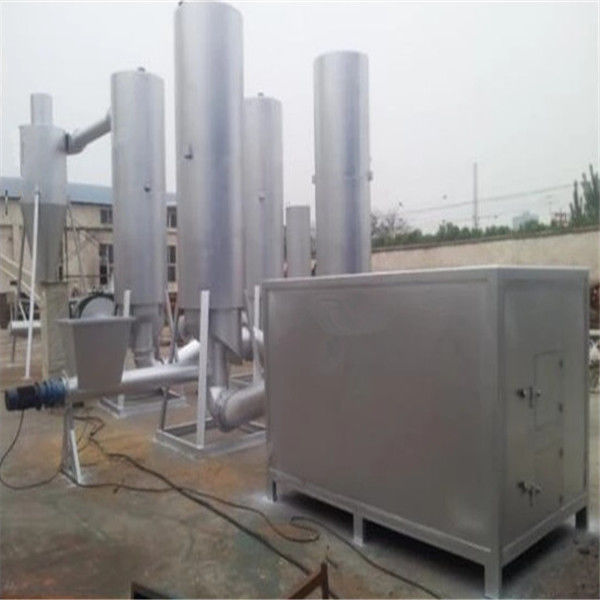

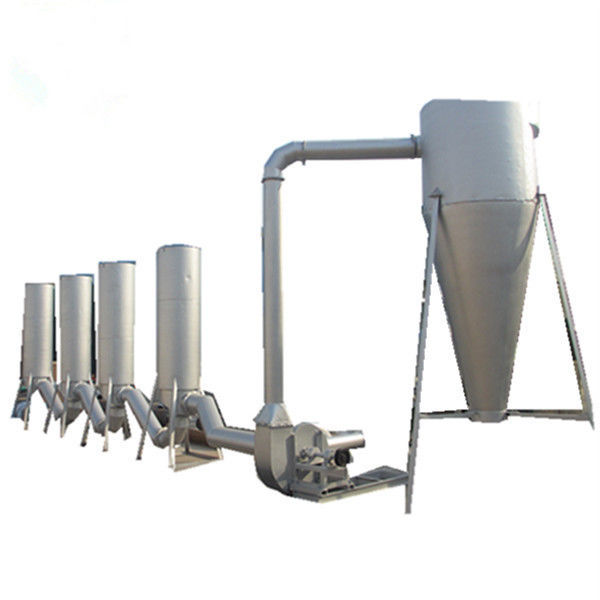

Wood Shavings 450mm 80% Sawdust Dryer Machine 0Wood Shavings 450mm 80% Sawdust Dryer Machine 1Wood Shavings 450mm 80% Sawdust Dryer Machine 2
