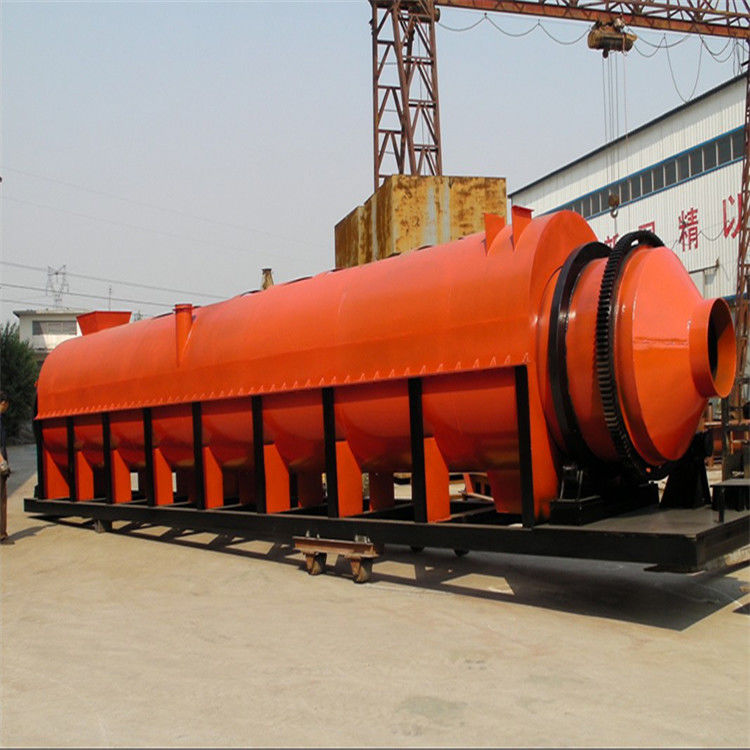

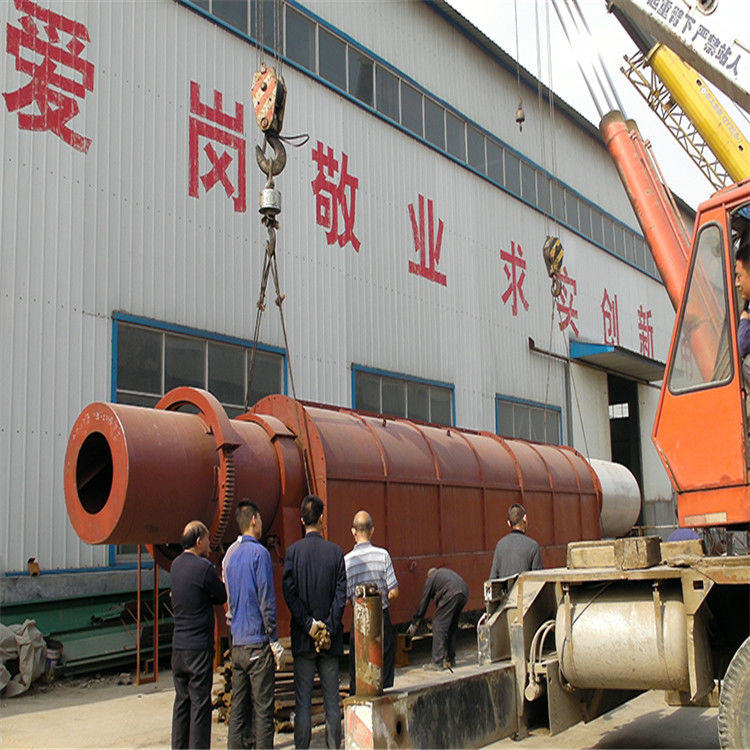

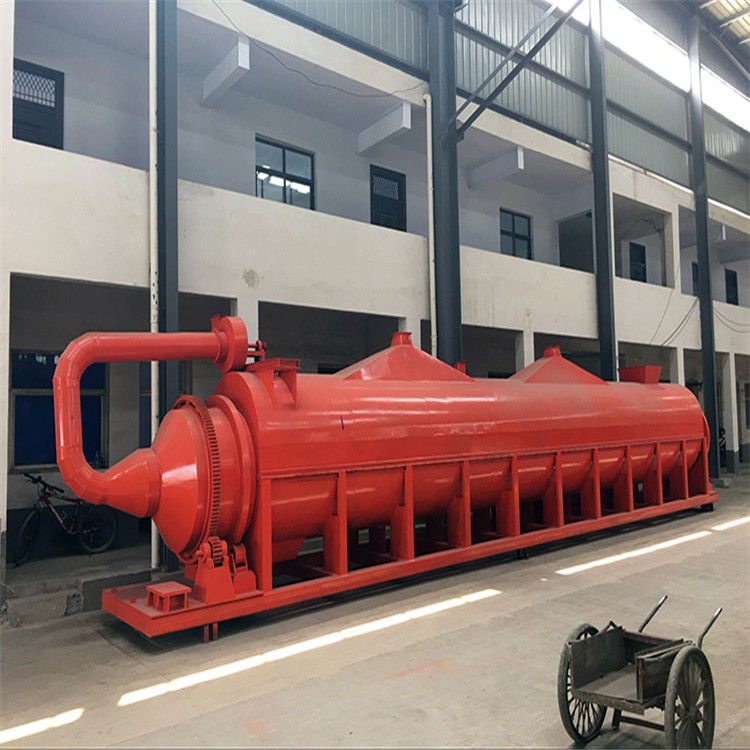

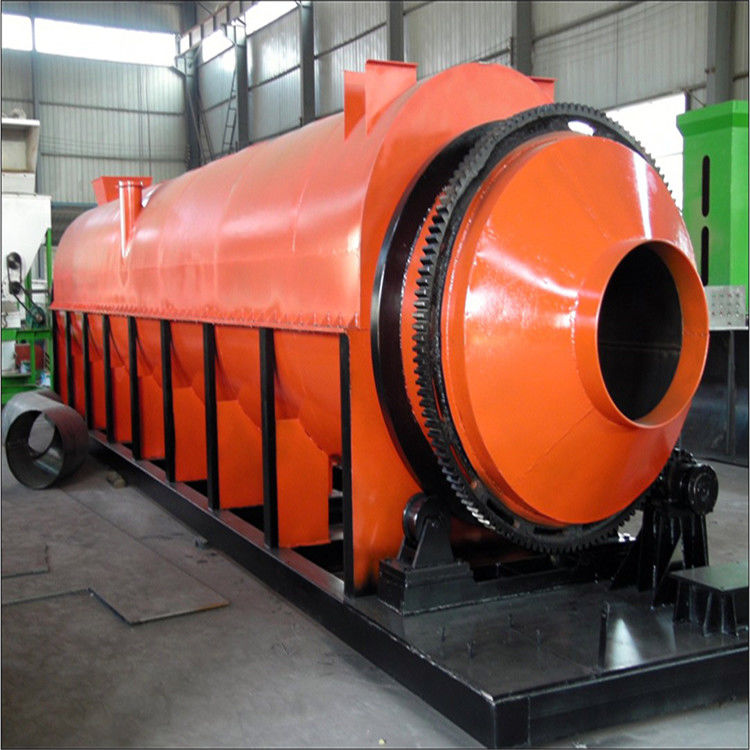

Internal Combustion Dryer With Thermal Efficiency Up To 60%
Widely Used Internal Combustion Brewers Grain Rotary Dryer
Application:
Thermal tube type sawdust dryer widely used in fish meal, blood meal, bean dregs, beer bad sawdust, fruit, slag, corn germ bread, animal waste materials and humidity etc of drying, sterilization, have reduce costs, to save energy, technology is reasonable, compact structure, convenient installation, simple operation, wide suitability, versatility, and other features, It is an ideal drying equipment for feed industry
| Model NO |
Gradient (%) |
Spindle Speed(r/min) | Enumerate the tube number |
Into highest temperature (℃) |
Power (kw) |
| 1.3*12 | 3-5 | 3-8 | 8 | ≤700 | 5.5 |
| 1.3*15 | 3-5 | 3-8 | 10 | ≤700 | 7.5 |
| 1.8*12 | 3-5 | 3-8 | 8 | ≤850 | 11 |
| 1.8*15 | 3-5 | 3-8 | 10 | ≤850 | 15 |
|
Efficiency(t/h) |
Output has definitely relation with the material moisture content |
||||
|
Remarks |
Output and the heat source have certain relation |
||||
Operational approach
1. Fixed the main engine followed the layout, connect all pipes and fan
2. Connect the circuit of the distribution box.
3. Check all parts and screws
4. Check all lubricant housings parts
5. Pilot run with empty machine, check the forward and reverse of the motor.
6. Connect all accessories (feeder and discharge conveyor)
7. Start operation as per the indicated button on the distribution box.
8. Enter the raw material into the engine body by conveyor
Working principle
1. This equipment internal by tens of root of heat pipe, and the material into the dryer from the top of the heat pipe down at the bottom of the equipment,
2. The bottom will be at the bottom of the heat pipe scraper plate to blow the material continuously and heat pipe contact to a drying effect.
3.This can greatly improve the material thermal contact area and heat utilization.
4. Top equipment has forced the platoon is wet machine can be drying process of a large number of water vapor in the first row of go,
5.The more water vapor separation thorough drying the faster the heat loss is lower, because it avoids the material in the drying process and water vapor contact to eliminate the material absorption water may not cause repeated drying.
6. The wood sawdust dryer is hot air circulation system, we will use up the quantity of heat of tail again into the dryer,
7.The real do heat to make full use of the effect of energy saving.
Our products are sold all over the world, you can rest assured.
